2025 Kawasaki Z900 Se ABS Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2025 Kawasaki Z900 Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

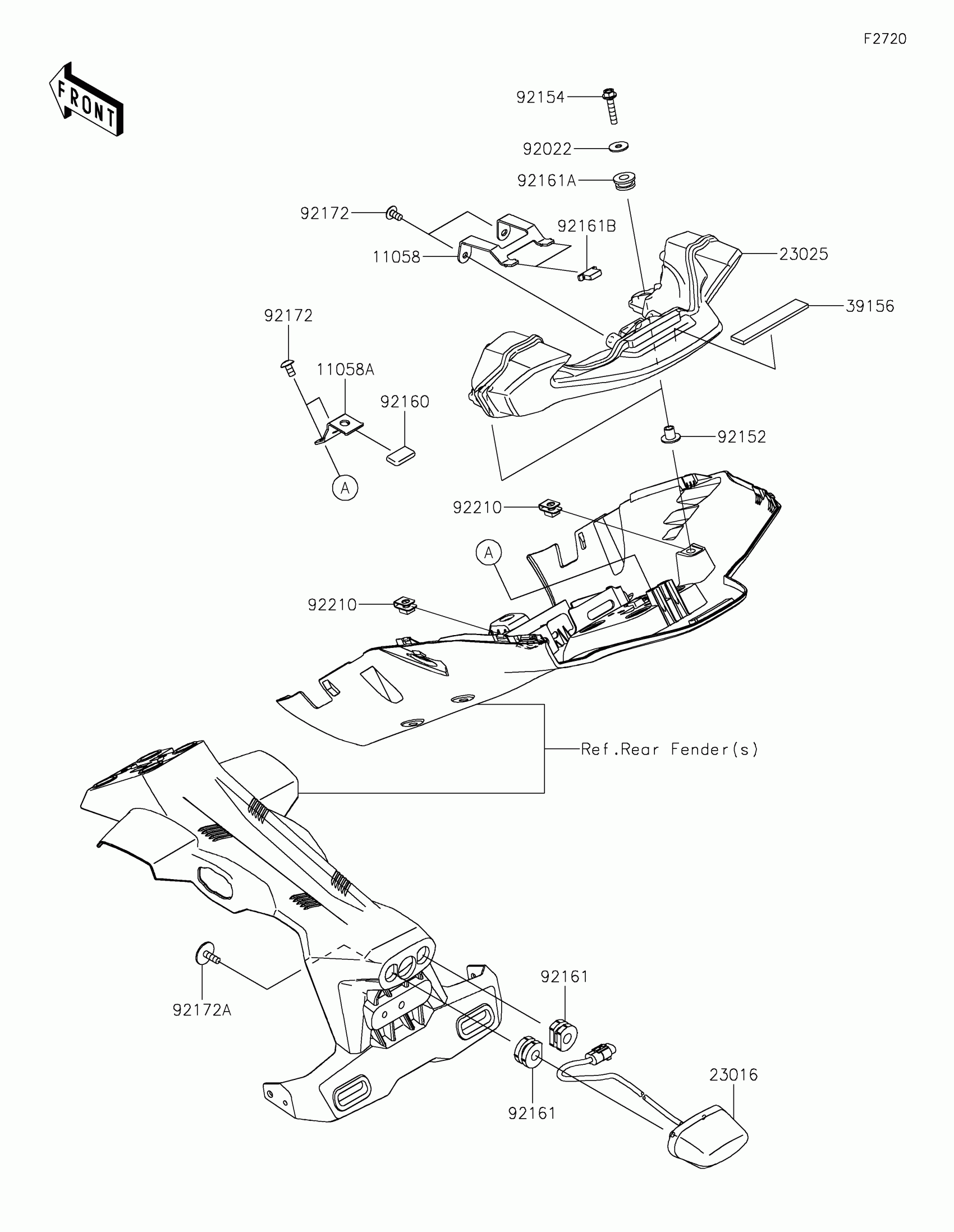

2025 Kawasaki Z900 Se ABS Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

1

$4.49

In stock

11058A

1

$2.03

In stock

23016

1

$67.09

In stock

23025

LAMP-TAIL,LED

23025-0404

1

$280.47

In stock

39156

PAD,15X76X3

39156-1928

1

$0.98

In stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92152

COLLAR

92152-1592

1
Out of stock

92154

BOLT,FLANGED,5X25

92154-0846

1

$1.10

In stock

92160

DAMPER

92160-1190

1

$3.25

In stock

92161

DAMPER

92161-0776

1

$4.39

In stock

92161A

DAMPER,8X18X8.1

92161-1369

1

$1.44

In stock

92161B

DAMPER

92161-1917

1

$1.47

In stock

92172

SCREW,5X10

92172-0864

1

$1.20

In stock

92172A

SCREW,TAPTITE,5X16

92172-1427

1

$2.58

In stock

92210

NUT,PLATE,5MM

92210-0935

1
Out of stock
