2025 Kawasaki Z900 Se ABS Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2025 Kawasaki Z900 Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

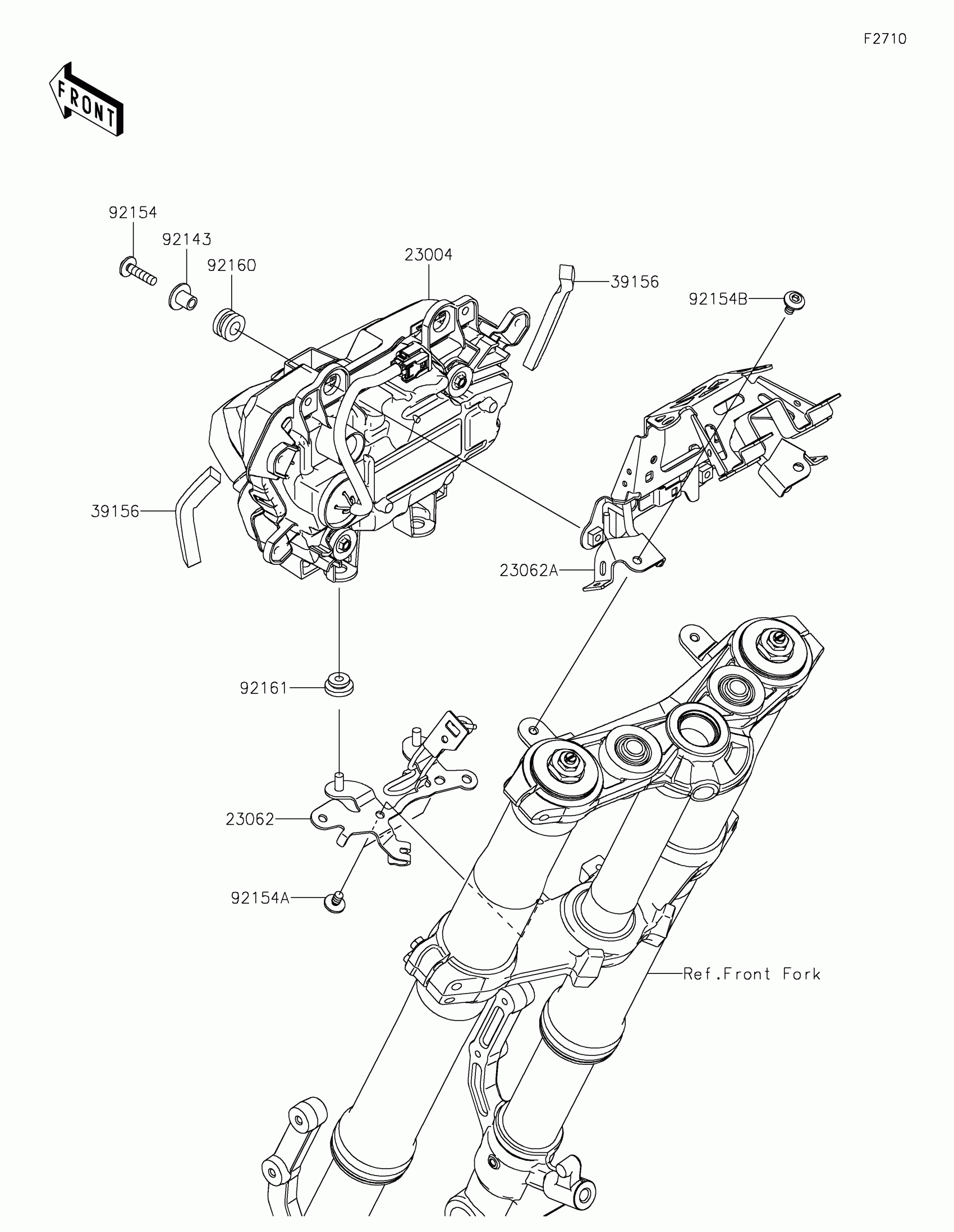

2025 Kawasaki Z900 Se ABS Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23004

LAMP-HEAD,LED

23004-0469

1

$1,192.00

In stock

23062

1

$21.17

In stock

23062A

1

$69.08

In stock

39156

PAD,110X8X10

39156-2579

1

$1.49

In stock

92143

COLLAR

92143-1353

1

$6.81

In stock

92154

BOLT,SOCKET,6X25

92154-4306

1

$1.95

In stock

92154A

BOLT,SOCKET,6X10

92154-4307

1

$1.47

In stock

92154B

BOLT,SOCKET,6X12

92154-4309

1

$2.12

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92161

DAMPER

92161-2252

1

$1.93

In stock
