2025 Kawasaki Z900 Se ABS Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2025 Kawasaki Z900 Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

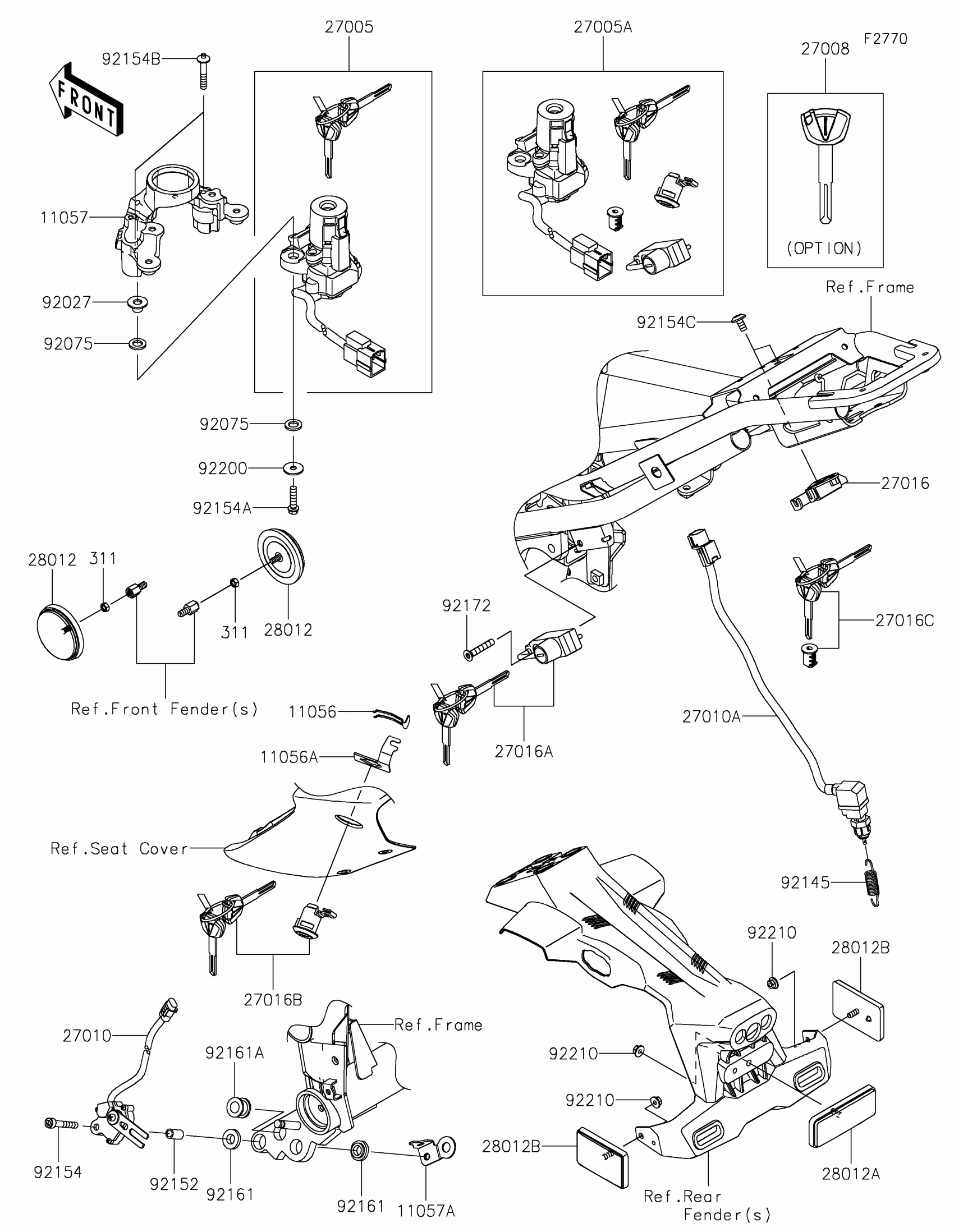

2025 Kawasaki Z900 Se ABS Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,CLASP

11056-0238

1

$4.75

In stock

11056A

BRACKET,SEAT LOCK

11056-2119

1

$3.93

In stock

11057

BRACKET,IG. SWITCH

11057-0251

1

$71.09

In stock

11057A

BRACKET

11057-0319

1

$1.27

In stock

27005

1

$162.27

In stock

27005A

1

$498.49

In stock

27008

KEY-LOCK,BLANK

27008-0662

1

$26.43

In stock

27010

SWITCH,SIDE STAND

27010-0722

1

$118.06

In stock

27010A

SWITCH,REAR BRAKE

27010-1503

1

$27.80

In stock

27016

1

$14.14

In stock

27016A

LOCK-ASSY,HELMET

27016-5423

1

$112.47

In stock

27016B

LOCK-ASSY,SEAT

27016-5424

1

$137.10

In stock

27016C

LOCK-ASSY,TANK CAP

27016-5425

1

$128.97

In stock

28012

1

$12.02

In stock

28012A

1

$21.76

In stock

28012B

REFLECTOR-REFLEX

28012-1088

1

$20.82

In stock

92027

COLLAR

92027-1045

1

$4.37

In stock

92075

DAMPER

92075-1564

1

$4.35

In stock

92145

1

$7.59

In stock

92152

COLLAR,6.5X9.5X17

92152-2274

1
Out of stock

92154

BOLT,SOCKET,6X40

92154-0505

1

$1.44

In stock

92154A

BOLT,FLANGED,6X25

92154-2154

1

$2.44

In stock

92154B

1

$3.15

In stock

92154C

BOLT,SOCKET,6X12

92154-2355

1

$1.66

In stock

92161

DAMPER

92161-0117

1

$2.36

In stock

92161A

DAMPER

92161-0118

1

$2.36

In stock

92172

SCREW,HEXLOBE,6X35

92172-0835

1

$2.44

In stock

92200

WASHER,6X20X1.6

92200-0780

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

311

NUT-HEX,5MM

311AB0500

1

$0.49

In stock
