2016 Kawasaki Z800 ABS Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

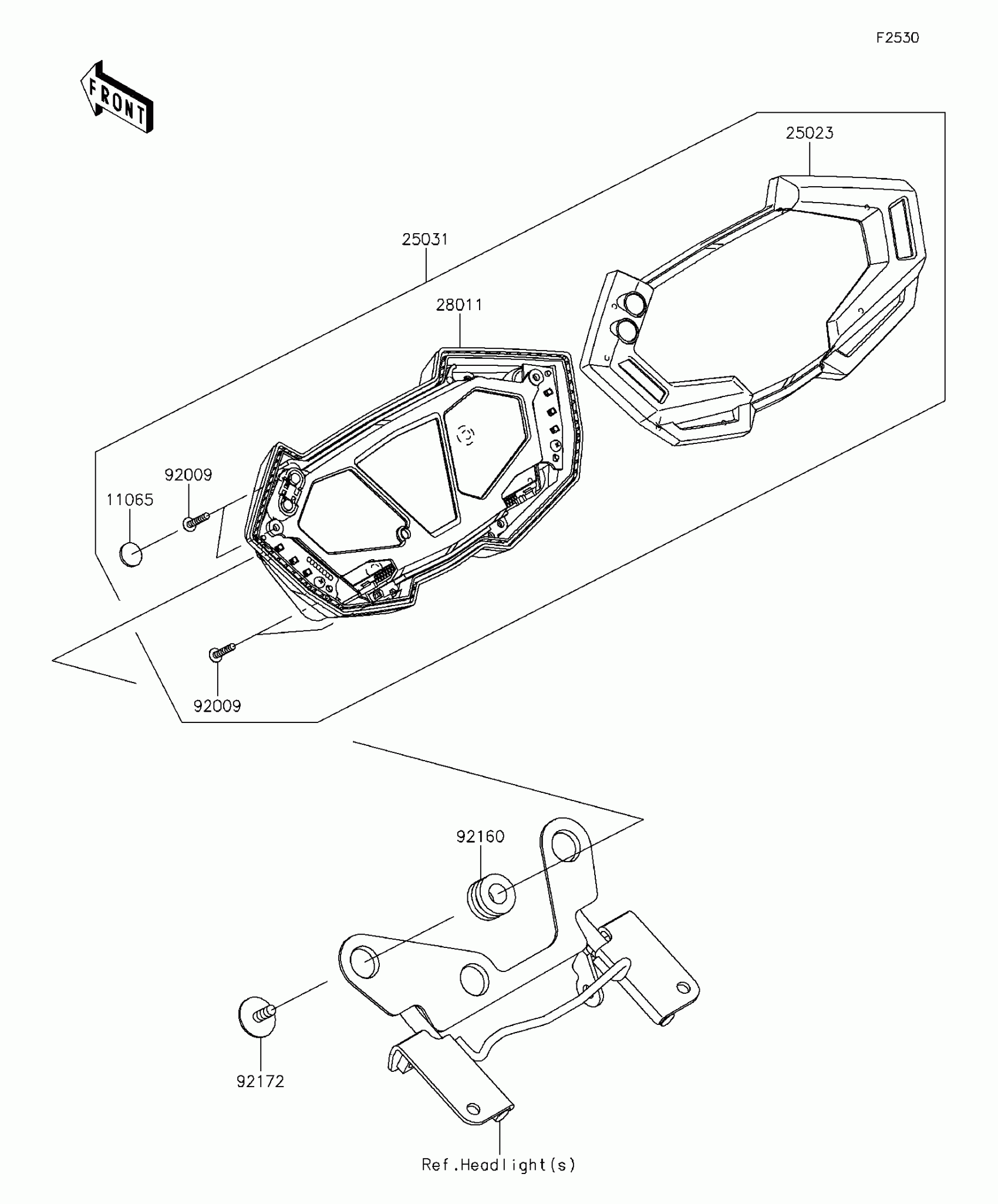

2016 Kawasaki Z800 ABS Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,WATER PROOF

11065-0774

1

$2.98

In stock

25023

COVER-METER CASE

25023-0113

1

$130.90

In stock

25031

1

$980.64

In stock

28011

METER,LCD

28011-0638

1

$662.88

In stock

92009

SCREW,TAPPING,3X16

92009-1391

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92172

1

$2.25

In stock
