2016 Kawasaki Z800 ABS Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

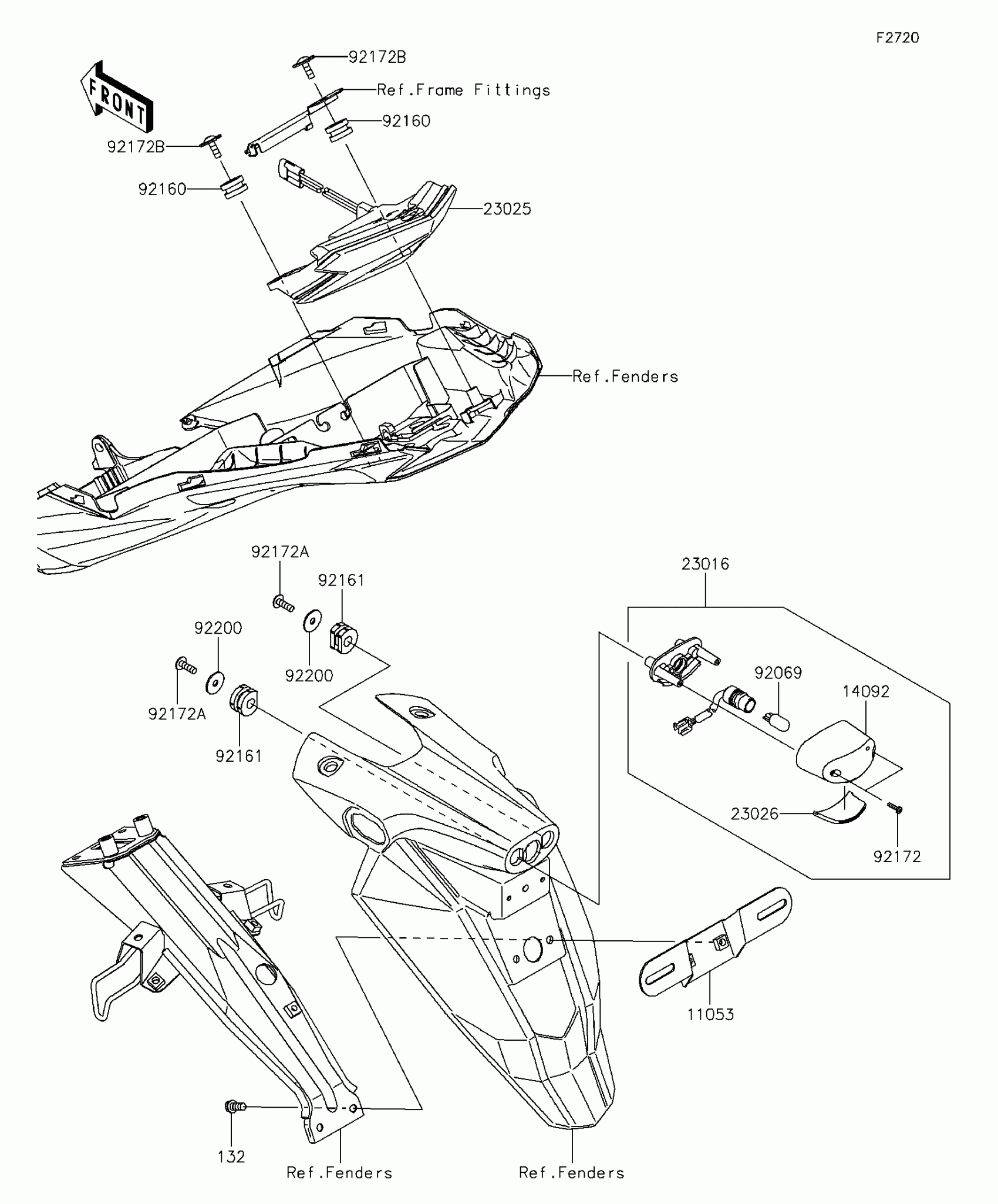

2016 Kawasaki Z800 ABS Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET,LICENSE

11053-0400

1

$13.08

In stock

132

1

$1.31

In stock

14092

COVER,LICENSE LAMP

14092-0001

1

$20.17

In stock

23016

LAMP-ASSY,LICENSE

23016-0561

1

$73.13

In stock

23025

LAMP-TAIL,LED

23025-0344

1

$309.39

In stock

23026

LENS,LICENCE LAMP

23026-0023

1

$29.34

In stock

92069

BULB,12V 5W

92069-1016

1

$5.16

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92161

DAMPER

92161-0776

1

$4.39

In stock

92172

1

$1.53

In stock

92172A

SCREW,TAPPING,5X16

92172-0427

1

$2.10

In stock

92172B

SCREW,TAPTITE,5X16

92172-0481

1

$2.58

In stock

92200

WASHER,5.5X20X1.2

92200-0284

1
Out of stock
