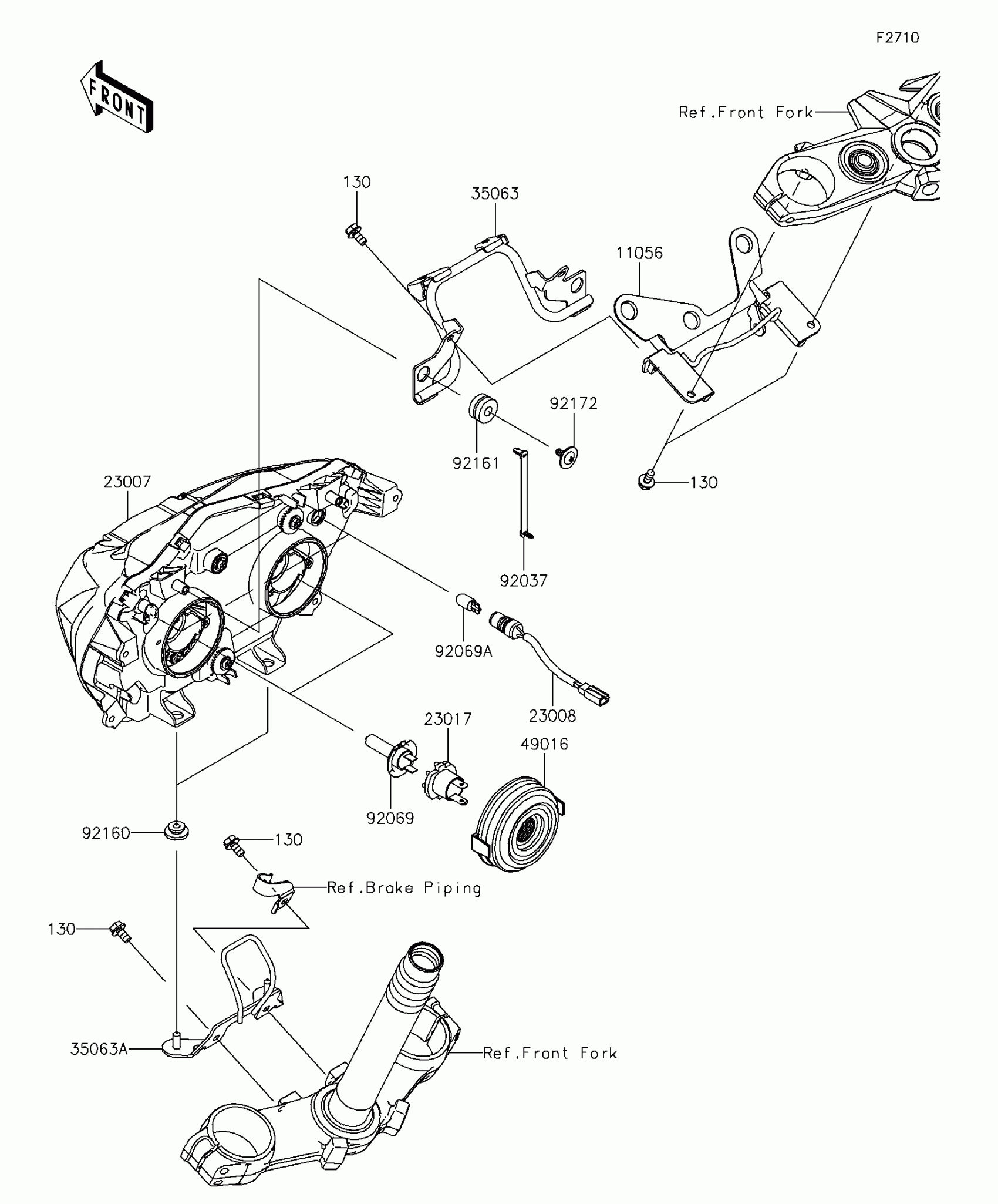

Find the part on the Headlight diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Z800 ABS Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,METER

11056-1801

1
Out of stock

130

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

23007

LENS-COMP

23007-0193

1

$586.30

In stock

23008

1

$84.48

In stock

23017

SOCKET,HEAD LAMP

23017-0004

1

$21.71

In stock

35063

STAY,HEAD LAMP,UPP

35063-0865

1
Out of stock

35063A

STAY,HEAD LAMP,LWR

35063-0866

1
Out of stock

49016

COVER-SEAL

49016-0591

1

$17.63

In stock

92037

CLAMP,SPEED,L=80.5

92037-1903

1

$6.24

In stock

92069

BULB,12V 55W,H7

92069-0053

1

$39.00

In stock

92069A

BULB,12V 5W

92069-1016

1

$5.16

In stock

92160

DAMPER

92160-1613

1

$2.97

In stock

92161

DAMPER

92161-0054

1

$4.15

In stock

92172

1

$7.32

In stock
