Description

Price

11065

CAP

11065-0072

$5.50

13272

PLATE,THROTTLE CABLE

13272-1376

$3.80

14092

COVER,THROTTLE,LH

14092-0952

$5.41

14092A

COVER,THROTTLE,RH

14092-0953

$5.41

16014

SCREW-PILOT AIR

16014-0017

$22.08

16021

SCREW-THROTTLE STOP

16021-0029

$81.83

16073

INSULATOR,INJECTER

16073-1123

$7.41

16163

THROTTLE-ASSY

16163-0798

$1,849.05

31064

PIPE-COMP,FUEL

31064-0625

$87.65

49033

NOZZLE-INJECTION

49033-0029

$137.01

49056

PIPE-INJECTION

49056-0037

$106.16

92005

FITTING

92005-1380

$15.71

92037

CLAMP,TUBE

92037-1124

$4.59

92039

RIVET

92039-0023

$2.09

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.09

92055A

RING-O

92055-0761

$7.31

92152

COLLAR

92152-1709

$3.31

92154

BOLT,SOCKET,5X12

92154-0917

$3.59

92154A

BOLT,FLANGED,5X8

92154-0964

$0.85

92170

CLAMP

92170-3749

$3.15

92172

SCREW,PIPE INJECTION

92172-0828

$2.11

92191

TUBE,3.2X7.4X40

92191-1551

$2.27

92191A

TUBE,3.2X7.4X70

92191-1552

$3.71

92192

TUBE,3.2X7.4X90

92192-1265

$15.02

92192A

TUBE,3.2X7.4X100

92192-1266

$16.93

92200

WASHER

92200-3807

$4.53

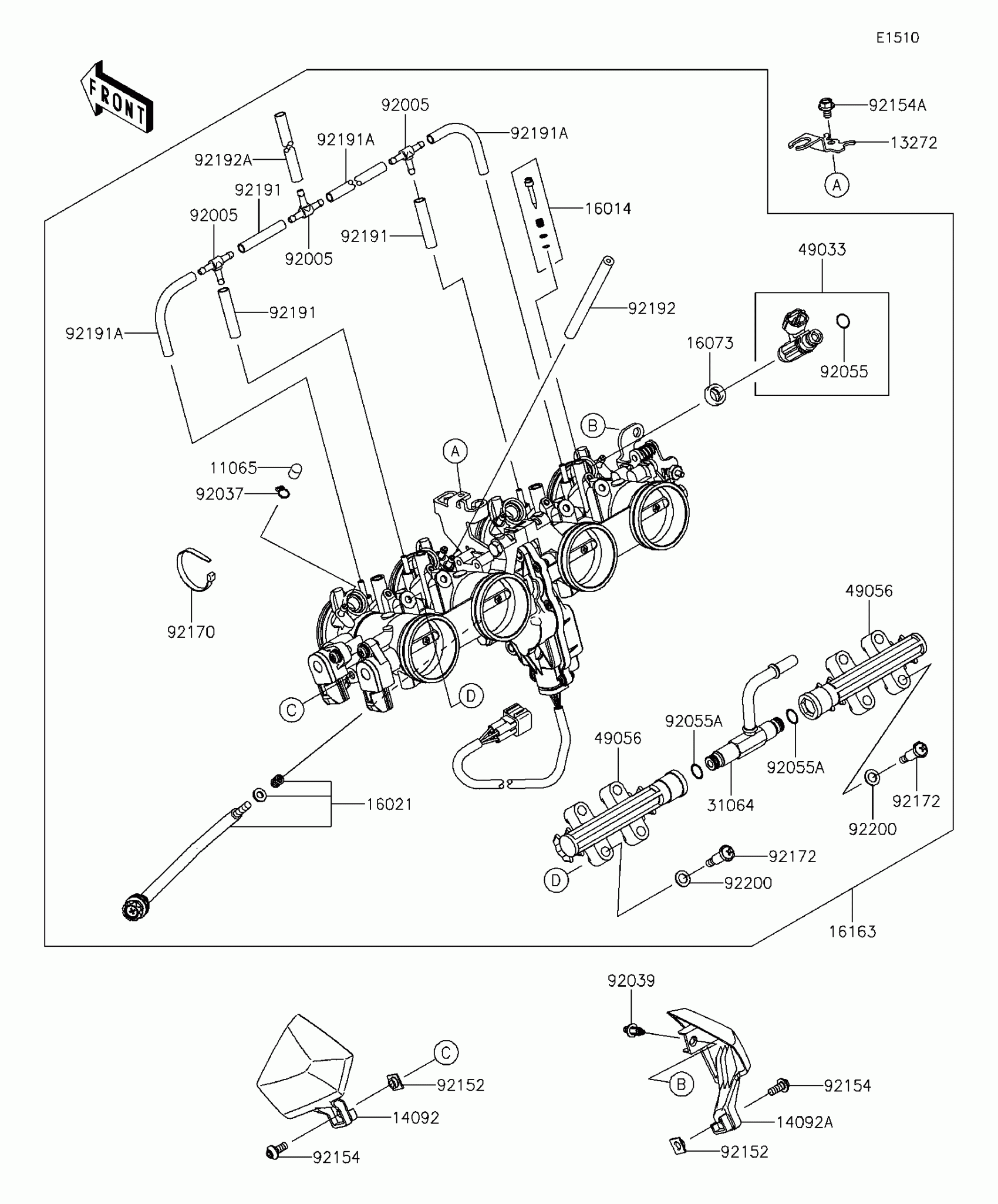

Kawasaki Z800 ABS Throttle Diagram

CAP
