2016 Kawasaki Z800 ABS Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

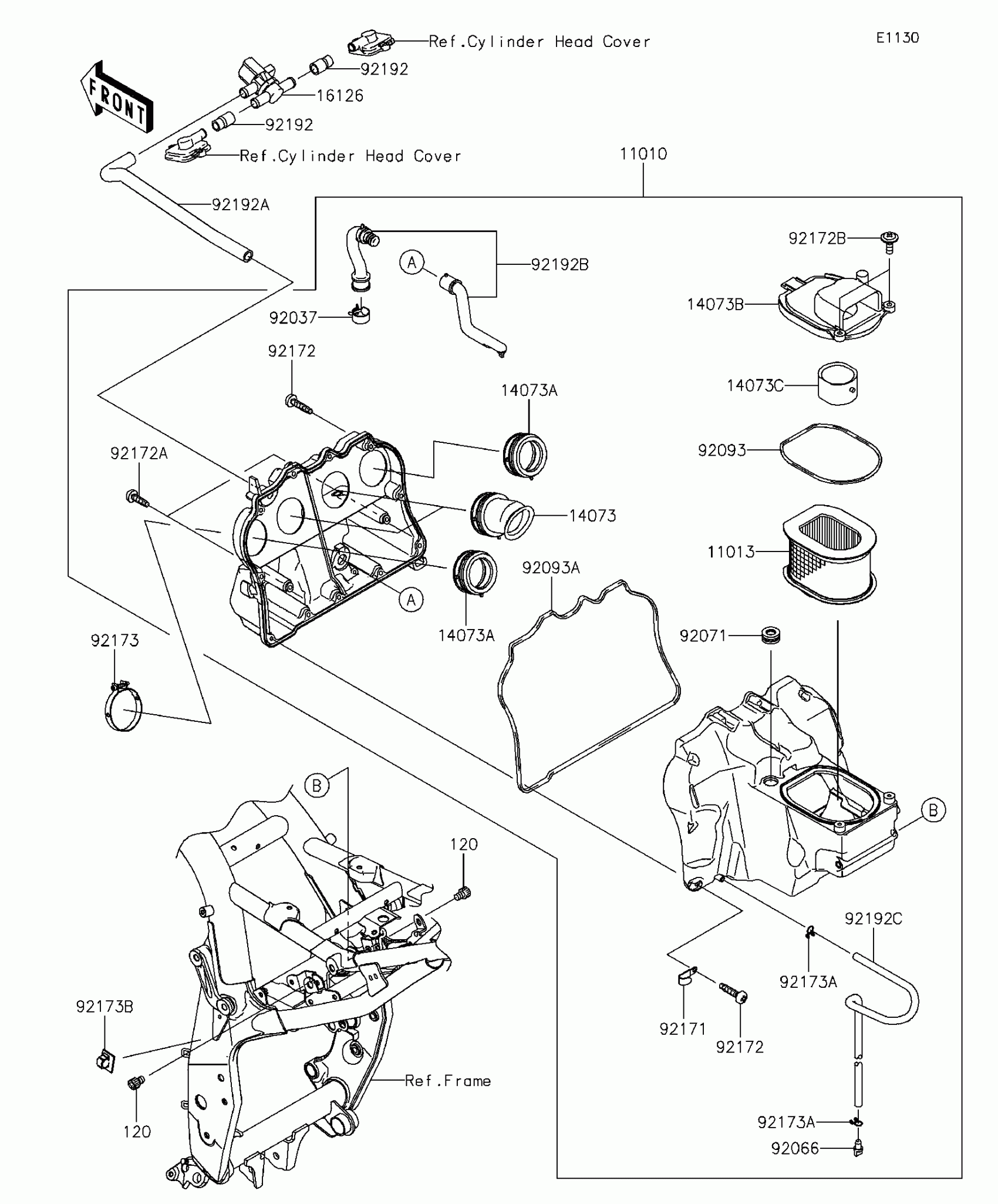

2016 Kawasaki Z800 ABS Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-0775

1

$451.18

In stock

11013

ELEMENT-AIR FILTER

11013-0044

1

$71.58

In stock

120

BOLT-SOCKET,6X8

120CA0608

1

$2.49

In stock

14073

DUCT,FUNNEL #2

14073-0738

1

$35.85

In stock

14073A

DUCT,FUNNEL #1

14073-0746

1

$28.91

In stock

14073B

DUCT,INTAKE,TOP

14073-0748

1

$39.90

In stock

14073C

DUCT,INTAKE,UNDER

14073-0749

1

$23.03

In stock

16126

VALVE,AIR SWITCHING

16126-1437

1

$189.57

In stock

92037

CLAMP,HOSE CLIP

92037-1460

1

$8.57

In stock

92066

PLUG,DRAIN

92066-1211

1

$6.75

In stock

92071

GROMMET

92071-0714

1

$5.71

In stock

92093

SEAL

92093-0591

1

$7.76

In stock

92093A

SEAL

92093-0592

1

$17.14

In stock

92171

CLAMP

92171-1539

1

$2.29

In stock

92172

SCREW,TAPPING,5X25

92172-0803

1

$2.44

In stock

92172A

SCREW,TAPPING,5X20

92172-0804

1

$2.46

In stock

92172B

SCREW,6X16

92172-0805

1

$2.19

In stock

92173

CLAMP,58MM

92173-0927

1

$13.63

In stock

92173A

CLAMP,10MM

92173-1044

1

$2.44

In stock

92173B

CLAMP,DRAIN

92173-1055

1

$5.54

In stock

92192

TUBE,HEAD-ASV

92192-0033

1
Out of stock

92192A

TUBE,ASV-A/C

92192-1106

1
Out of stock

92192B

TUBE,BREATHER

92192-1158

1
Out of stock

92192C

TUBE,DRAIN

92192-1313

1
Out of stock
