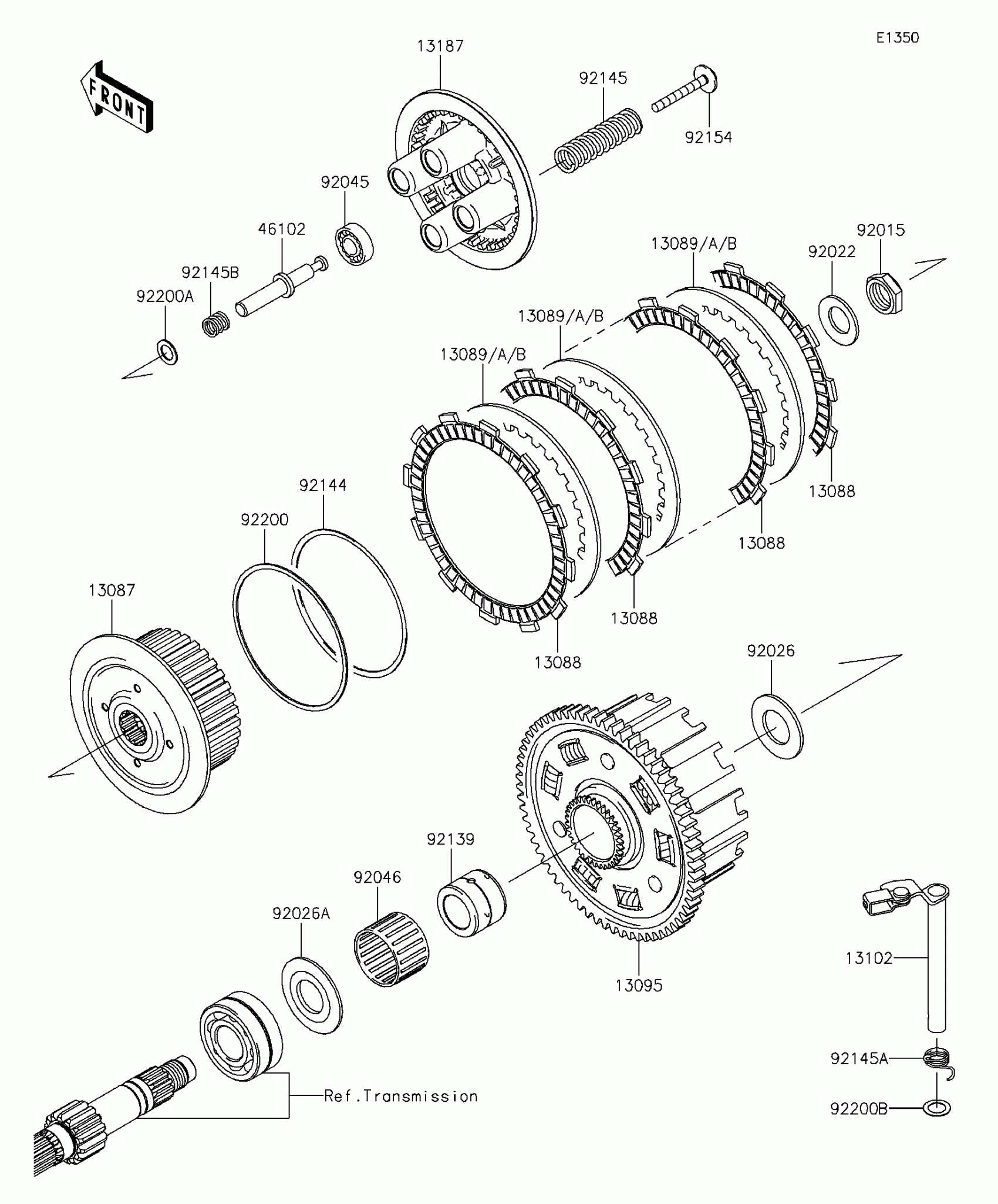

Find the part on the Clutch diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Z800 ABS Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-0006

1

$153.31

In stock

13088

PLATE-FRICTION

13088-1124

1

$14.42

In stock

13089

PLATE-CLUTCH,T=1.6

13089-013

1

$10.41

In stock

13089A

PLATE-CLUTCH,T=2.0

13089-1073

—

$10.14

In stock

13089B

PLATE-CLUTCH,T=1.4

13089-1126

—

$9.15

In stock

13095

HOUSING-COMP-CLUTCH

13095-0070

1

$584.51

In stock

13102

RELEASE-COMP-CLUTCH

13102-0043

1

$61.78

In stock

13187

1

$84.26

In stock

46102

ROD

46102-0567

1

$35.13

In stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

WASHER,20.3X36X3.7

92022-1868

1
Out of stock

92026

SPACER,25.5X47X2.5

92026-022

1
Out of stock

92026A

SPACER

92026-1497

1

$10.83

In stock

92045

BEARING-BALL,6001C3

92045-0742

1

$11.42

In stock

92046

BEARING-NEEDLE,K38X43X28.8X

92046-1263

1
Out of stock

92139

BUSHING,25X38X29.05

92139-0776

1

$43.44

In stock

92144

1

$7.07

In stock

92145

SPRING

92145-0675

1

$7.29

In stock

92145A

SPRING,CLUTCH RELEASE

92145-0897

1
Out of stock

92145B

SPRING,ROD

92145-1159

1

$2.17

In stock

92154

1

$4.71

In stock

92200

WASHER,FRICTION PLATE

92200-1260

1
Out of stock

92200A

WASHER,11.2X18X0.5

92200-1423

1
Out of stock

92200B

WASHER,12X18.5X0.5

92200-1487

1
Out of stock
