2016 Kawasaki Z800 ABS Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

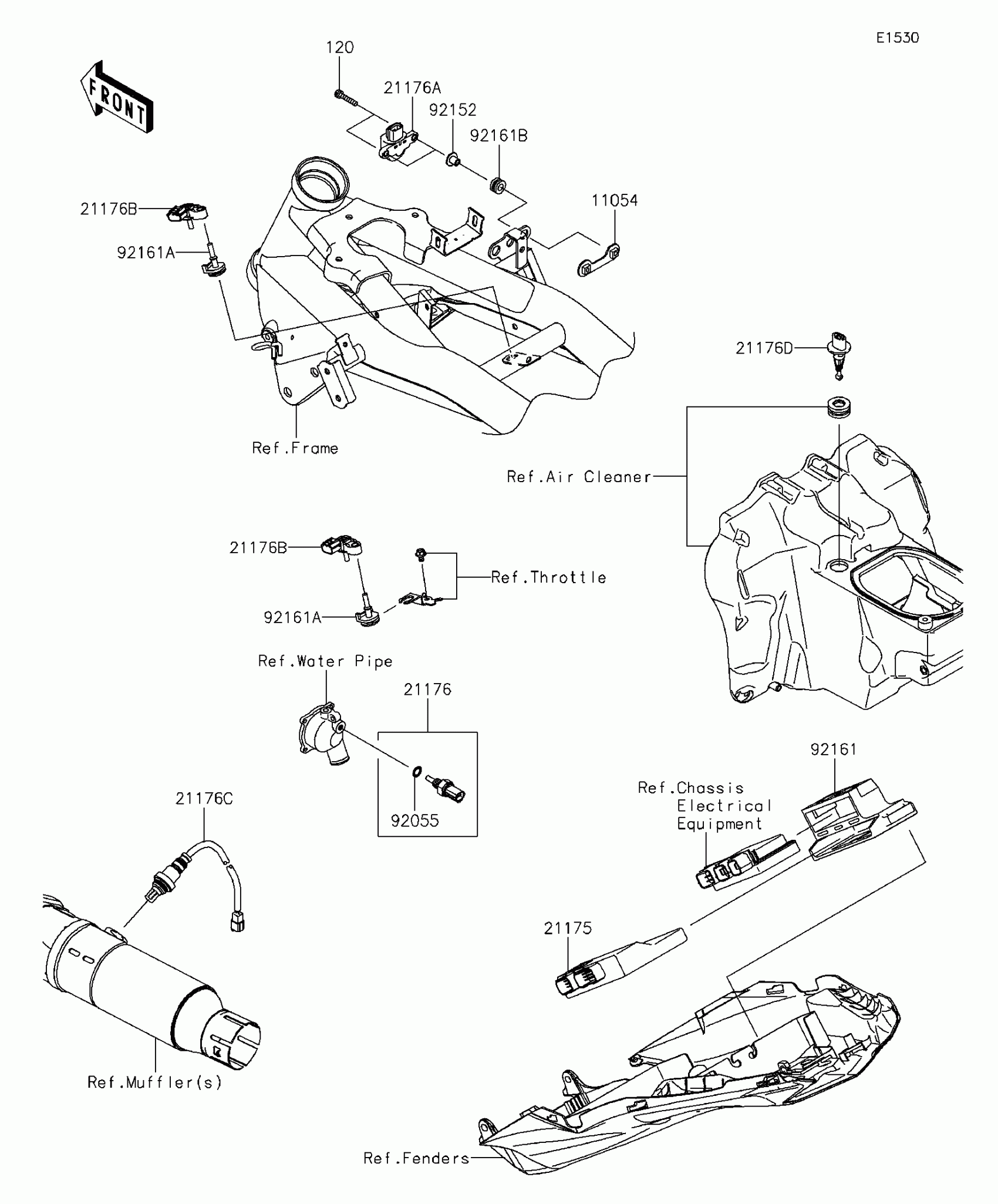

2016 Kawasaki Z800 ABS Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET

11054-1892

1

$11.83

In stock

120

BOLT-SOCKET,5X25

120CA0525

1

$3.86

In stock

21175

1

$1,179.76

In stock

21176

SENSOR,WATER TEMP

21176-0009

1

$63.44

In stock

21176A

SENSOR,VEHICLE-DOWN

21176-0026

1

$79.06

In stock

21176B

SENSOR,PRESSURE

21176-0111

1

$226.99

In stock

21176C

SENSOR,OXYGEN

21176-0749

1

$239.98

In stock

21176D

SENSOR,AIR TEMP

21176-2106

1

$22.55

In stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92152

COLLAR

92152-1592

1
Out of stock

92161

DAMPER

92161-0356

1

$23.93

In stock

92161A

DAMPER

92161-0673

1

$4.85

In stock

92161B

DAMPER,8X16X8.6

92161-0685

1

$5.24

In stock
