2016 Kawasaki Z800 ABS Water Pipe Diagram

← All diagrams

Find the part on the Water Pipe diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

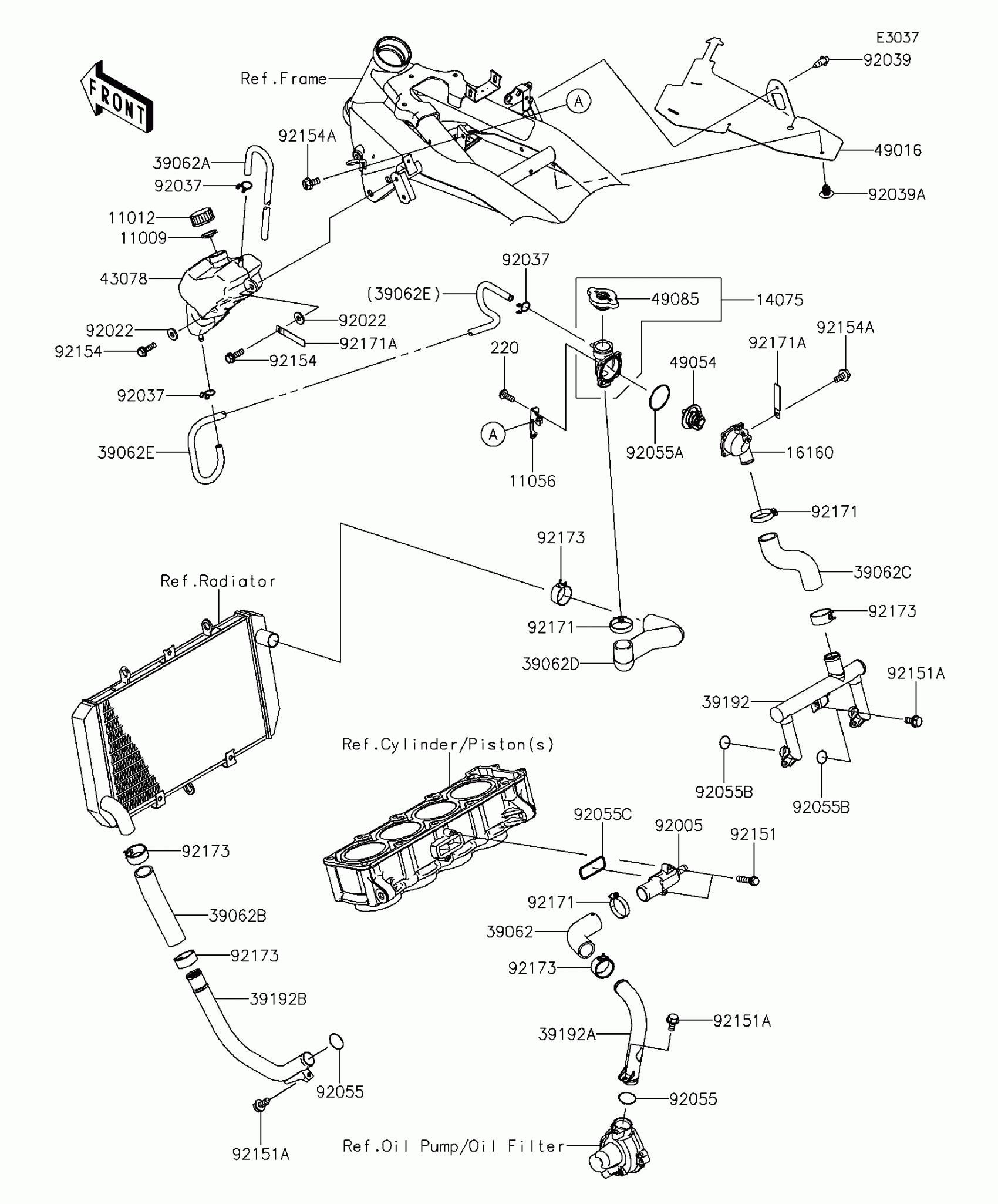

2016 Kawasaki Z800 ABS Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

11056

BRACKET,THERMOSTAT

11056-1800

1

$5.12

In stock

14075

CAP-ASSY

14075-0001

1

$145.52

In stock

16160

BODY,LWR

16160-0774

1

$69.13

In stock

220

1

$3.52

In stock

39062

1

$35.08

In stock

39062A

1

$36.10

In stock

39062B

1

$29.50

In stock

39062C

1

$36.46

In stock

39062D

1

$77.66

In stock

39062E

HOSE-COOLING,DRAIN

39062-1610

1

$10.68

In stock

39192

PIPE-WATER

39192-0073

1

$218.63

In stock

39192A

PIPE-WATER

39192-0566

1

$62.40

In stock

39192B

PIPE-WATER

39192-0568

1

$62.40

In stock

43078

RESERVOIR

43078-0559

1

$41.84

In stock

49016

COVER-SEAL

49016-0600

1

$18.14

In stock

49054

THERMOSTAT

49054-0004

1

$53.21

In stock

49085

CAP-ASSY-PRESSURE

49085-1066

1

$33.98

In stock

92005

FITTING

92005-0811

1
Out of stock

92022

WASHER,6.5X16X2

92022-1565

1

$3.12

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92039

RIVET

92039-0709

1

$2.19

In stock

92039A

RIVET

92039-0722

1

$1.44

In stock

92055

RING-O,20.8X2.4

92055-0114

1

$3.11

In stock

92055A

RING-O,53.5X2.6

92055-0831

1

$6.25

In stock

92055B

RING-O,18.54X2.6

92055-1350

1

$3.46

In stock

92055C

RING-O

92055-1402

1

$6.24

In stock

92151

1

$2.06

In stock

92151A

BOLT,6X12

92151-1997

1

$1.36

In stock

92154

BOLT,FLANGED,6X20

92154-0776

1

$1.93

In stock

92154A

BOLT,FLANGED,6X12

92154-1050

1

$1.68

In stock

92171

CLAMP

92171-0179

1

$6.51

In stock

92171A

CLAMP,L=60

92171-0652

1

$2.15

In stock

92173

CLAMP

92173-0072

1

$7.15

In stock
