2005 Kawasaki Z750S Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

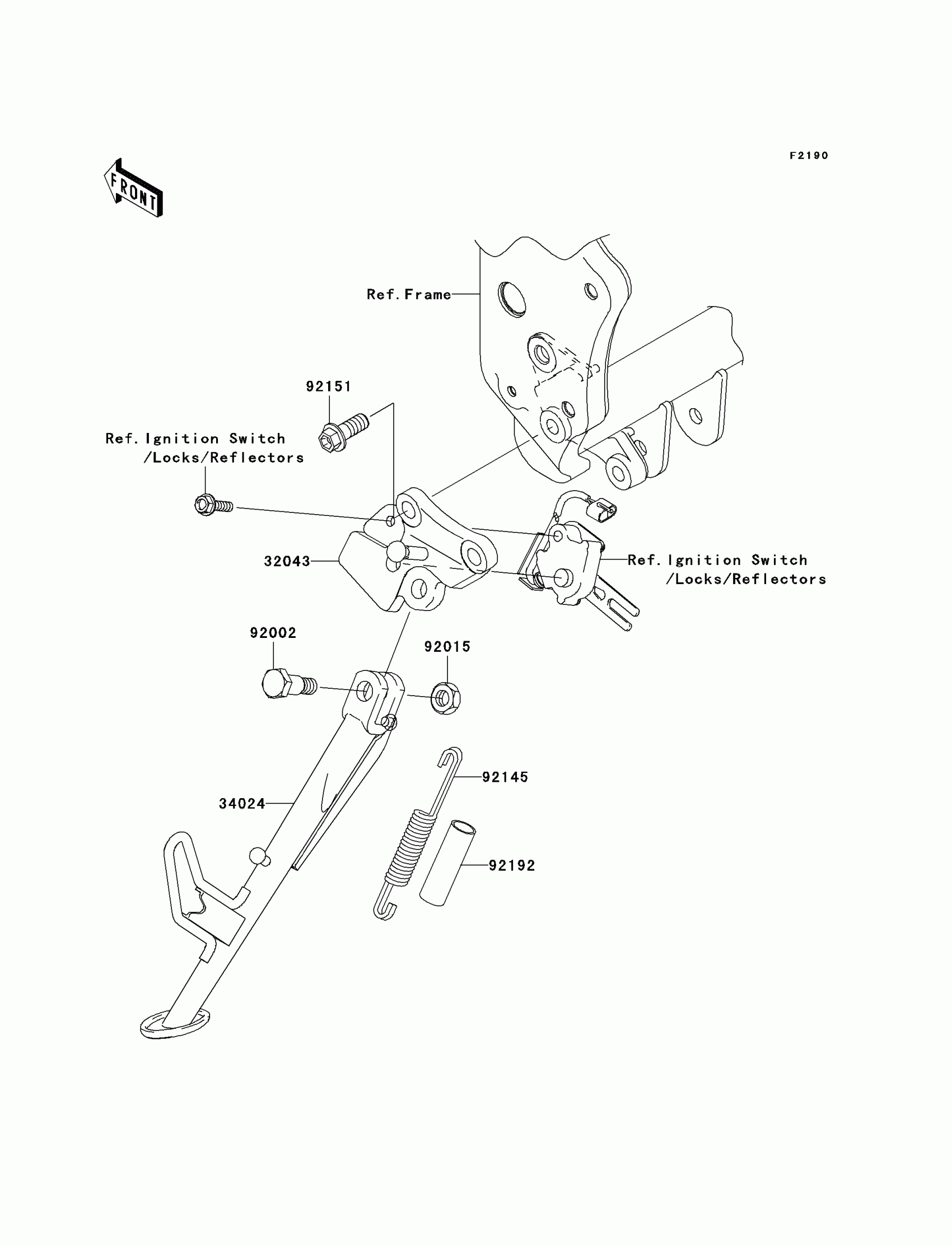

2005 Kawasaki Z750S Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32043

BRACKET-STAND,SIDE

32043-0025

1

$71.29

In stock

34024

STAND-SIDE

34024-0008

1

$136.83

In stock

92002

BOLT,SIDE STAND

92002-1935

1
Out of stock

92015

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92145

SPRING,SIDE STAND

92145-0085

1

$10.67

In stock

92151

BOLT,FLANGED,10X25

92151-1802

1

$3.84

In stock

92192

TUBE,13X16X60

92192-0080

1
Out of stock
