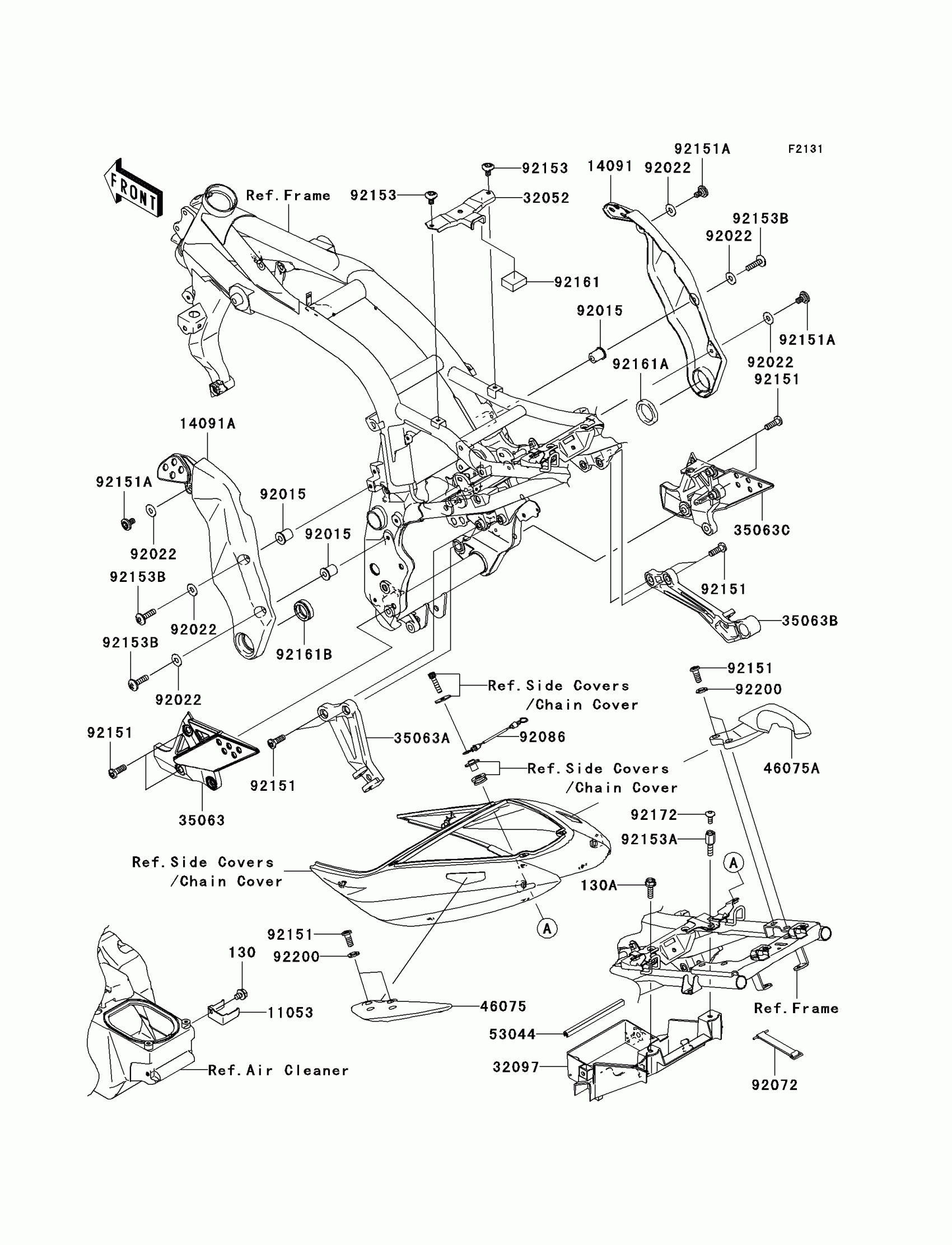

Find the part on the Frame Fittings diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Z750S Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X8

130J0608

1
Out of stock

130A

BOLT-FLANGED

130J0620

1
Out of stock

11053

BRACKET,MAGNETIC SWITCH

11053-0138

1
Out of stock

14091

COVER,PIVOT,RH,M.F.GRAYSTONE

14091-0234-4P

1
Out of stock

14091A

COVER,PIVOT,LH,M.F.GRAYSTONE

14091-0283-4P

1
Out of stock

32052

BRACKET-TANK,FUEL

32052-1597

1
Out of stock

32097

CASE-BATTERY

32097-0010

1
Out of stock

35063

STAY,STEP HOLDER,LH

35063-0034

1
Out of stock

35063A

STAY,RR,LH,P.SILVER

35063-0062-458

1
Out of stock

35063B

STAY,RR,RH,P.SILVER

35063-0063-458

1
Out of stock

35063C

STAY,STEP HOLDER,RH

35063-0172

1
Out of stock

46075

GRIP,TAIL,LH

46075-0031

1
Out of stock

46075A

GRIP,TAIL,RH

46075-0032

1
Out of stock

53044

TRIM,L=150

53044-1303

1
Out of stock

92015

NUT

92015-1700

1
Out of stock

92022

WASHER,6.5X16X1

92022-1143

1
Out of stock

92072

BAND,TOOL

92072-1349

1
Out of stock

92086

WIRE,L=150

92086-1075

1
Out of stock

92151

BOLT,SOCKET,10X30

92151-1372

1
Out of stock

92151A

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92153

BOLT,SOCKET,6X10

92153-0410

1
Out of stock

92153A

BOLT,6MM

92153-0966

1
Out of stock

92153B

BOLT,SOCKET,6X23

92153-1267

1
Out of stock

92161

DAMPER

92161-0063

1
Out of stock

92161A

DAMPER

92161-0148

1
Out of stock

92161B

DAMPER

92161-0211

1
Out of stock

92172

SCREW,5MM

92172-0170

1
Out of stock

92200

WASHER,10.5X26X2.3

92200-0088

1
Out of stock
