2005 Kawasaki Z750S Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

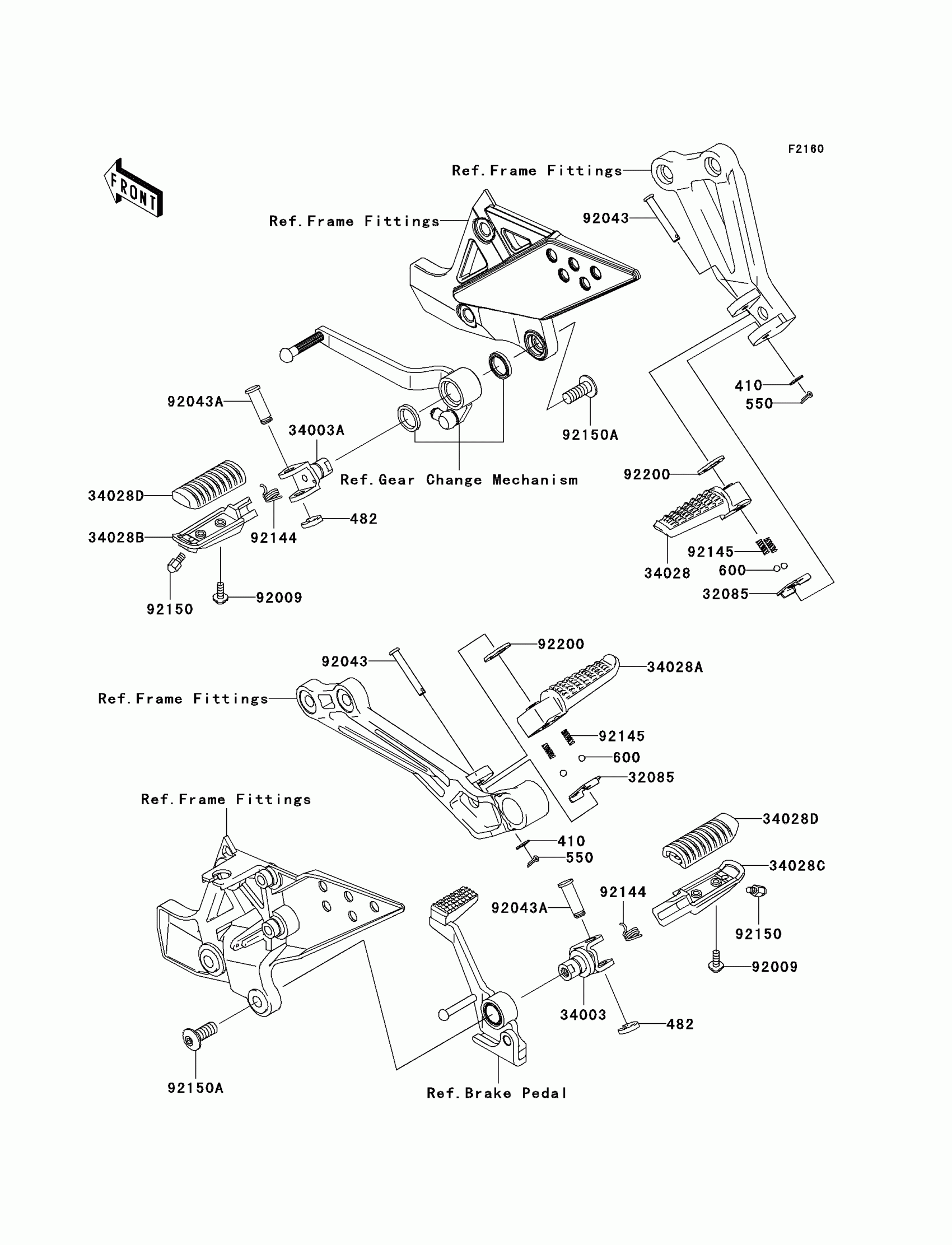

2005 Kawasaki Z750S Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

410

1

$1.19

In stock

482

1

$0.98

In stock

550

PIN-COTTER

550D2512

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock

32085

STOPPER,REAR STEP

32085-0047

1

$4.42

In stock

34003

HOLDER-STEP,FR,RH

34003-0025

1

$44.76

In stock

34003A

HOLDER-STEP,FR,LH

34003-1474

1

$46.99

In stock

34028

STEP,RR,LH

34028-0004

1

$73.38

In stock

34028A

STEP,RR,RH

34028-0005

1

$73.38

In stock

34028B

STEP,FR,LH

34028-1428

1

$46.40

In stock

34028C

STEP,FR,RH

34028-1429

1

$46.40

In stock

34028D

STEP,RUBBER

34028-1430

1

$21.09

In stock

92009

SCREW,5X14

92009-1404

1
Out of stock

92043

PIN,6X43

92043-0019

1

$2.56

In stock

92043A

PIN,12X37

92043-1641

1

$8.90

In stock

92144

SPRING,STEP RETURN

92144-1567

1

$5.15

In stock

92145

SPRING

92145-1319

1

$1.54

In stock

92150

BOLT,BANK SENSOR

92150-1114

1

$10.93

In stock

92150A

BOLT,SOCKET,10X25

92150-1268

1

$4.93

In stock

92200

WASHER,16X26X2.3

92200-0043

1
Out of stock
