2005 Kawasaki Z750S Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

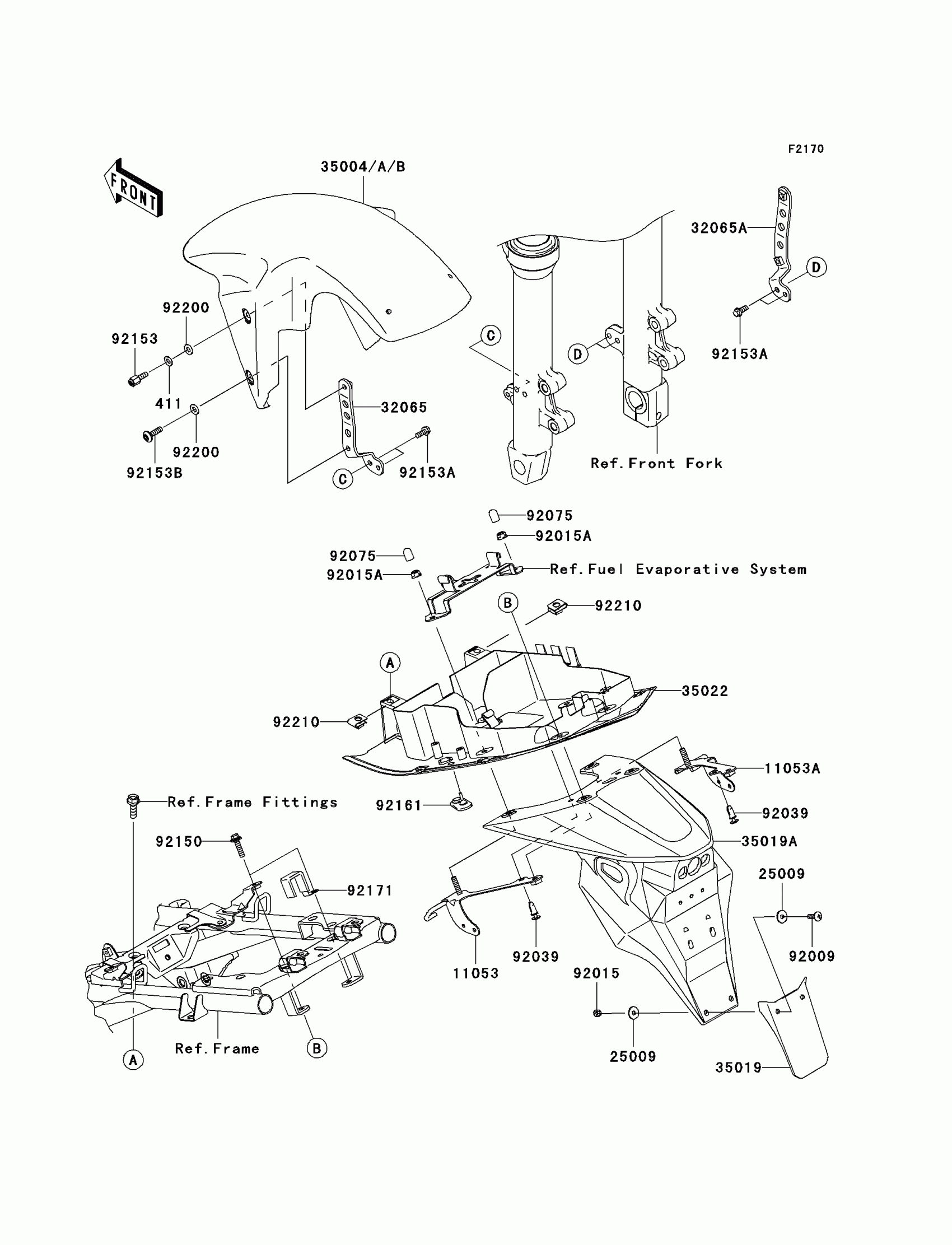

2005 Kawasaki Z750S Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

411

WASHER PLAIN

411F0600

1
Out of stock

11053

BRACKET,FLAP,LH

11053-0060

1
Out of stock

11053A

BRACKET,FLAP,RH

11053-0061

1
Out of stock

25009

WASHER,5.2X16X1.2

25009-004

1
Out of stock

32065

BRACKET-FENDER,LH

32065-0002

1
Out of stock

32065A

BRACKET-FENDER,RH

32065-0003

1
Out of stock

35004

FENDER-FRONT,C.P.BLUE

35004-0024-723

1
Out of stock

35019

FLAP

35019-0006

1
Out of stock

35019A

FLAP,REAR FENDER

35019-0007

1
Out of stock

35023

FENDER-REAR

35023-0044

1
Out of stock

92009

SCREW,5X14

92009-1653

1
Out of stock

92015

NUT,LOCK,5MM

92015-1221

1
Out of stock

92015A

NUT,LOCK,FLANGED,6MM

92015-1603

1
Out of stock

92039

RIVET

92039-1286

1
Out of stock

92075

DAMPER

92075-1964

1
Out of stock

92150

BOLT,6X25

92150-1829

1
Out of stock

92153

BOLT,6MM

92153-0476

1
Out of stock

92153A

BOLT,FLANGED,6X14

92153-0589

1
Out of stock

92153B

BOLT,SOCKET,6X23

92153-1267

1
Out of stock

92171

CLAMP

92171-0488

1
Out of stock

92200

WASHER,6.5X14X1

92200-1388

1
Out of stock

92210

NUT

92210-0130

1
Out of stock

35004A

FENDER-FRONT,P.M.RED

35004-0024-724

1
Out of stock
