2005 Kawasaki Z750S Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

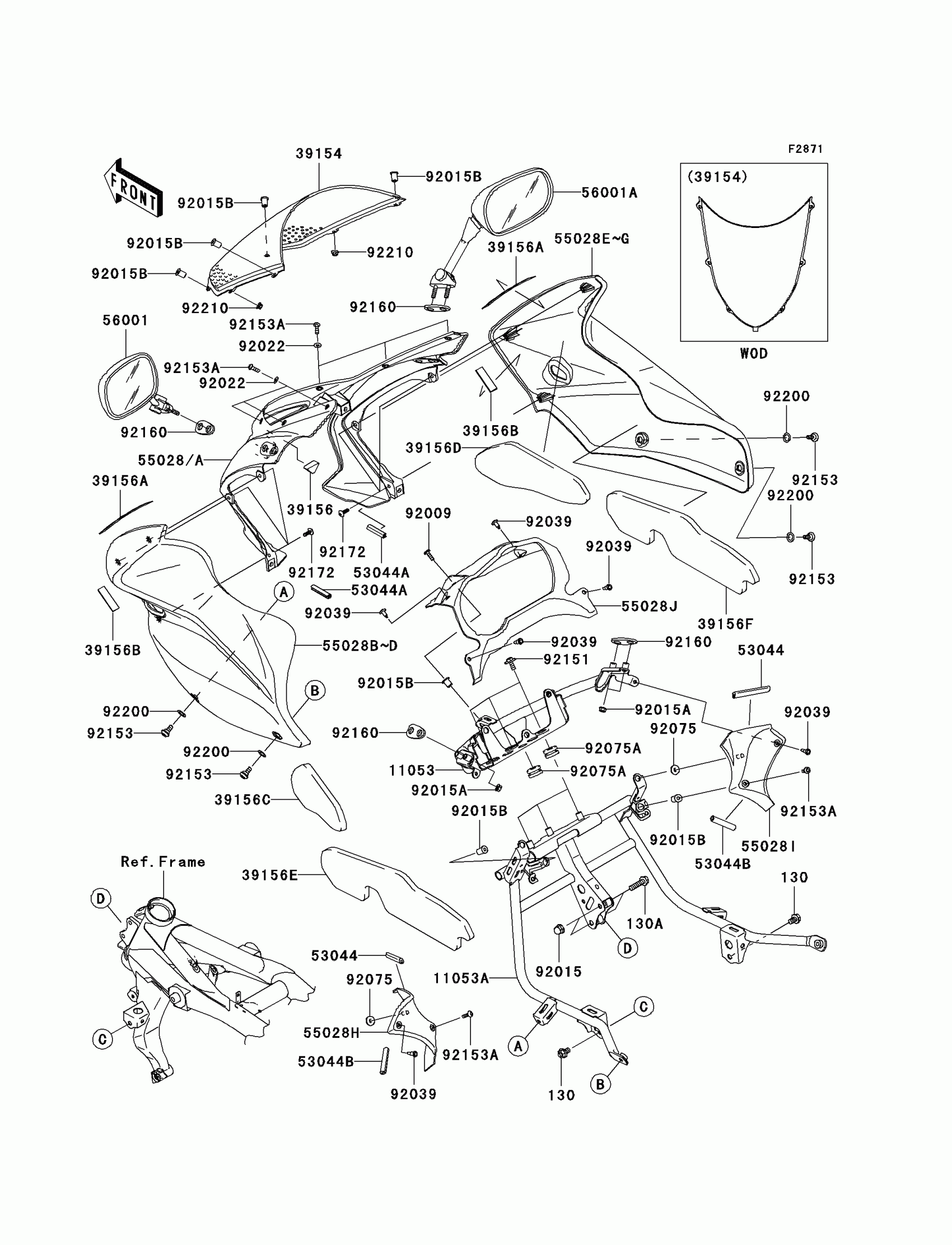

2005 Kawasaki Z750S Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X12

130L0812

1
Out of stock

130A

BOLT-FLANGED,8X30

130L0830

1
Out of stock

11053

1

$130.94

In stock

11053A

BRACKET,UPP COWLING

11053-1432

1
Out of stock

39154

WINDSHIELD

39154-0001

1

$162.46

In stock

39156

PAD

39156-0099

1

$3.49

In stock

39156A

1

$4.49

In stock

39156B

1

$11.02

In stock

39156C

1

$14.97

In stock

39156D

1

$14.97

In stock

39156E

1

$17.59

In stock

39156F

1

$17.59

In stock

53044

TRIM,L=75

53044-0009

1

$3.51

In stock

55028

1

$322.87

In stock

55028A

COWLING,UPP,LH,C.P.BLUE

55028-0042-723

1

$123.30

In stock

55028C

COWLING,UPP,RH,C.P.BLUE

55028-0043-723

1

$127.24

In stock

55028E

COWLING,INNER,LH

55028-0044

1

$37.46

In stock

55028F

COWLING,INNER,RH

55028-0045

1
Out of stock

55028G

COWLING,INNER,CNT

55028-0049

1

$93.13

In stock

56001

MIRROR-ASSY,LH

56001-0037

1

$70.89

In stock

56001A

MIRROR-ASSY,RH

56001-0038

1

$71.61

In stock

92009

SCREW,5X16

92009-1909

1
Out of stock

92015

NUT,CAP,8MM,BLACK

92015-1174

1
Out of stock

92015A

NUT,FLANGED,6MM,BLACK

92015-1386

1
Out of stock

92015B

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92022

1

$3.12

In stock

92039

RIVET

92039-0023

1

$2.42

In stock

92075

DAMPER,6X16X7

92075-1011

1

$5.84

In stock

92075A

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92151

BOLT,6X16

92151-1530

1
Out of stock

92153

BOLT,SOCKET,6MM

92153-0489

1
Out of stock

92153A

BOLT,SOCKET,5X16

92153-1244

1
Out of stock

92160

DAMPER,MIRROR

92160-1089

1

$6.06

In stock

92172

SCREW,TAPPING,5X16

92172-0175

1

$1.53

In stock

92200

WASHER,10.4X15.9X0.5

92200-0157

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

55028B

COWLING,UPP,LH,P.M.RED

55028-0042-724

1
Out of stock

55028D

COWLING,UPP,RH,P.M.RED

55028-0043-724

1
Out of stock
