2022 Kawasaki Z650RS Water Pump Diagram

← All diagrams

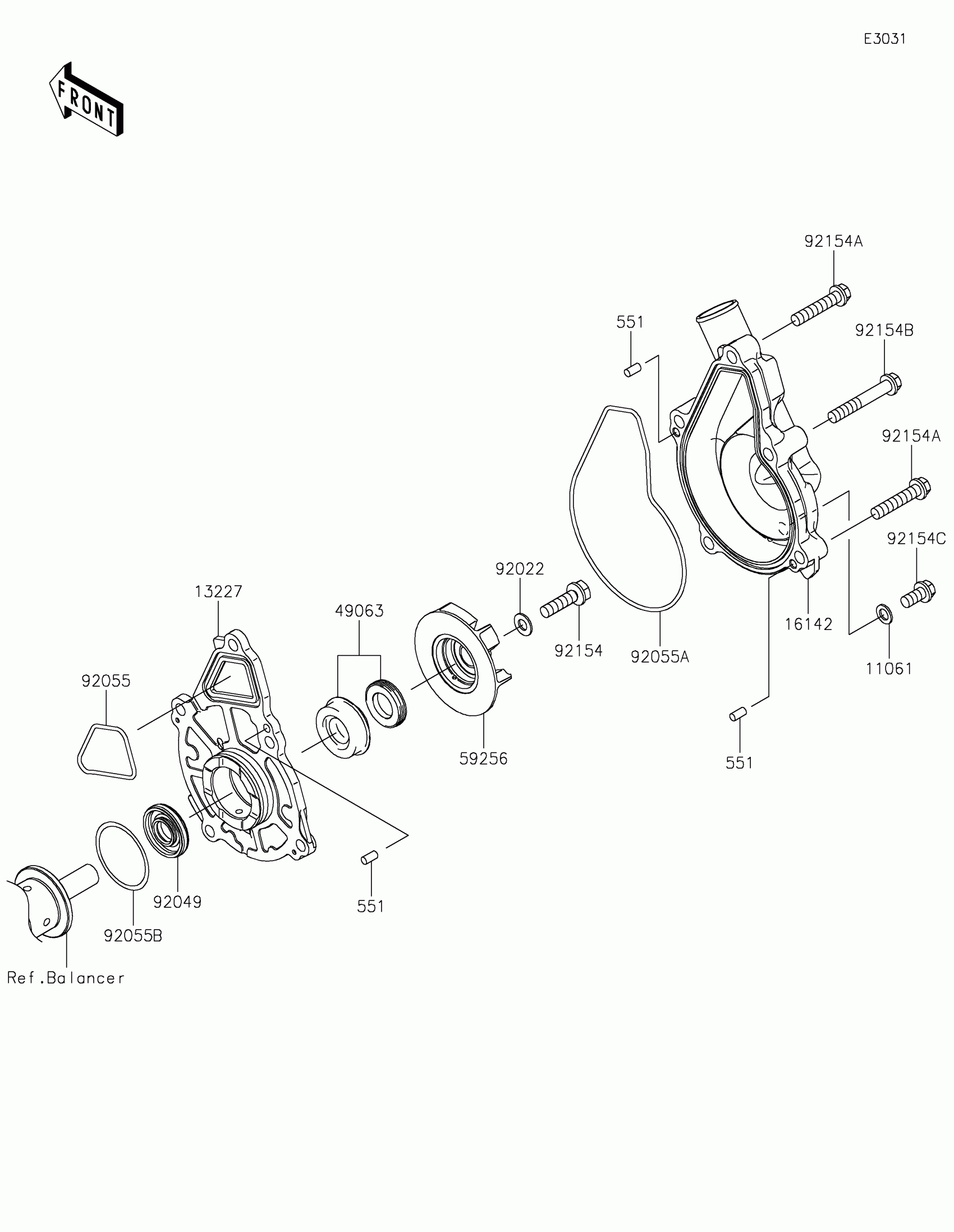

Find the part on the Water Pump diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki Z650RS Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-0107

1

$2.12

In stock

13227

HOUSING

13227-0038

1

$45.18

In stock

16142

COVER-PUMP

16142-0741

1

$60.85

In stock

49063

SEAL-MECHANICAL

49063-1055

1

$18.61

In stock

59256

IMPELLER

59256-0009

1

$24.20

In stock

92022

1

$3.13

In stock

92049

SEAL-OIL,12X28.55X5

92049-0791

1
Out of stock

92055

RING-O,CASE-HOUSING

92055-0082

1

$3.11

In stock

92055A

1

$6.90

In stock

92055B

RING-O,33.2MM

92055-1155

1

$11.45

In stock

92154

BOLT,FLANGED,6X22

92154-1069

1

$2.44

In stock

92154A

BOLT,FLANGED,6X30

92154-1773

1

$1.10

In stock

92154B

BOLT,FLANGED,6X40

92154-1774

1

$1.32

In stock

92154C

BOLT,FLANGED,6X12

92154-1777

1

$0.93

In stock

551

PIN-DOWEL,4X8

551A0408

1

$0.80

In stock
