2022 Kawasaki Z650RS Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

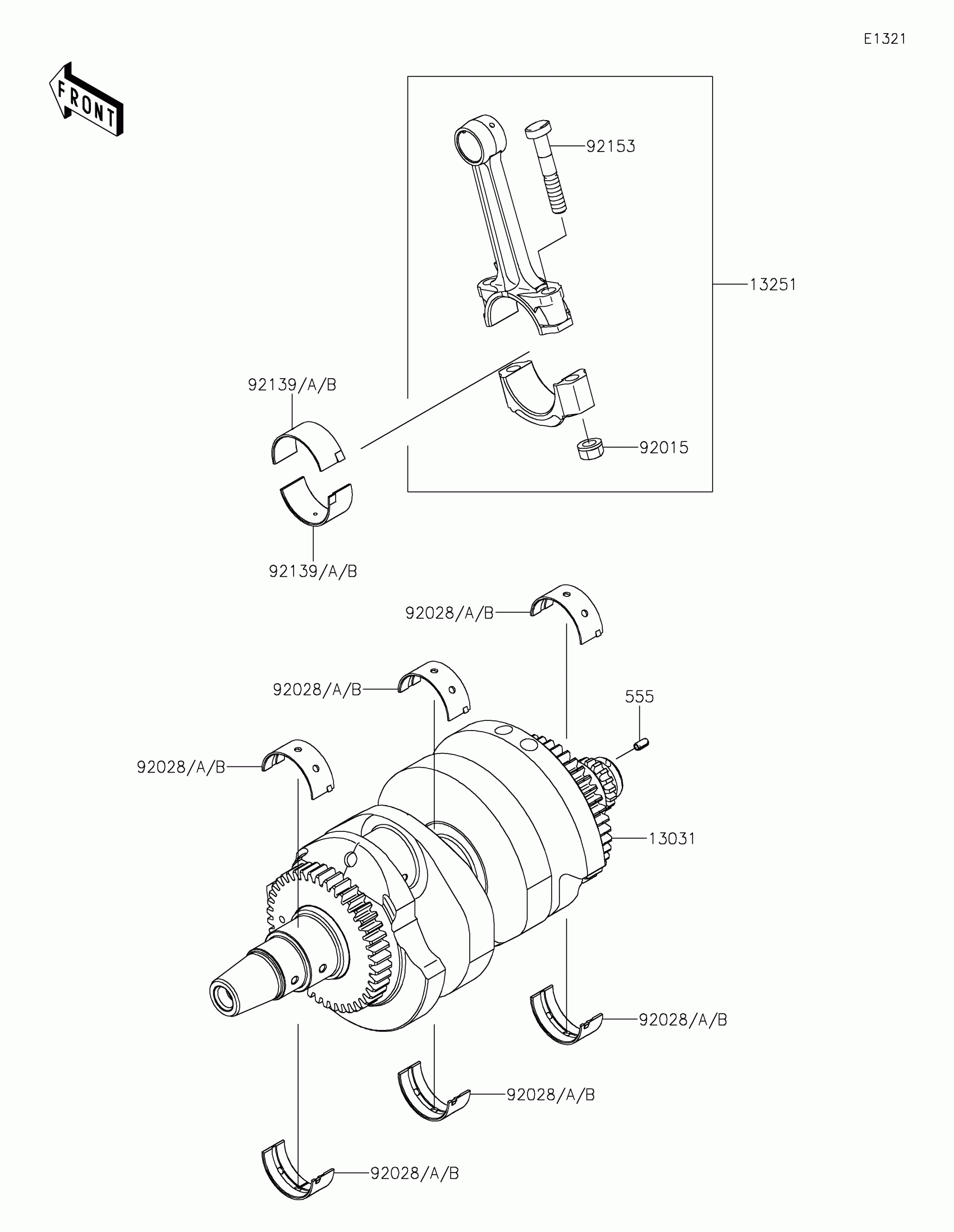

2022 Kawasaki Z650RS Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-0149

1

$835.73

In stock

13251

ROD-ASSY-CONNECTING,K

13251-0010-KK

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1311

1
Out of stock

92028

1

$17.10

In stock

92028A

—

$17.10

In stock

92028B

—

$14.36

In stock

92139

1

$11.19

In stock

92139A

—

$13.42

In stock

92139B

—

$13.42

In stock

92153

BOLT,CON-ROD,8X49

92153-0957

1
Out of stock

555

PIN-SPRING,4X8

555A0408

1

$3.12

In stock
