2022 Kawasaki Z650RS Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

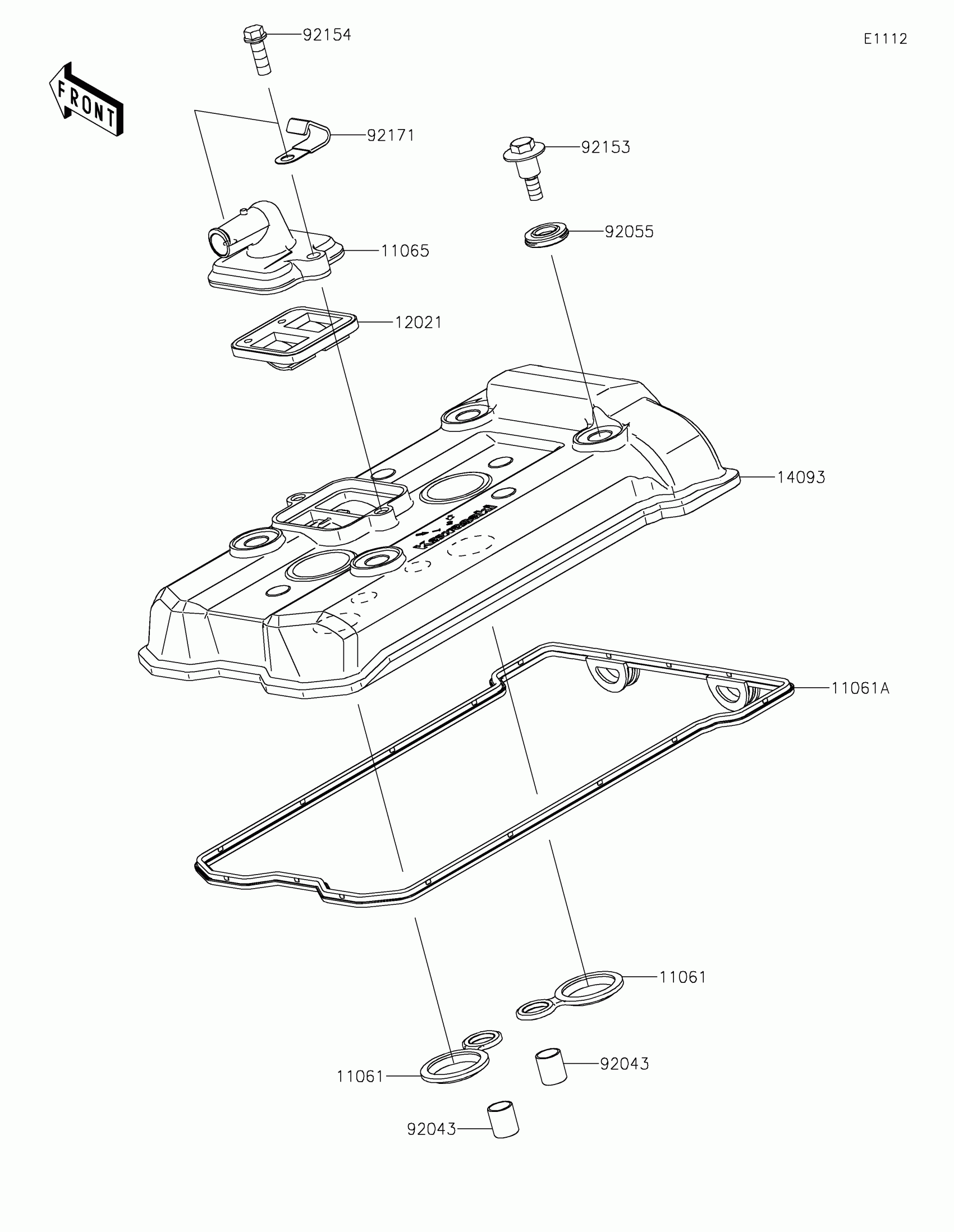

2022 Kawasaki Z650RS Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,SPARK PLUG HOLE

11061-0105

1
Out of stock

11061A

GASKET,HEAD COVER

11061-1184

1
Out of stock

11065

CAP

11065-1320

1
Out of stock

12021

VALVE-ASSY-REED

12021-0708

1
Out of stock

14093

COVER,HEAD

14093-0501

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock

92055

RING-O

92055-0187

1
Out of stock

92153

BOLT,HEAD COVER

92153-0793

1
Out of stock

92154

BOLT,FLANGED,6X18

92154-1775

1
Out of stock

92171

CLAMP

92171-0813

1
Out of stock
