2022 Kawasaki Z650RS Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

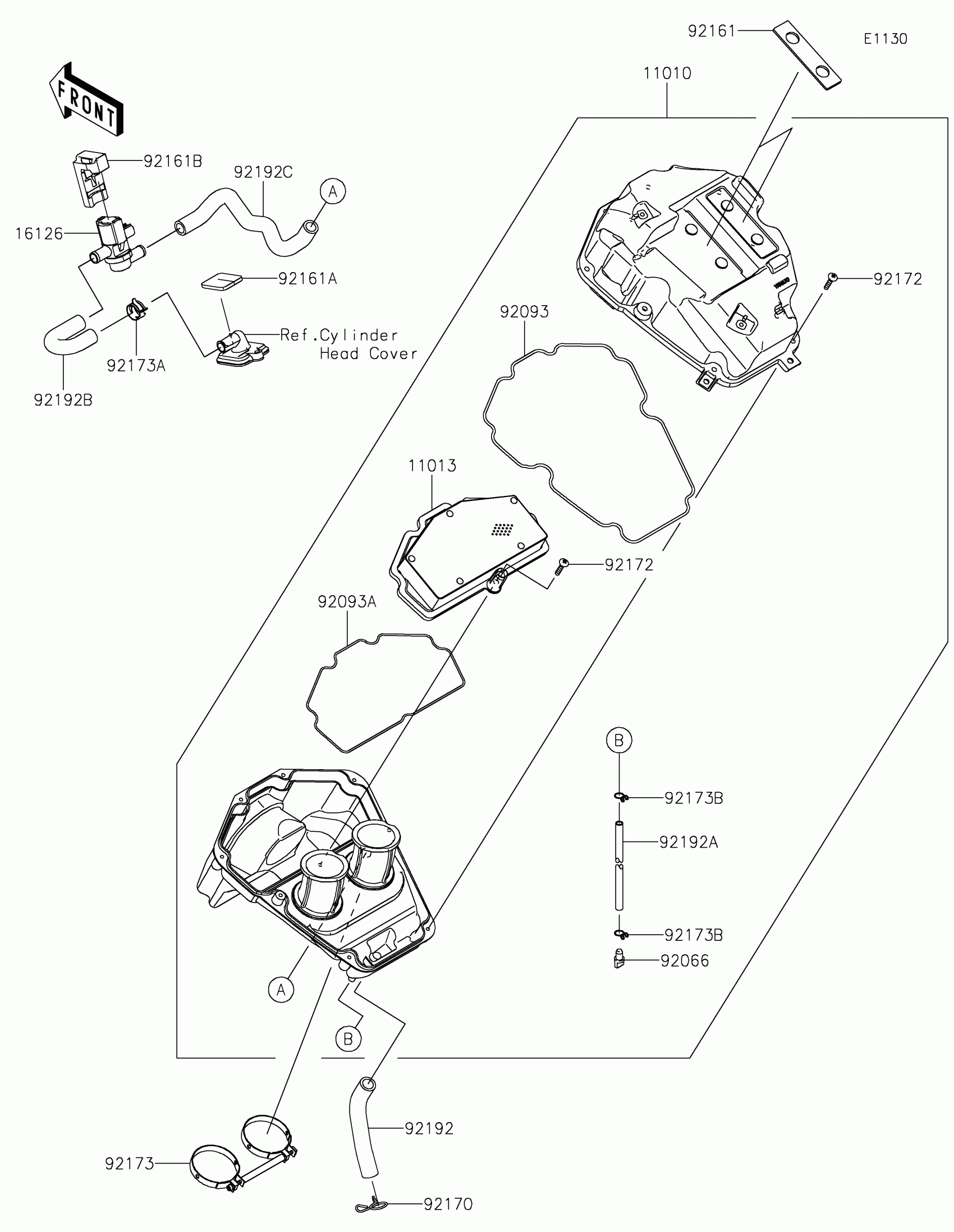

2022 Kawasaki Z650RS Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-0869

1

$377.23

In stock

11013

ELEMENT-AIR FILTER

11013-0745

1

$43.21

In stock

16126

VALVE,AIR SWITCHING

16126-0743

1

$90.36

In stock

92066

PLUG,DRAIN

92066-0782

1

$9.97

In stock

92093

SEAL

92093-0610

1

$17.14

In stock

92093A

SEAL,ELEMENT

92093-0611

1

$14.00

In stock

92161

DAMPER

92161-1428

1

$5.76

In stock

92161A

DAMPER

92161-1899

1

$1.66

In stock

92161B

DAMPER

92161-1933

1

$13.81

In stock

92170

CLAMP

92170-1017

1

$3.72

In stock

92172

SCREW,5X25

92172-0891

1

$1.66

In stock

92173

CLAMP

92173-1698

1

$19.25

In stock

92173A

CLAMP

92173-2344

1

$1.68

In stock

92173B

CLAMP,10MM

92173-2400

1

$2.44

In stock

92192

TUBE,BREATHER

92192-0958

1
Out of stock

92192A

TUBE,DRAIN,L=245

92192-1380

1
Out of stock

92192B

TUBE,ASV-HEAD

92192-1698

1
Out of stock

92192C

TUBE,A/C-ASV

92192-1699

1
Out of stock
