2022 Kawasaki Z650RS Crankcase Diagram

← All diagrams

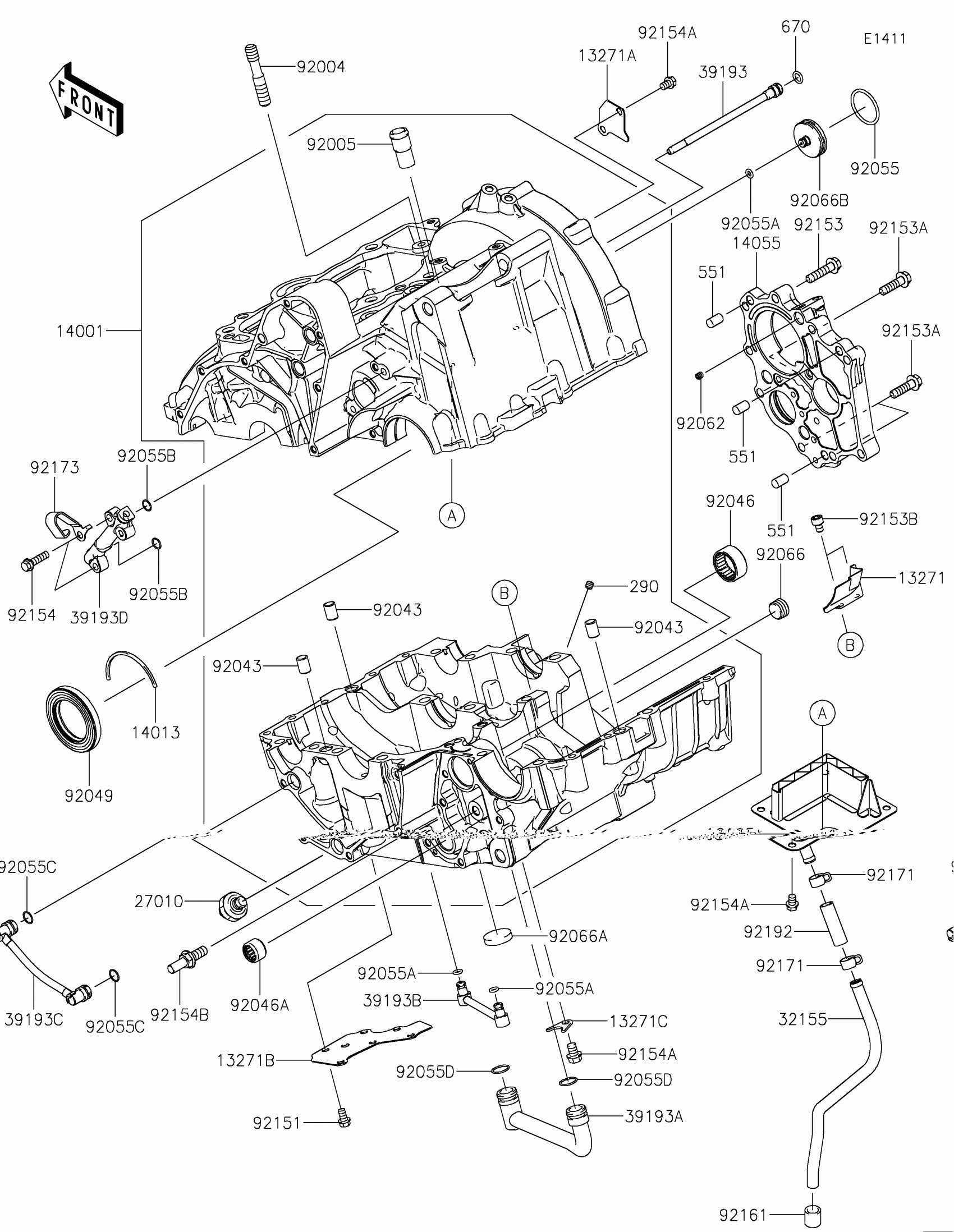

Find the part on the Crankcase diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki Z650RS Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13271

PLATE,OIL SHIELDING

13271-0575

1
Out of stock

13271A

PLATE

13271-0577

1
Out of stock

13271B

PLATE

13271-0584

1
Out of stock

13271C

PLATE,OIL PIPE

13271-1187

1
Out of stock

14001

SET-CRANKCASE

14001-0662

1
Out of stock

14013

RING-POSITION,T=1.98

14013-1004

1
Out of stock

14055

1

$107.94

In stock

16165

SEPARATOR,BREATHER

16165-0056

1

$62.56

In stock

27010

SWITCH,OIL PRESSURE

27010-1313

1

$36.57

In stock

32155

PIPE,BREATHER

32155-0891

1

$13.47

In stock

39193

PIPE-OIL

39193-0564

1

$29.86

In stock

39193A

PIPE-OIL

39193-0565

1

$50.60

In stock

39193B

PIPE-OIL

39193-0566

1

$25.85

In stock

39193C

PIPE-OIL

39193-0567

1

$50.60

In stock

39193D

PIPE-OIL

39193-0569

1

$68.39

In stock

92004

STUD,10X34.5

92004-0024

1
Out of stock

92005

FITTING,BREATHER

92005-0713

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

92046

1

$13.32

In stock

92046A

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92049

SEAL-OIL,HTC40628

92049-1501

1
Out of stock

92055

RING-O,29.7X2.4

92055-0006

1
Out of stock

92055A

RING-O,4.8MM

92055-0845

1
Out of stock

92055B

RING-O,8.8MM

92055-0846

1
Out of stock

92055C

RING-O,9.8MM

92055-0847

1
Out of stock

92055D

RING-O,13.8MM

92055-0848

1
Out of stock

92062

NOZZLE,5X6,SILVER

92062-1086

1

$3.69

In stock

92066

PLUG,PT3/8X10

92066-0003

1

$2.66

In stock

92066A

PLUG,25X5

92066-0061

1

$4.92

In stock

92066B

PLUG,INPUT SHAFT

92066-0715

1

$19.19

In stock

92151

1

$1.95

In stock

92153

BOLT,FLANGED,6X30

92153-0962

1
Out of stock

92153A

BOLT,FLANGED,7X26

92153-0963

1
Out of stock

92153B

BOLT,SOCKET,6X8

92153-1414

1
Out of stock

92154

BOLT,FLANGED,6X22

92154-0504

1

$1.66

In stock

92154A

BOLT,FLANGED,6X8

92154-0726

1

$1.66

In stock

92154B

BOLT,8X20

92154-4341

1

$5.39

In stock

92161

DAMPER

92161-0267

1

$3.11

In stock

92171

CLAMP

92171-1053

1

$1.02

In stock

92173

CLAMP

92173-1592

1

$2.59

In stock

92192

TUBE,9X12X38

92192-0225

1
Out of stock

290

1

$5.54

In stock

551

PIN-DOWEL,8X14

551A0814

1

$1.08

In stock

670

O RING,8MM

670D1508

1

$3.43

In stock
