2019 Kawasaki Z125 Pro Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

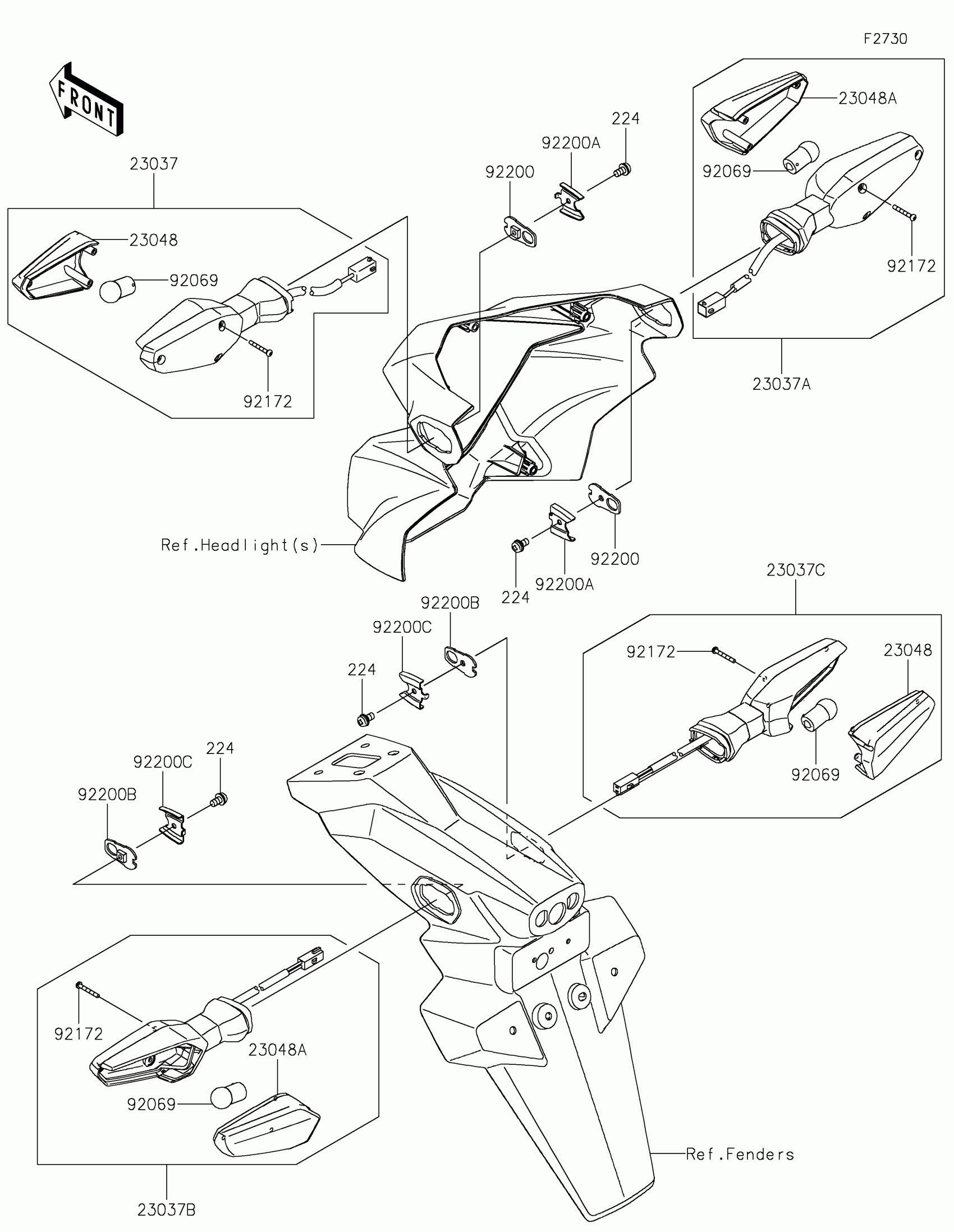

2019 Kawasaki Z125 Pro Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

224

SCREW-PAN-WP-CROS,4X8

224AB0408

1
Out of stock

23037

1

$56.16

In stock

23037A

1

$56.16

In stock

23037B

1

$56.16

In stock

23037C

1

$56.16

In stock

23048

LENS-SIGNAL LAMP

23048-0029

1

$11.98

In stock

23048A

LENS-SIGNAL LAMP

23048-0030

1

$11.98

In stock

92069

1

$3.71

In stock

92172

SCREW,6X19

92172-1116

1

$1.32

In stock

92200

WASHER,SIGNAL LAMP

92200-0164

1
Out of stock

92200A

WASHER,SIGNAL LAMP

92200-0165

1
Out of stock

92200B

WASHER,NUT 4MM

92200-0854

1
Out of stock

92200C

WASHER

92200-0855

1
Out of stock
