2019 Kawasaki Z125 Pro Generator Diagram

← All diagrams

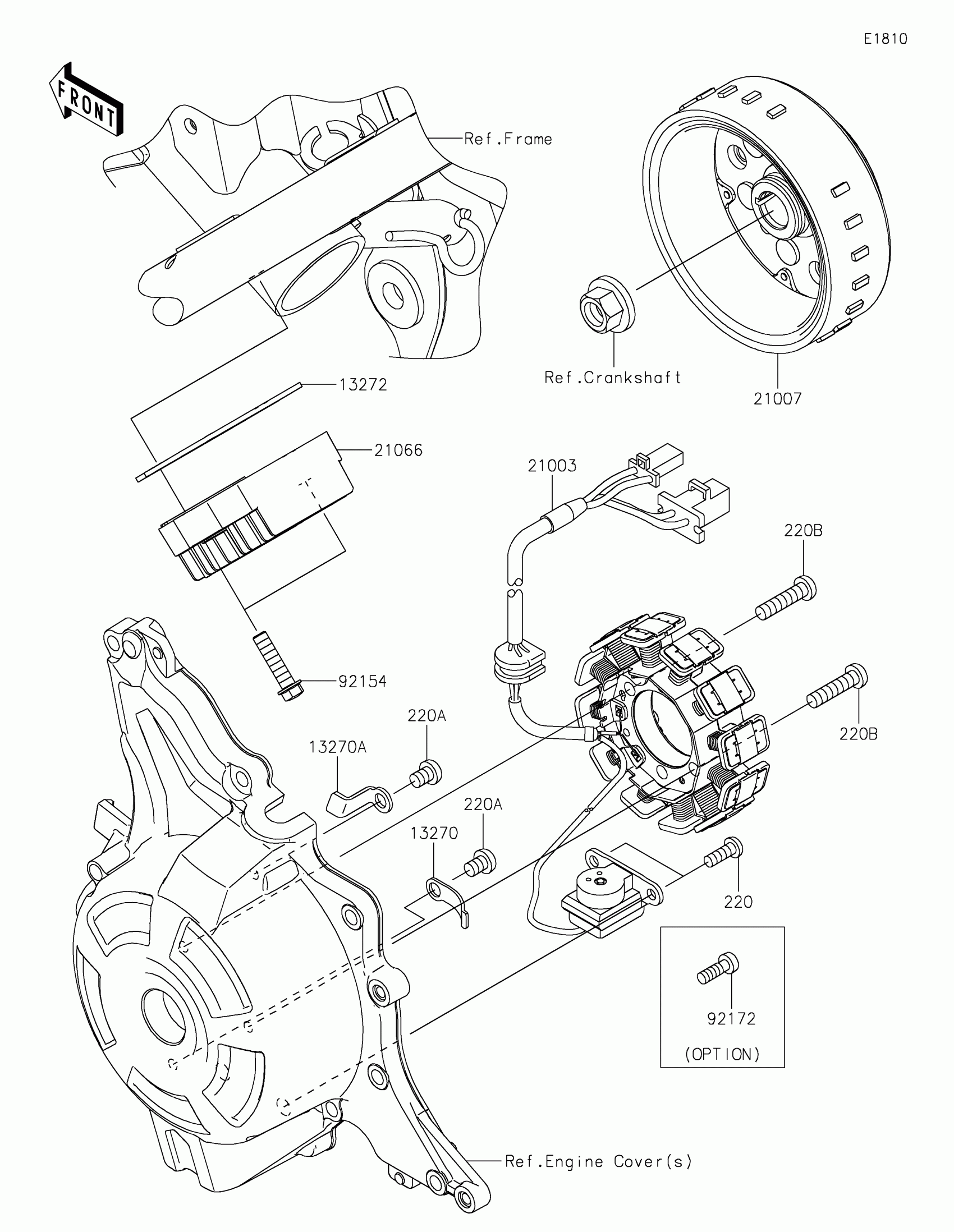

Find the part on the Generator diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki Z125 Pro Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13270

PLATE

13270-1754

1
Out of stock

13270A

PLATE

13270-1961

1
Out of stock

13272

PLATE

13272-2088

1

$3.56

In stock

21003

STATOR

21003-0170

1

$303.22

In stock

21007

ROTOR

21007-0631

1

$303.22

In stock

21066

REGULATOR-VOLTAGE

21066-0713

1

$230.45

In stock

220

1

$3.52

In stock

220A

SCREW-PAN-CROS,6X8

220AA0608

1

$0.63

In stock

220B

1

$2.27

In stock

92154

BOLT,FLANGED,6X25

92154-2273

1

$2.05

In stock

92172

SCREW,5X14

92172-1077

1

$0.44

In stock
