2019 Kawasaki Z125 Pro Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

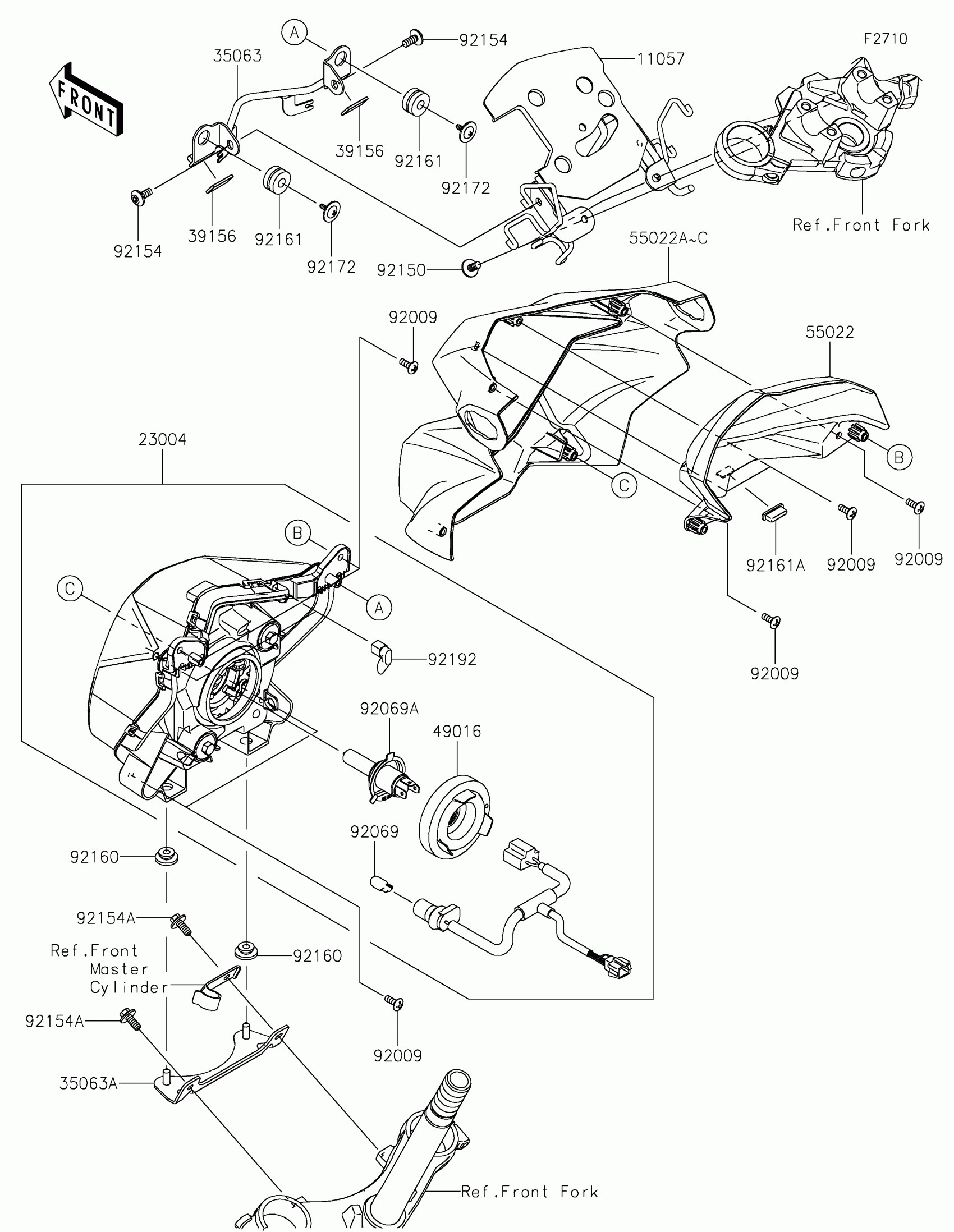

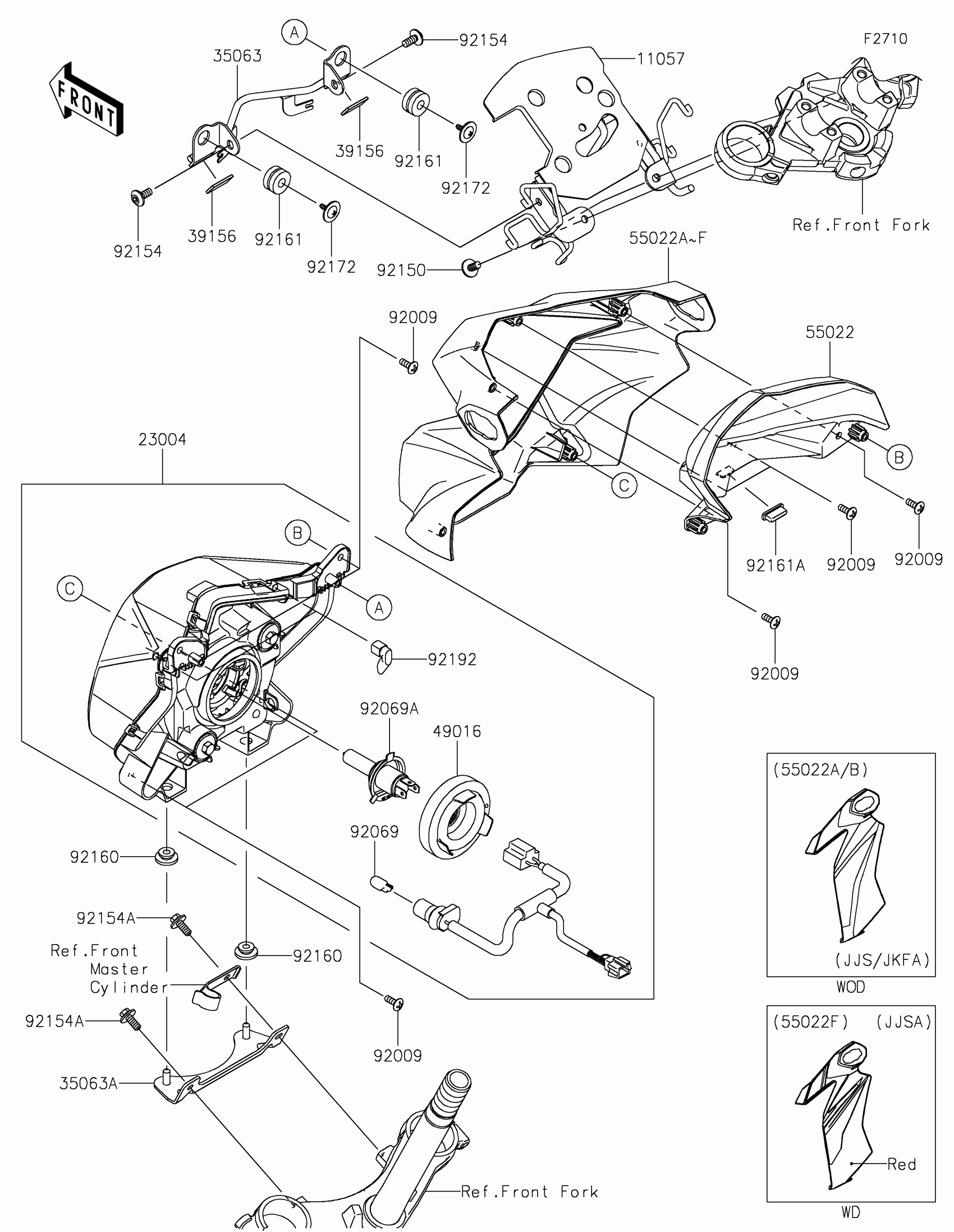

2019 Kawasaki Z125 Pro Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,HEAD LAMP

11057-0608

1

$101.28

In stock

23004

LAMP-HEAD

23004-0362

1

$345.18

In stock

35063

STAY

35063-1334

1

$8.69

In stock

35063A

STAY,HEAD LAMP

35063-1335

1

$11.00

In stock

39156

PAD,13X25X2

39156-2137

1

$0.71

In stock

49016

COVER-SEAL

49016-0627

1

$13.63

In stock

55022

COVER-HEAD LAMP,UPP

55022-0317

1

$44.27

In stock

55022B

1

$92.72

In stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92069

BULB,12V 5W

92069-0059

1
Out of stock

92069A

BULB,12V 35/35W

92069-0091

1

$36.21

In stock

92150

BOLT,6X14

92150-1340

1

$4.02

In stock

92154

BOLT,SOCKET,6X14

92154-2161

1

$1.10

In stock

92154A

BOLT,6X16

92154-2162

1

$1.10

In stock

92160

DAMPER

92160-1613

1

$2.97

In stock

92161

DAMPER

92161-0054

1

$4.15

In stock

92161A

DAMPER

92161-1813

1

$1.68

In stock

92172

1

$7.32

In stock

92192

TUBE,BREATHER

92192-1528

1
Out of stock
