2019 Kawasaki Z125 Pro Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

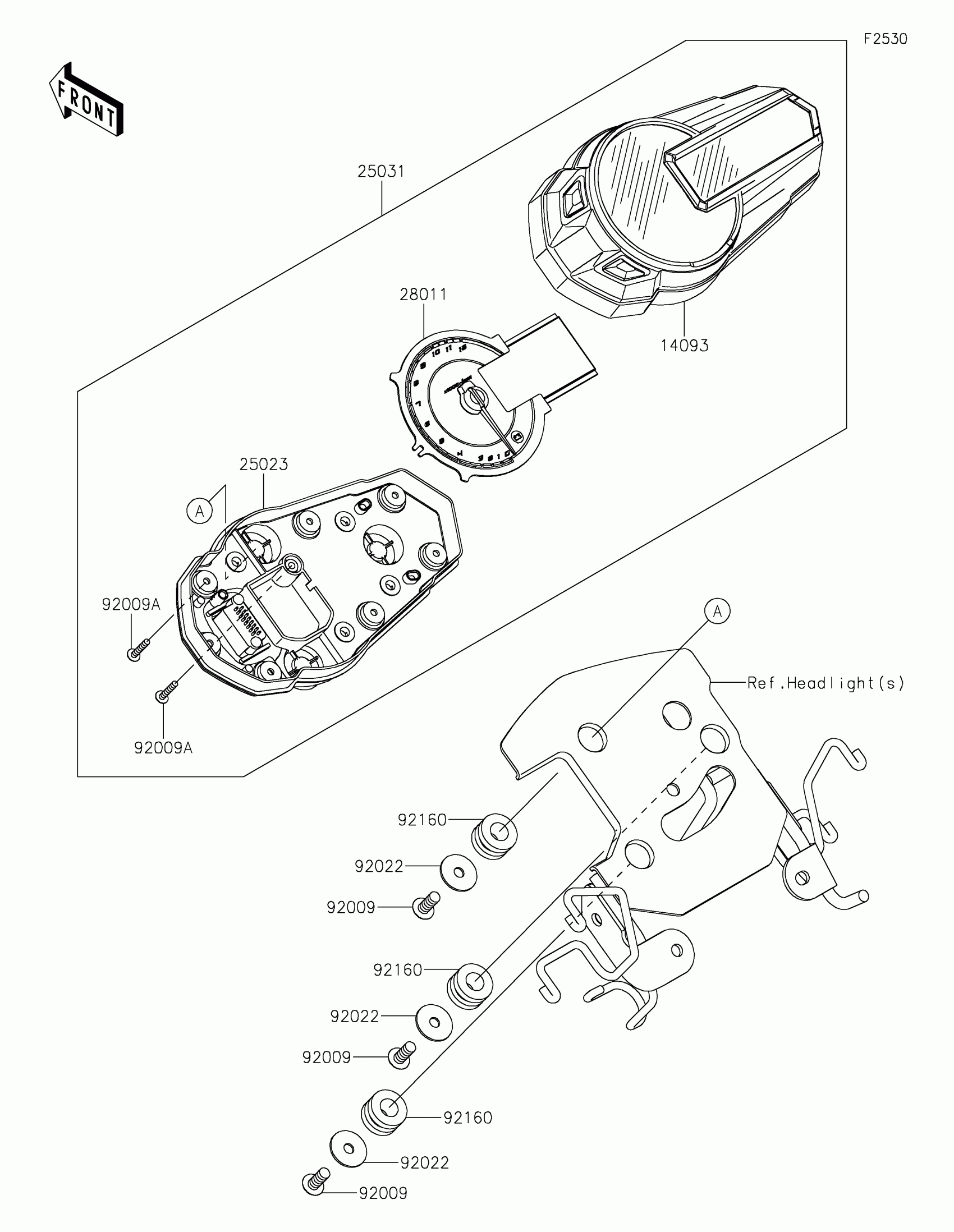

2019 Kawasaki Z125 Pro Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER

14093-0470

1

$80.06

In stock

25023

COVER-METER CASE

25023-0122

1

$109.15

In stock

25031

1

$443.45

In stock

28011

METER,TA&LCD

28011-0656

1

$248.38

In stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92009A

SCREW,TAPPING,3X16

92009-1391

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-1405

1

$3.43

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock
