2019 Kawasaki Z125 Pro Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

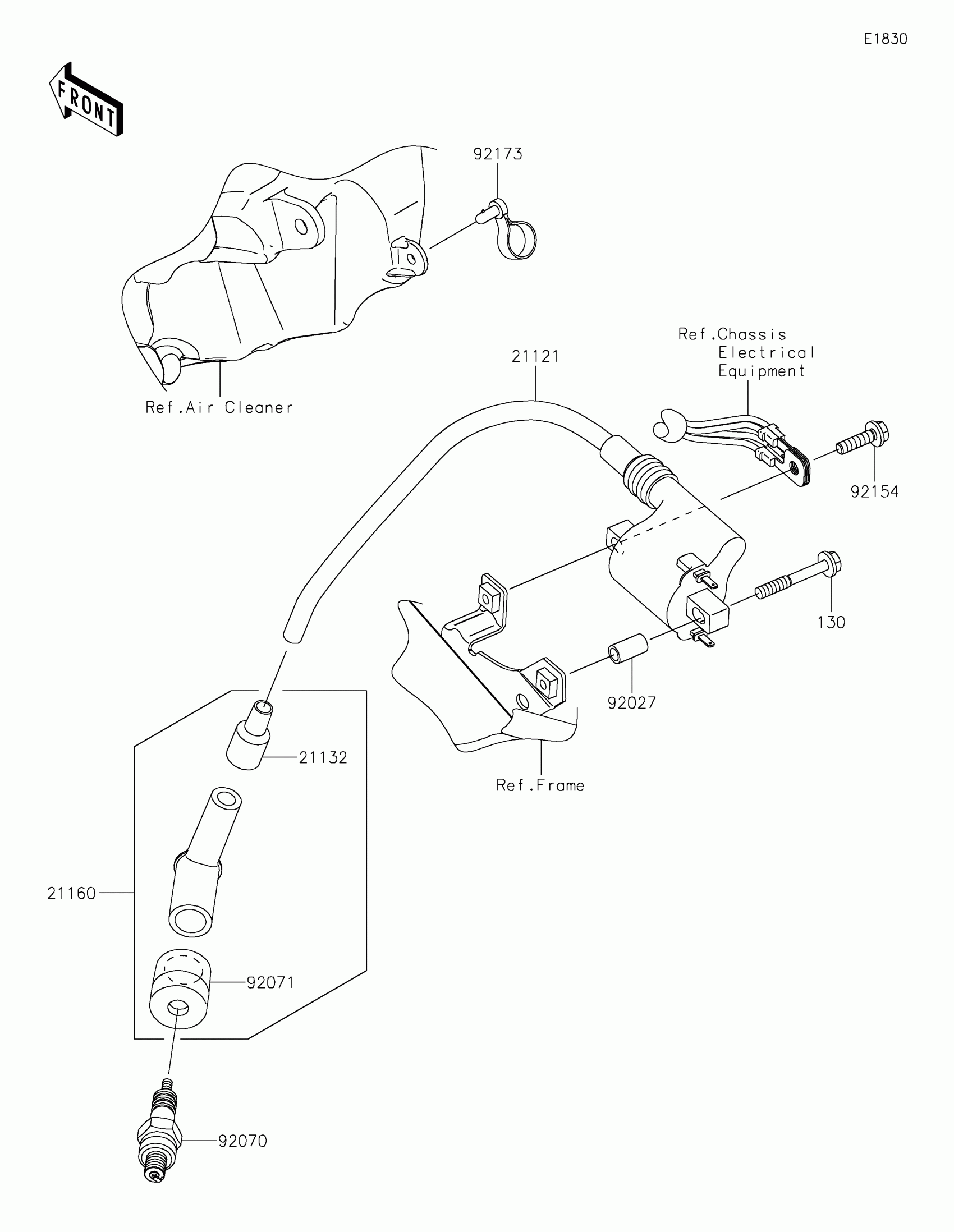

2019 Kawasaki Z125 Pro Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X35

130BA0535

1

$3.69

In stock

21121

COIL-IGNITION

21121-0727

1

$92.47

In stock

21132

1

$3.39

In stock

21160

CAP-ASSY-PLUG

21160-1085

1

$27.25

In stock

92027

COLLAR,5.6X8X14.5

92027-1789

1

$4.42

In stock

92070

1

$2.92

In stock

92071

GROMMET,PLUG CAP

92071-1184

1

$5.37

In stock

92154

BOLT,FLANGED,5X18

92154-0785

1

$0.85

In stock

92173

CLAMP,SPEED,L=58

92173-1077

1

$5.71

In stock
