2019 Kawasaki Z125 Pro Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

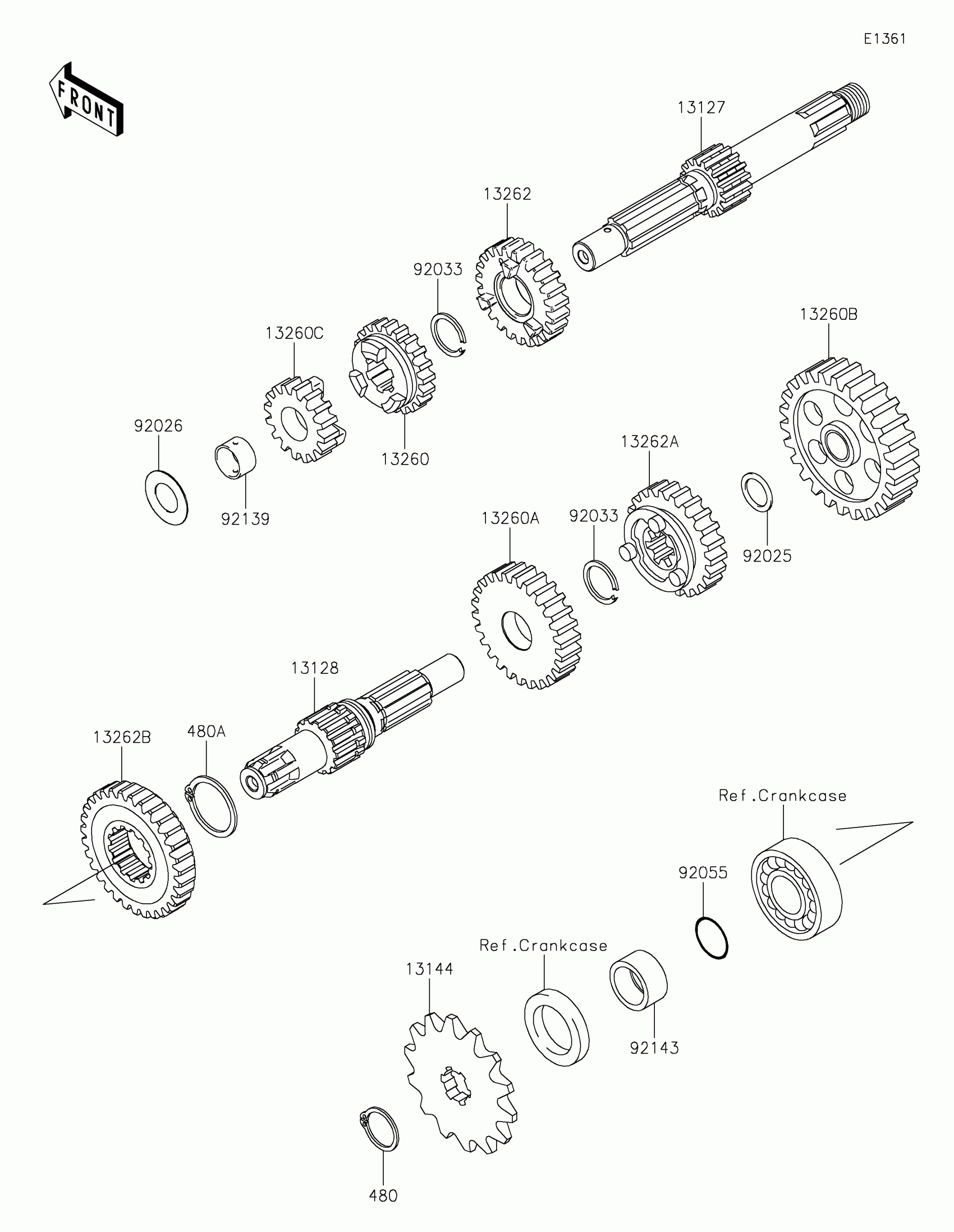

2019 Kawasaki Z125 Pro Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13127

1

$131.72

In stock

13128

1

$123.10

In stock

13144

SPROCKET-OUTPUT

13144-0072

1

$25.24

In stock

13260

GEAR,INPUT 3RD,20T

13260-1839

1
Out of stock

13260A

GEAR,OUTPUT 3RD,27T

13260-1842

1
Out of stock

13260B

GEAR,OUTPUT LOW,36T

13260-1862

1
Out of stock

13260C

GEAR,INPUT 2ND,16T

13260-1986

1
Out of stock

13262

GEAR,INPUT 4TH,23T

13262-0666

1
Out of stock

13262A

GEAR,OUTPUT 4TH,25T

13262-0667

1
Out of stock

13262B

GEAR,OUTPUT 2ND,31T

13262-0913

1
Out of stock

480

1

$0.64

In stock

480A

1

$4.98

In stock

92025

SHIM

92025-1280

1
Out of stock

92026

SPACER

92026-1091

1

$3.85

In stock

92033

RING-SNAP,17MM

92033-1060

1

$3.39

In stock

92055

RING-O,16.8MM

92055-1235

1

$4.37

In stock

92139

BUSHING

92139-1102

1

$12.22

In stock

92143

COLLAR,SPROCKET

92143-1680

1

$10.24

In stock
