2019 Kawasaki Z125 Pro Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

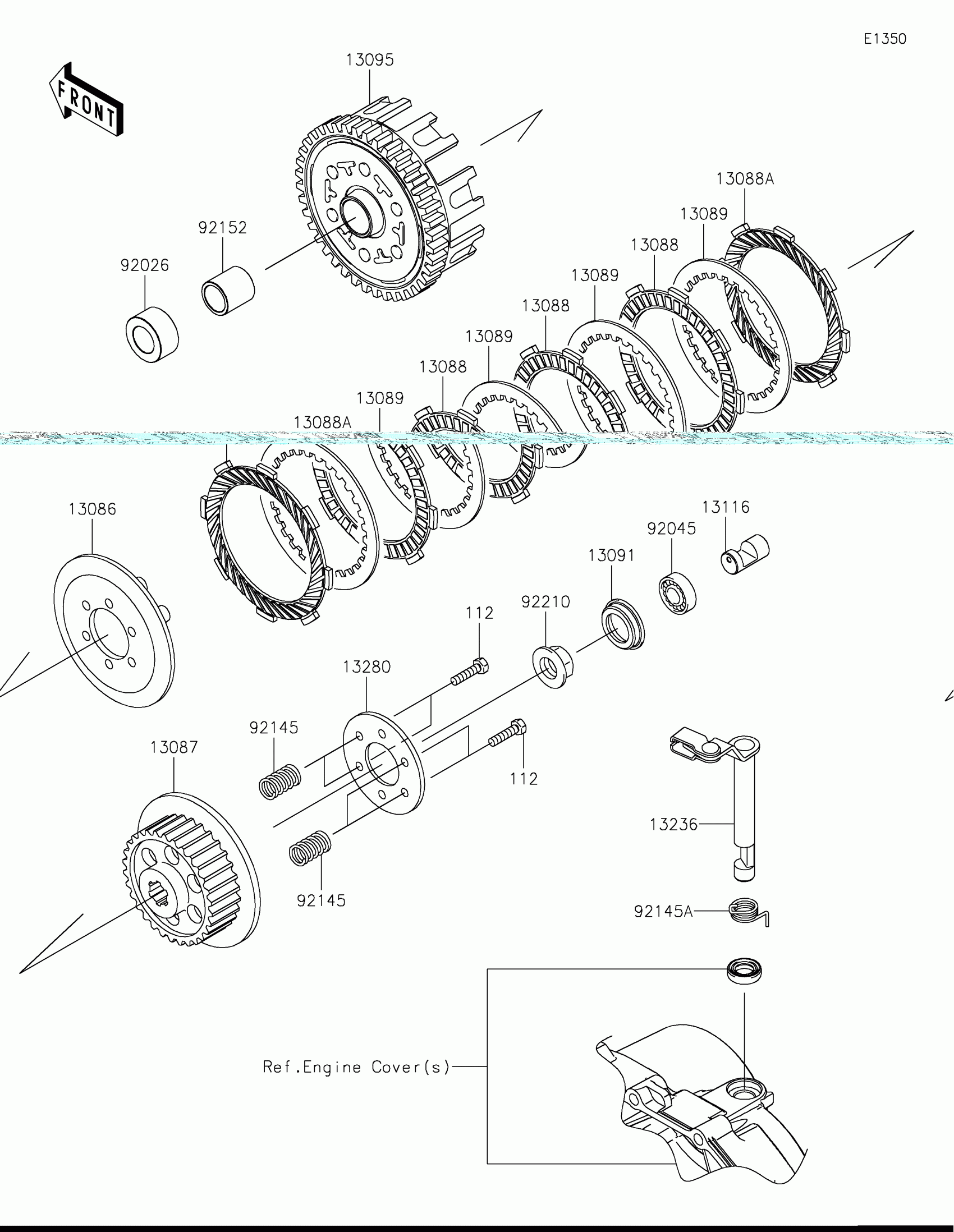

2019 Kawasaki Z125 Pro Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET,5X20

112BA0520

1

$4.37

In stock

13086

WHEEL-CLUTCH

13086-1065

1

$26.70

In stock

13087

HUB-CLUTCH

13087-1151

1

$41.45

In stock

13088

PLATE-FRICTION

13088-0048

1

$10.03

In stock

13088A

PLATE-FRICTION

13088-1142

1

$9.93

In stock

13089

PLATE-CLUTCH

13089-1087

1

$10.14

In stock

13091

HOLDER

13091-1787

1

$10.24

In stock

13095

HOUSING-COMP-CLUTCH

13095-1403

1

$97.35

In stock

13116

ROD-PUSH

13116-0731

1

$4.98

In stock

13236

1

$56.16

In stock

13280

HOLDER,CLUTCH

13280-0370

1

$16.36

In stock

92026

SPACER

92026-1605

1

$3.76

In stock

92045

BEARING-BALL,#628

92045-1123

1

$21.64

In stock

92145

SPRING,CLUTCH HUB

92145-1456

1

$1.34

In stock

92145A

SPRING

92145-1582

1

$1.86

In stock

92152

COLLAR,12X22X22.7

92152-0929

1

$13.66

In stock

92210

NUT,14MM

92210-1374

1
Out of stock
