2019 Kawasaki Z125 Pro Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

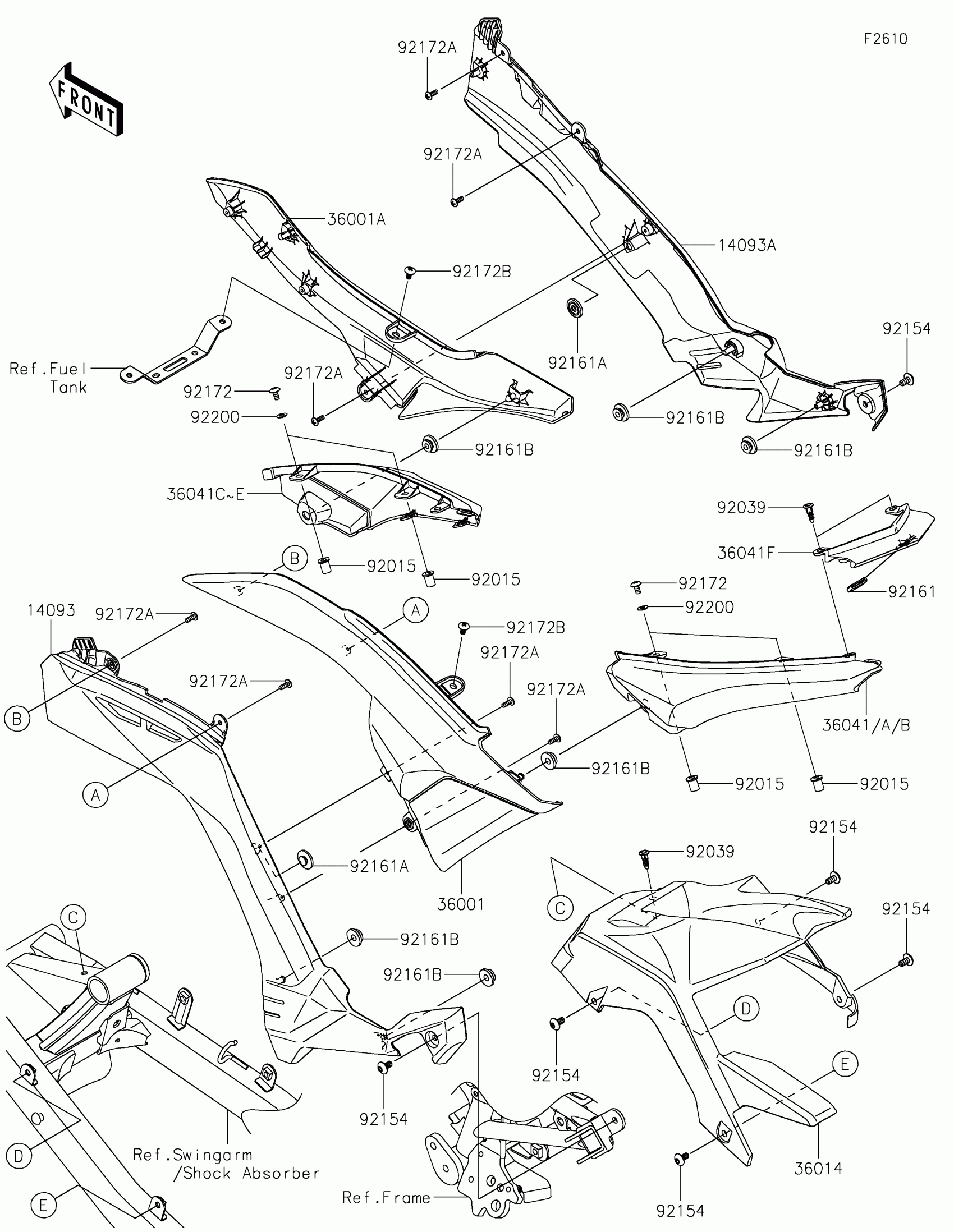

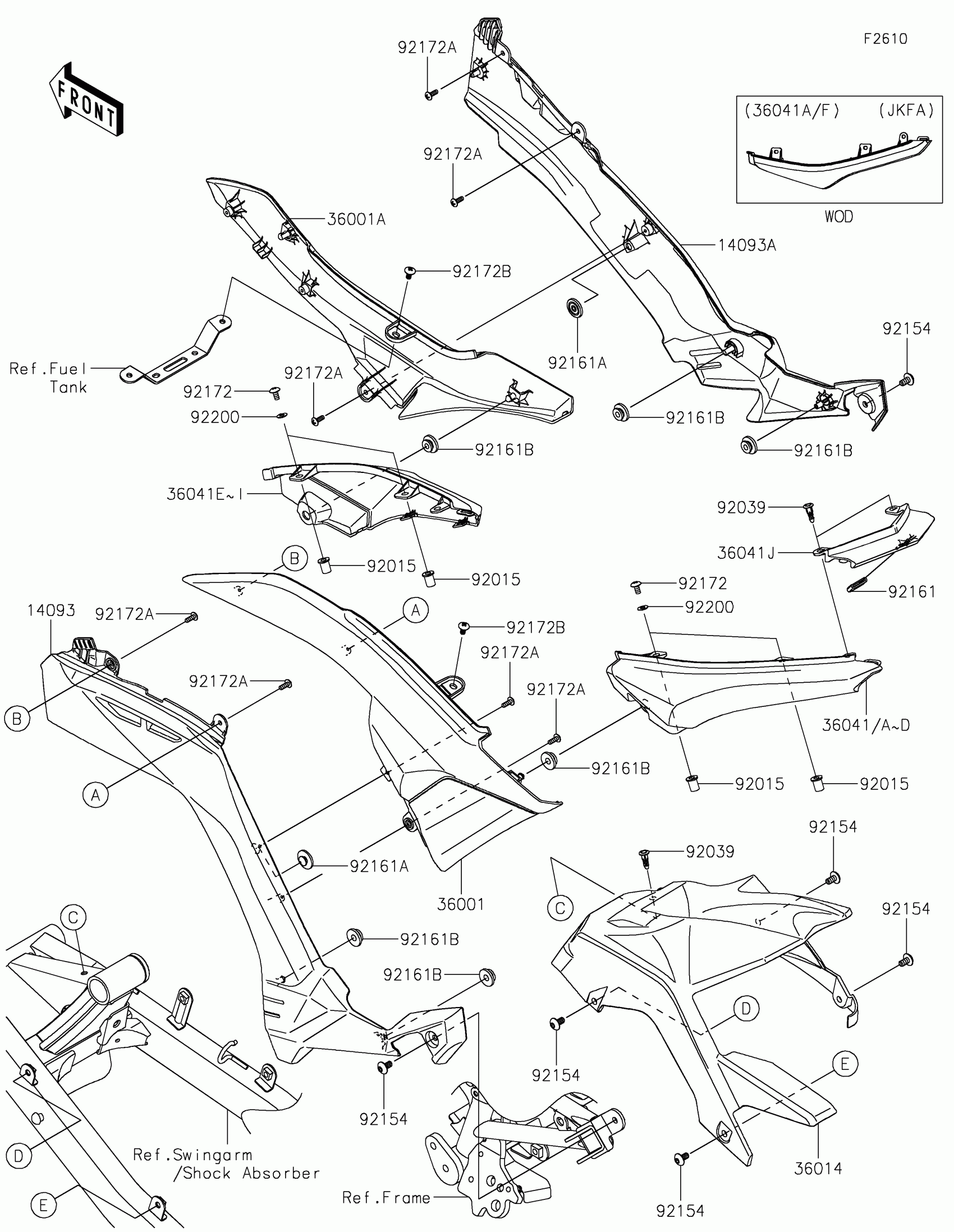

2019 Kawasaki Z125 Pro Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,PIVOT,LH,F.BLACK

14093-0330-6Z

1
Out of stock

14093A

COVER,PIVOT,RH,F.BLACK

14093-0331-6Z

1
Out of stock

36001

COVER-SIDE,LH,F.BLACK

36001-0634-6Z

1
Out of stock

36001A

COVER-SIDE,RH,F.BLACK

36001-0635-6Z

1
Out of stock

36014

CASE-CHAIN

36014-0568

1
Out of stock

36041A

COVER-TAIL,LH,C.L.GREEN

36041-0020-51P

1
Out of stock

36041F

COVER-TAIL,RH,C.L.GREEN

36041-0021-51P

1
Out of stock

36041J

COVER-TAIL,F.BLACK

36041-0022-6Z

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92039

RIVET

92039-0709

1
Out of stock

92154

BOLT,SOCKET,6X12

92154-1484

1
Out of stock

92161

DAMPER,12X23

92161-1367

1
Out of stock

92161A

DAMPER,8X22X10

92161-1685

1
Out of stock

92161B

DAMPER

92161-1810

1
Out of stock

92172

SCREW,5X16

92172-0322

1
Out of stock

92172A

SCREW,4X12

92172-0959

1
Out of stock

92172B

SCREW,5X10

92172-1090

1
Out of stock

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

1
Out of stock
