2019 Kawasaki Z125 Pro Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

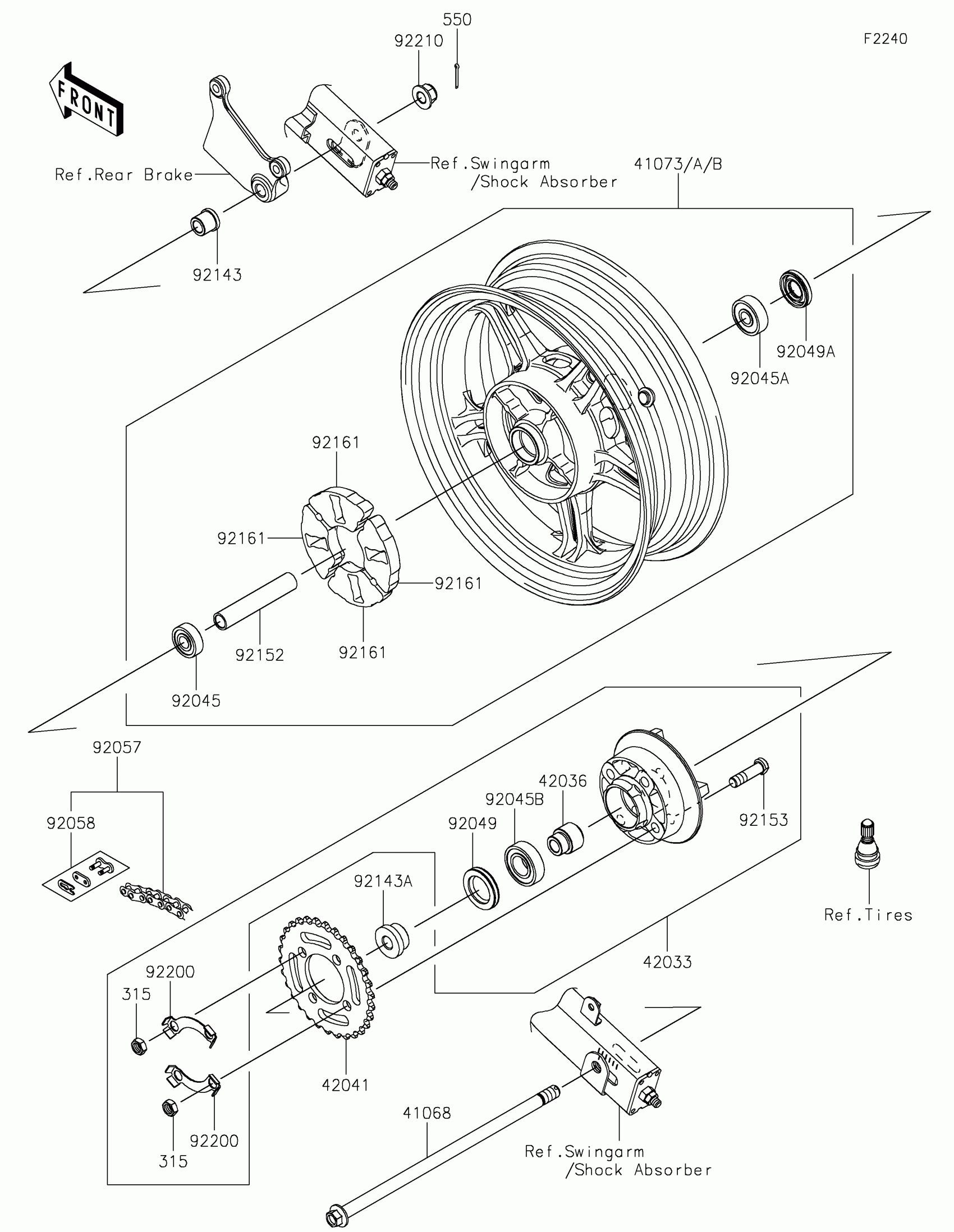

2019 Kawasaki Z125 Pro Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

315

NUT-HEX-FINE,10MM

315BA1000

1
Out of stock

41068

AXLE,12X290

41068-0610

1
Out of stock

41073A

WHEEL-ASSY,RR,G.BLACK

41073-0673-QT

1
Out of stock

42033

COUPLING-ASSY,RR HUB

42033-0575

1
Out of stock

42036

SLEEVE,RR HUB COUPLING,L=29

42036-1292

1
Out of stock

42041

SPROCKET-HUB,30T

42041-0154

1
Out of stock

550

PIN-COTTER,2.5X20

550AA2520

1
Out of stock

92045

BEARING-BALL,6201-LLHC3P6

92045-0161

1
Out of stock

92045A

BEARING-BALL,6301-LLHC3P6

92045-0162

1
Out of stock

92045B

BEARING-BALL,6004-LUC3P6

92045-0163

1
Out of stock

92049

SEAL-OIL,SC26X42X8

92049-1490

1
Out of stock

92049A

SEAL-OIL,KCY19X37X7

92049-1491

1
Out of stock

92057

CHAIN,DRIVE,DID420AD

92057-0738

1
Out of stock

92058

JOINT-CHAIN

92058-0050

1
Out of stock

92143

COLLAR,RR AXLE,L=19

92143-1420

1
Out of stock

92143A

COLLAR,RR AXLE,LH,L=17

92143-1533

1
Out of stock

92152

COLLAR,12.7X17.3X94.5

92152-2140

1
Out of stock

92153

BOLT,10X36

92153-1120

1
Out of stock

92161

DAMPER,RR HUB SHOCK

92161-0084

1
Out of stock

92200

WASHER,LOCK

92200-0903

1
Out of stock

92210

NUT,LOCK,FLANGED,12MM

92210-1513

1
Out of stock
