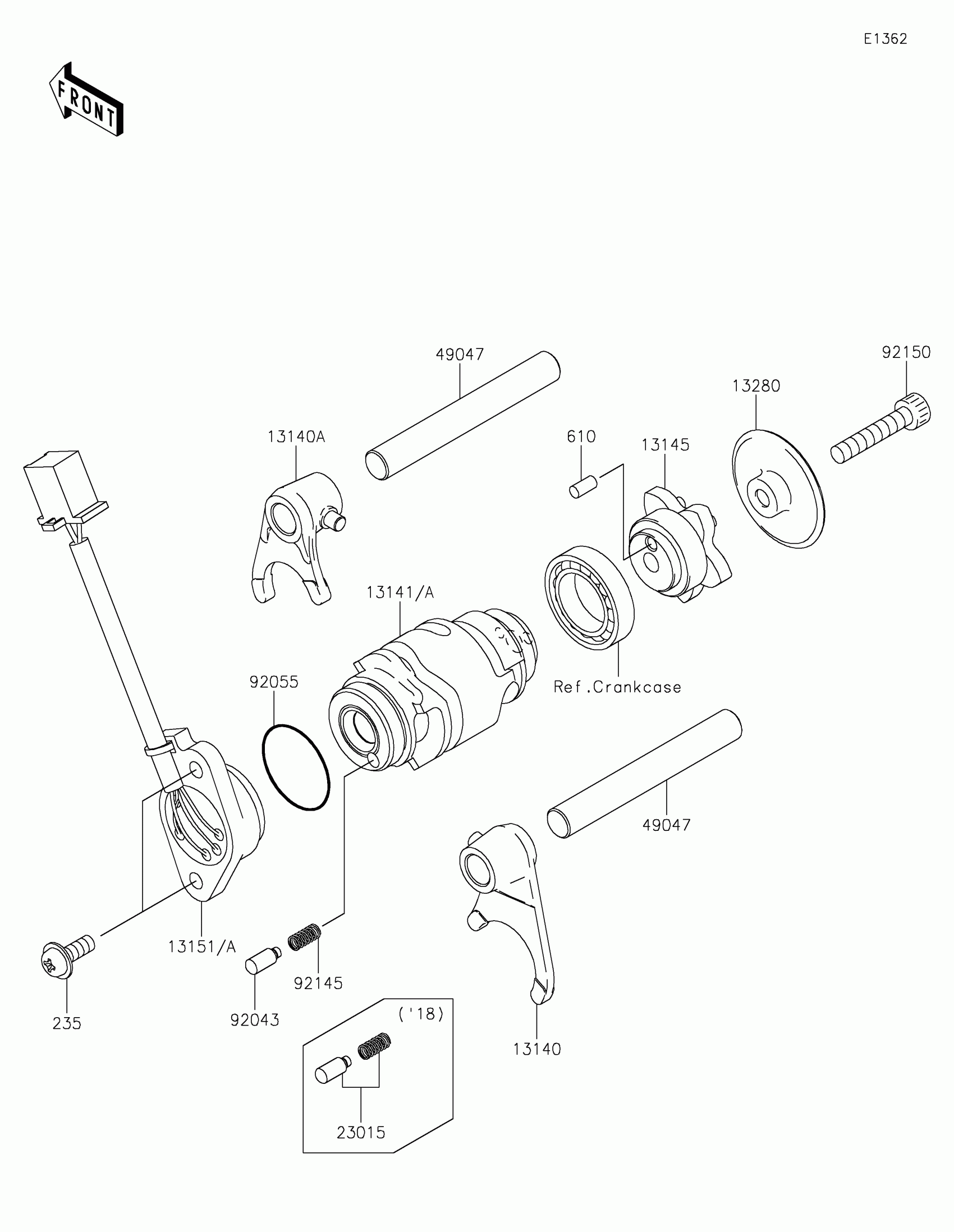

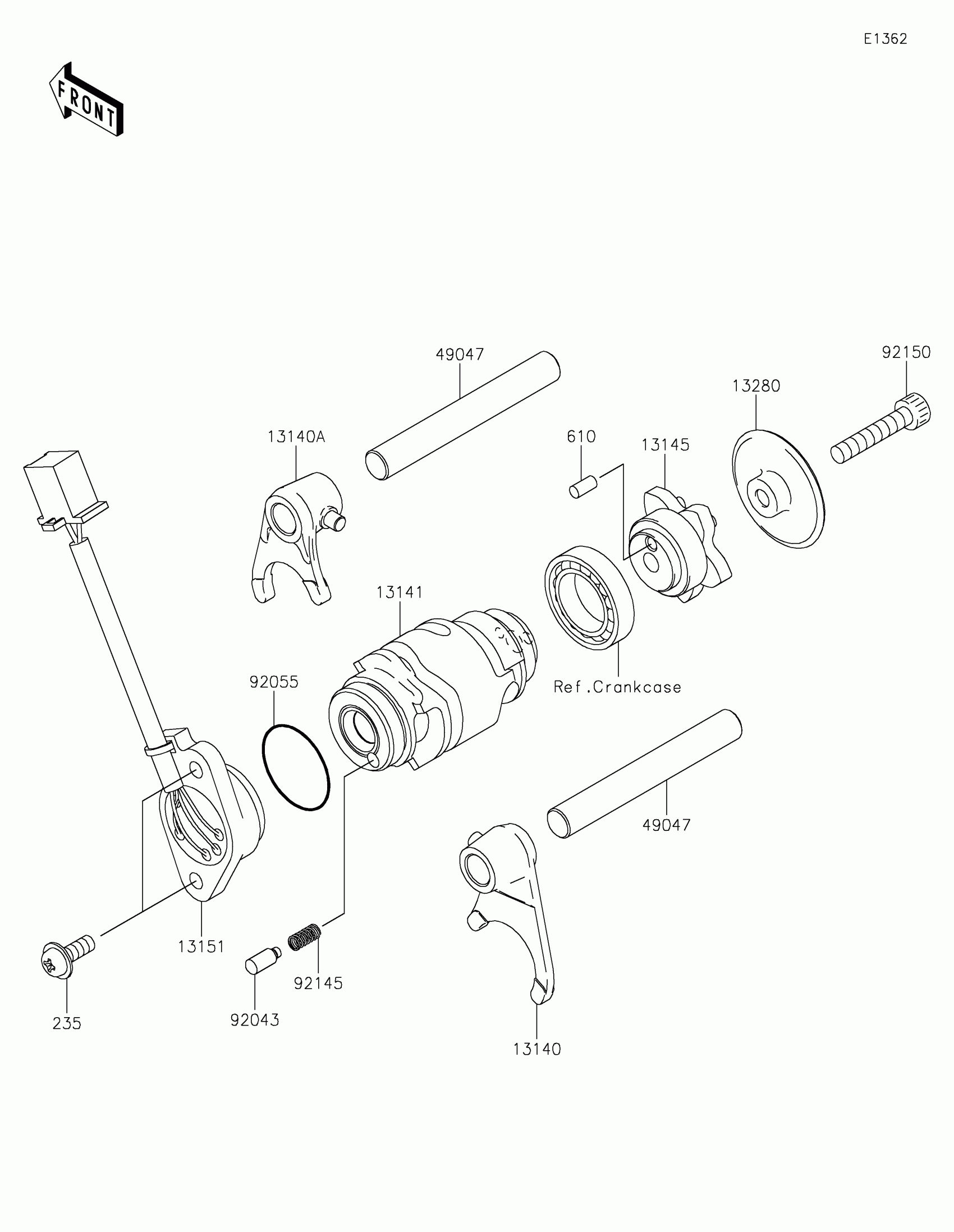

Kawasaki Z125 PRO Gear Change Drum/Shift Fork(s) Diagram

Description

Price

13140

FORK-SHIFT,LOW&3RD

13140-0058

$79.89

13140A

FORK-SHIFT,2ND&4TH

13140-0059

$36.53

13141A

DRUM-CHANGE

13141-0603

$98.41

13145

CAM-CHANGE DRUM

13145-0049

$58.05

13151A

SWITCH-COMP,GEAR POSITION

13151-0584

$92.72

13280

HOLDER

13280-1228

$4.47

235

SCREW-PAN-WP-CROS,5X14

235AA0514

$3.49

49047

ROD-SHIFT

49047-1058

$10.54

610

ROLLER,4X8

610A0408

$3.29

92043

92043-0979

$4.98

92055

RING-O,27.7X2.4

92055-0827

$3.10

92145

SPRING

92145-1414

$3.03

92150

BOLT,SOCKET,6X30

92150-1433

$3.71
