2006 Kawasaki Z1000 Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2006 Kawasaki Z1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

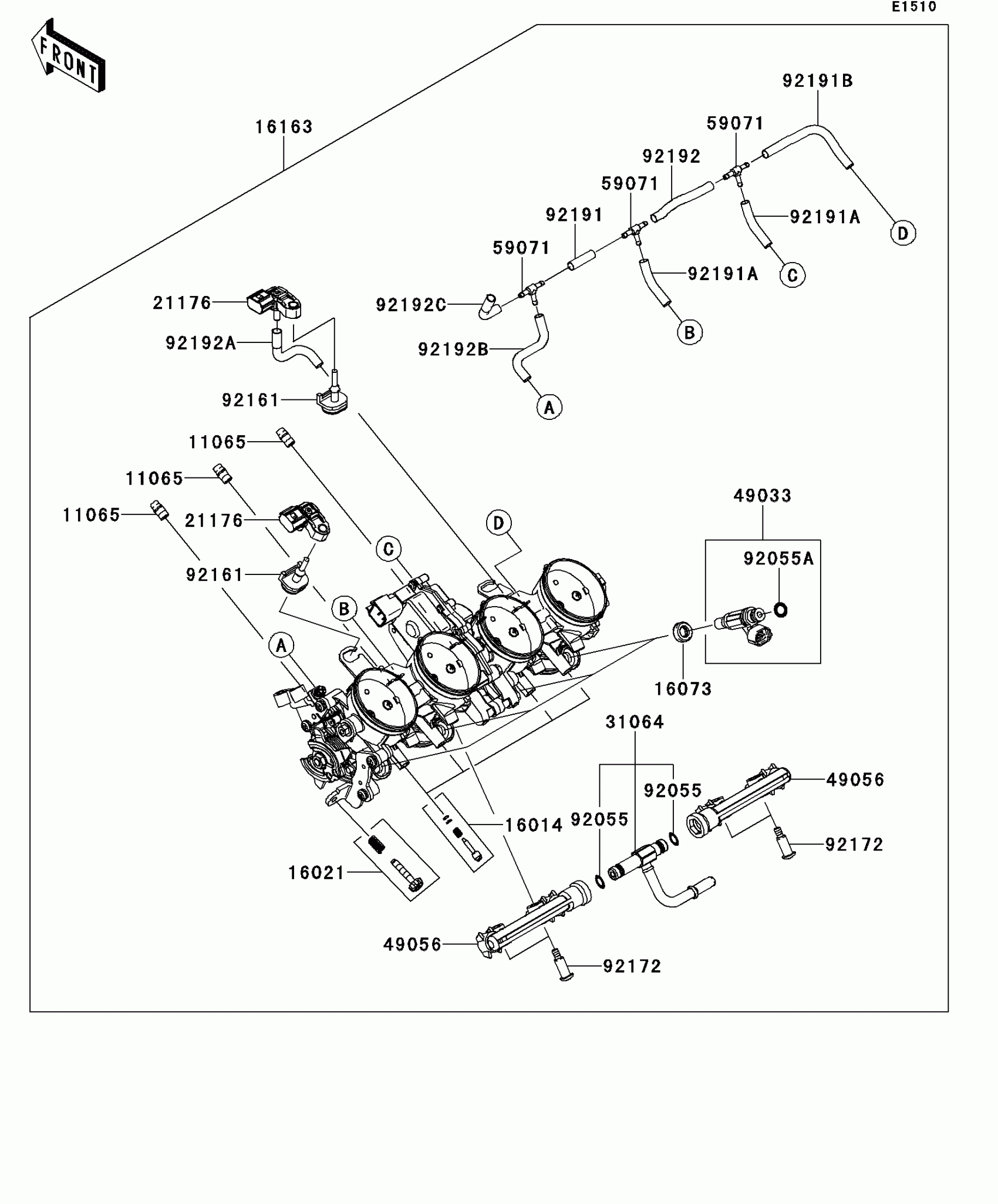

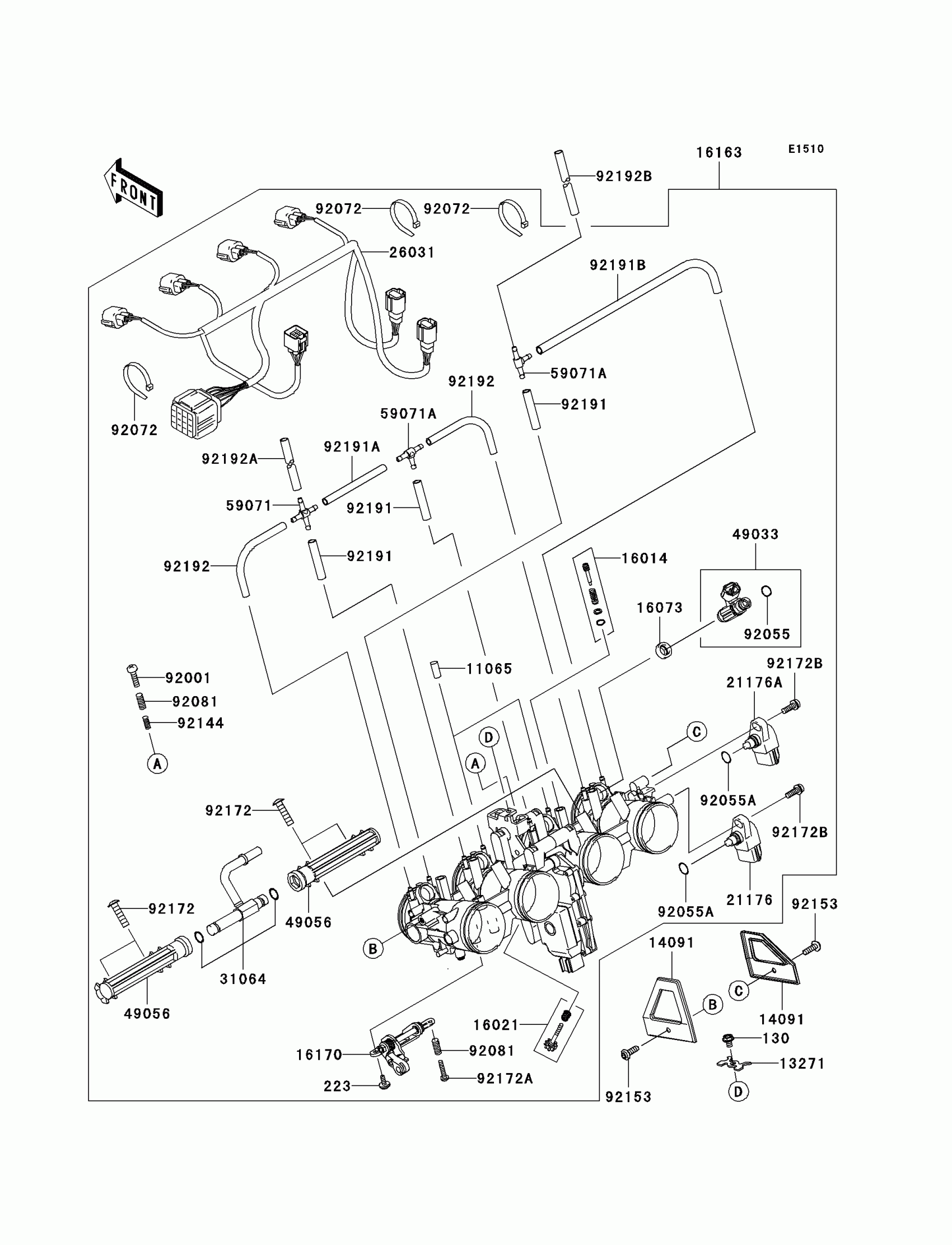

2006 Kawasaki Z1000 Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X8

130G0508

1
Out of stock

223

SCREW-PAN-WS-CROS,4X10

223D0410

1
Out of stock

11065

CAP

11065-0018

1

$4.84

In stock

13271

PLATE

13271-0056

1
Out of stock

14091

COVER,THROTTLE-BODY

14091-0055

1

$11.37

In stock

16014

SCREW-PILOT AIR

16014-0002

1

$23.08

In stock

16021

SCREW-THROTTLE STOP

16021-0002

1

$81.14

In stock

16073

INSULATOR

16073-3707

1

$4.90

In stock

16163

THROTTLE-ASSY

16163-0032

1

$2,039.47

In stock

16170

LINK-ASSY

16170-0004

1

$244.62

In stock

21176

SENSOR,TPS

21176-0002

1

$222.19

In stock

21176A

SENSOR,TPS

21176-0003

1

$222.19

In stock

26031

HARNESS

26031-0040

1

$485.76

In stock

31064

PIPE-COMP

31064-0005

1

$23.15

In stock

49033

NOZZLE-INJECTION

49033-1060

1

$137.70

In stock

49056

PIPE-INJECTION

49056-0001

1

$105.87

In stock

59071

JOINT,4WAY

59071-0014

1

$13.83

In stock

59071A

JOINT,3WAY,T

59071-3752

1

$8.09

In stock

92001

1

$15.88

In stock

92055

1

$1.64

In stock

92055A

RING-O

92055-1671

1

$3.29

In stock

92072

BAND,SUB-HARNESS

92072-0012

1

$3.97

In stock

92081

SPRING

92081-1620

1

$3.94

In stock

92144

SPRING

92144-1451

1

$9.29

In stock

92153

BOLT,SOCKET,5X16

92153-1244

1
Out of stock

92172

1

$2.29

In stock

92172A

1

$2.56

In stock

92172B

SCREW

92172-0080

1

$4.42

In stock

92191

TUBE,3X7X30

92191-0025

1

$2.00

In stock

92191A

TUBE,3X7X82

92191-0036

1

$4.10

In stock

92191B

TUBE,3X7X265

92191-0038

1

$12.92

In stock

92192

TUBE,3X7X95

92192-0018

1
Out of stock

92192A

TUBE,3X7X170

92192-0019

1
Out of stock

92192B

TUBE,3X7X275

92192-0062

1
Out of stock
