2005 Kawasaki Z1000 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2005 Kawasaki Z1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

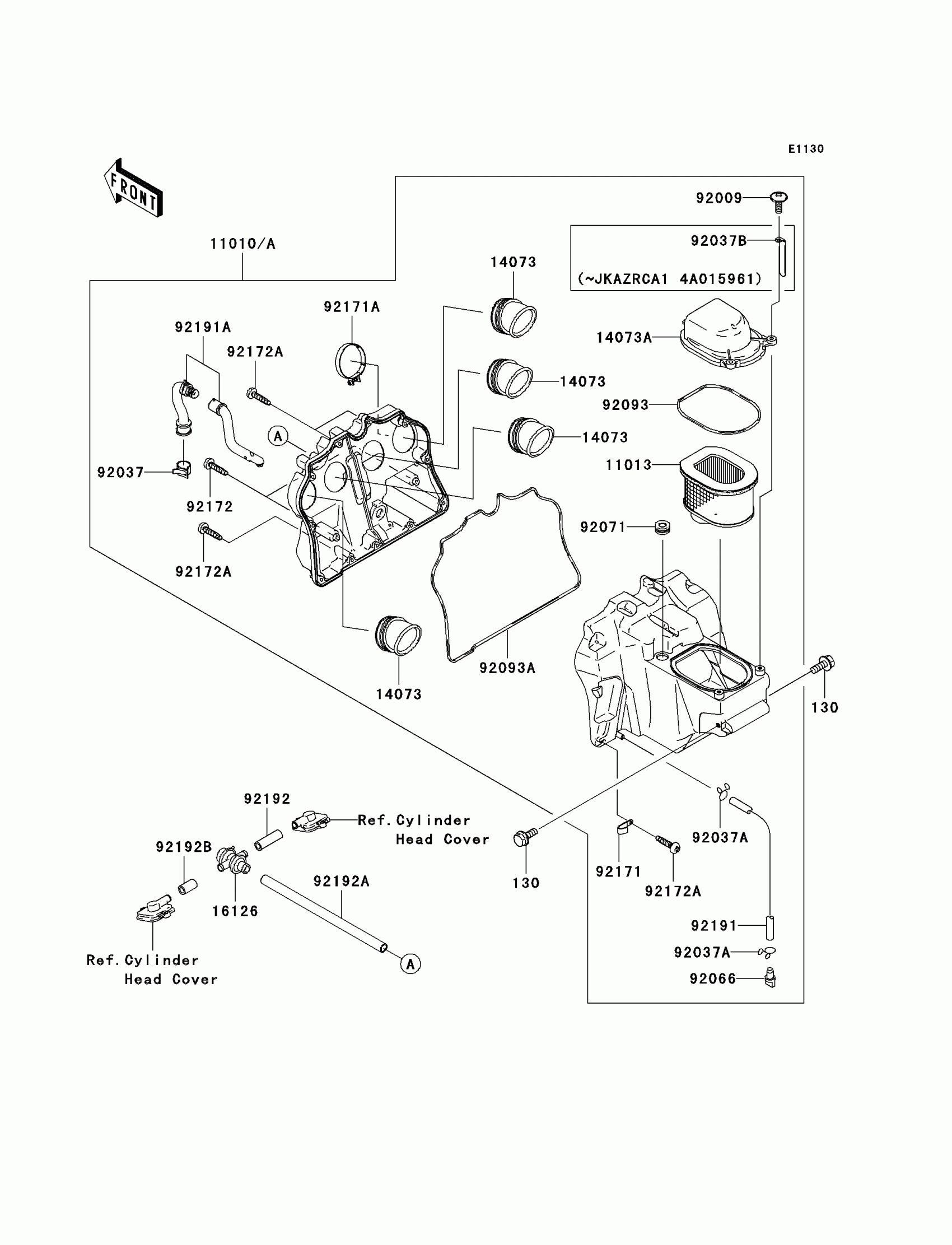

2005 Kawasaki Z1000 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X8

130J0608

1
Out of stock

11010A

FILTER-ASSY-AIR

11010-0034

1

$472.87

In stock

11013

ELEMENT-AIR FILTER

11013-1302

1

$66.79

In stock

14073

DUCT

14073-0013

1

$35.08

In stock

14073A

DUCT

14073-1847

1

$42.35

In stock

16126

VALVE,AIR SWITCH

16126-1433

1

$196.87

In stock

92009

SCREW,6X16

92009-1621

1
Out of stock

92037

CLAMP,HOSE CLIP

92037-1460

1

$8.57

In stock

92037A

CLAMP,TUBE

92037-147

1

$5.84

In stock

92066

PLUG,DRAIN

92066-1211

1

$6.75

In stock

92071

GROMMET

92071-2140

1

$3.51

In stock

92093

SEAL

92093-0002

1

$8.86

In stock

92093A

SEAL

92093-1583

1

$19.25

In stock

92171

CLAMP

92171-1539

1

$2.29

In stock

92171A

CLAMP

92171-1553

1

$11.86

In stock

92172

SCREW,TAPPING,5X20

92172-0009

1

$2.29

In stock

92172A

SCREW-PAN-CROS,5X25

92172-0056

1

$1.91

In stock

92191

TUBE,7X10X320

92191-0019

1

$11.76

In stock

92191A

TUBE

92191-1783

1
Out of stock

92192

TUBE,10X16X51

92192-0004

1
Out of stock

92192A

TUBE,12X18X290

92192-0007

1
Out of stock

92192B

TUBE,10X16X29

92192-0009

1
Out of stock
