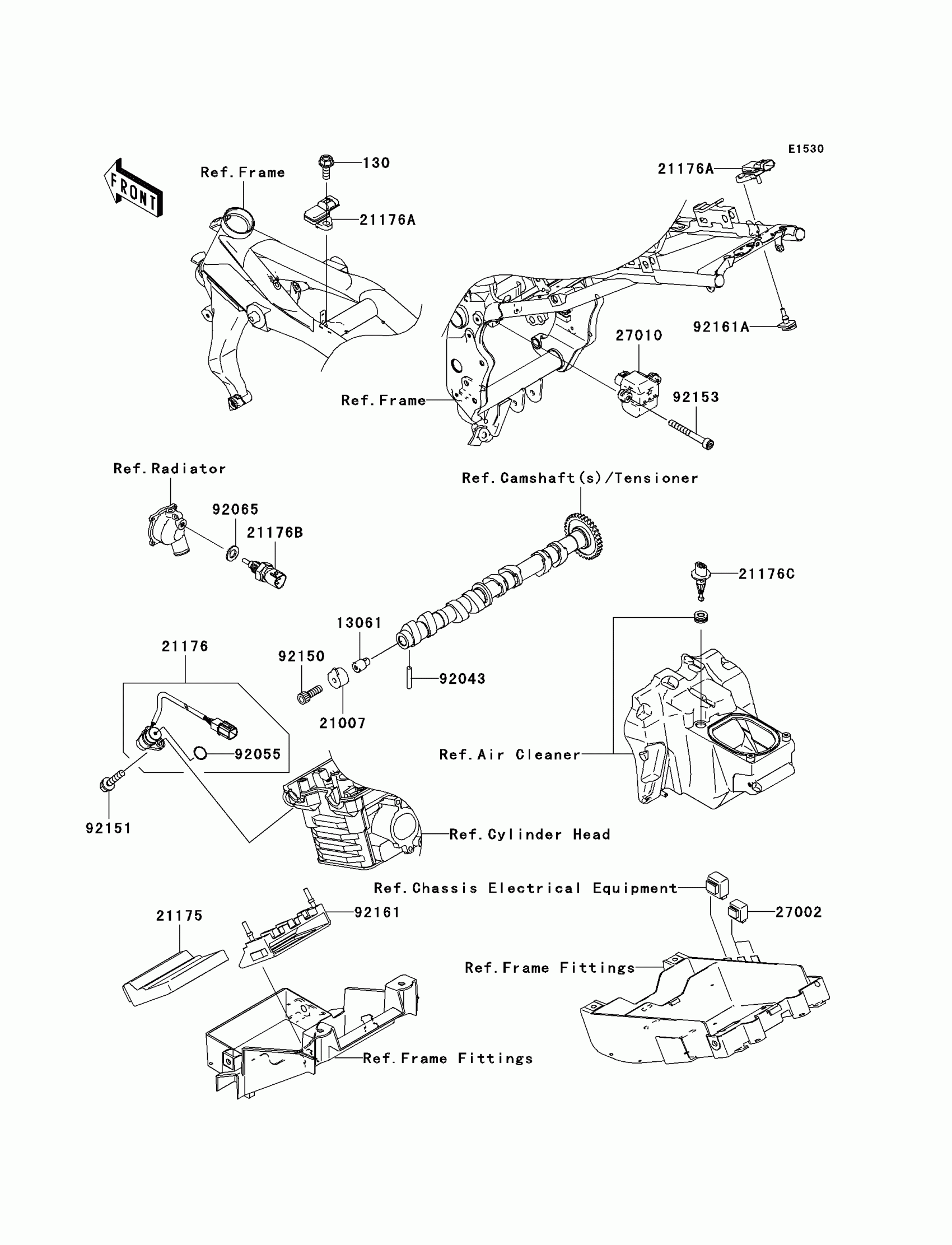

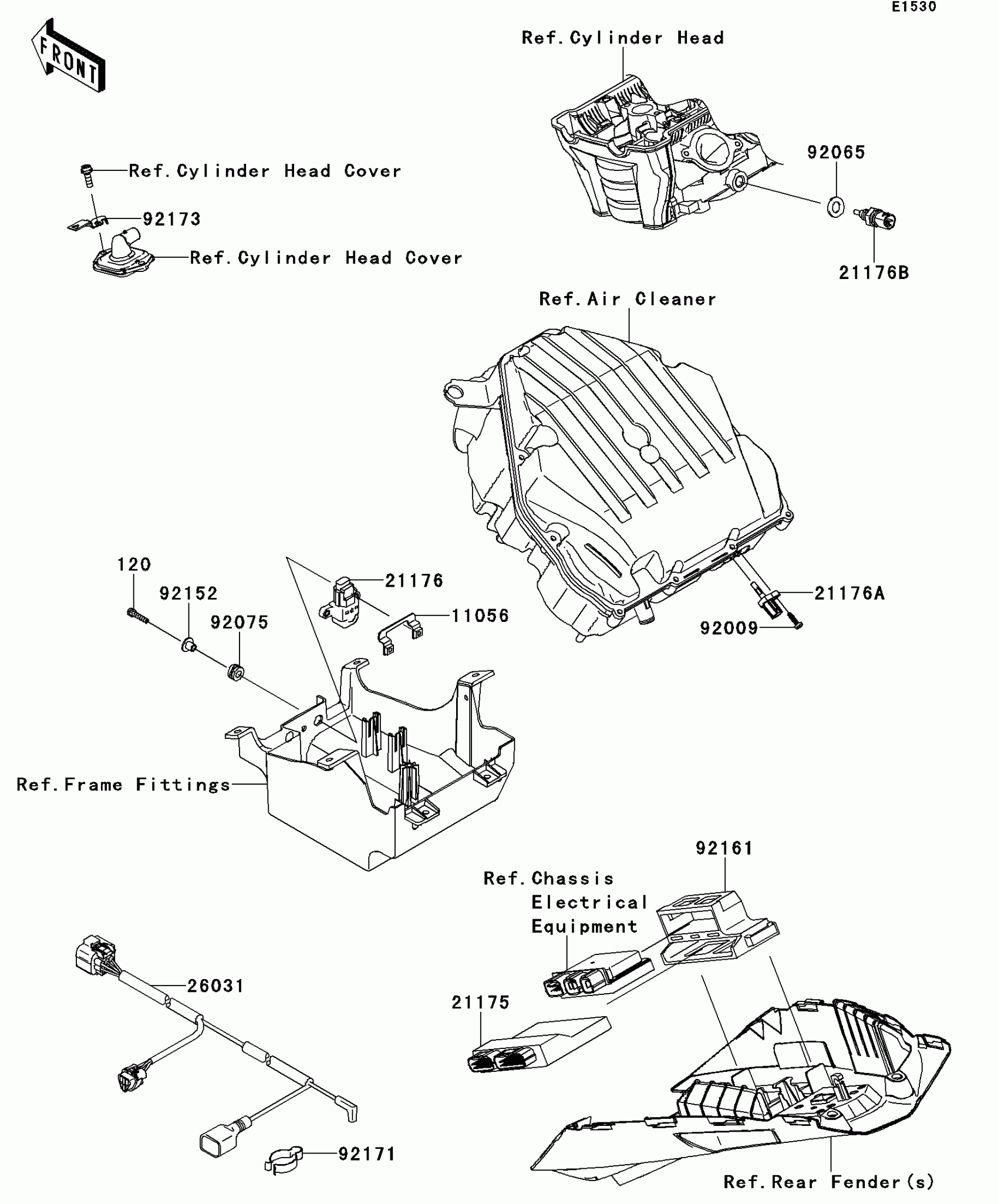

Kawasaki Z1000 Fuel Injection Diagram

#

Description
Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

13061

BOSS,CAM SENSOR

13061-1687

$15.29

21007

ROTOR

21007-0005

$11.92

21175

CONTROL UNIT-ELECTRONIC

21175-0007

$786.82

21176

SENSOR

21176-1077

$90.27

21176A

SENSOR

21176-1118

$126.04

21176B

SENSOR,WATER TEMP

21176-1120

$62.85

21176C

SENSOR,AIR TEMP

21176-2106

$19.69

27002

RELAY-ASSY

27002-1062

$40.25

27010

SWITCH

27010-0007

$165.90

92043

PIN

92043-1575

$1.76

92055

RING-O

92055-1639

$2.15

92065

GASKET,12X22X2

92065-097

$0.66

92150

BOLT,6X18

92150-1645

$2.74

92151

BOLT,FLANGED,6X16

92151-1774

Unavailable

92153

BOLT,4X35

92153-0377

$1.73

92161

DAMPER

92161-0019

$35.55

92161A

DAMPER

92161-0041

$4.59
