2005 Kawasaki Z1000 Fuel Evaporative System Diagram

← All diagrams

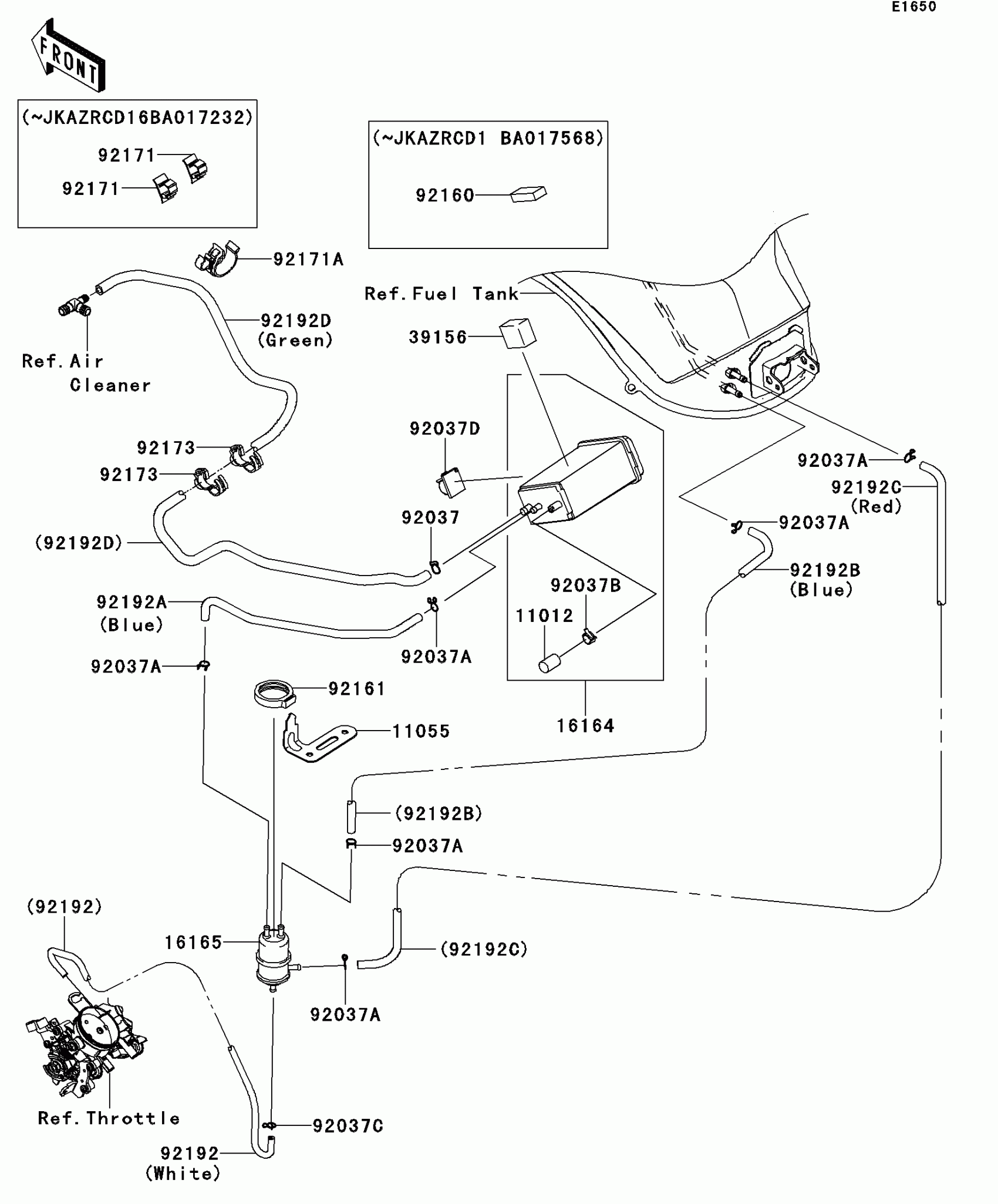

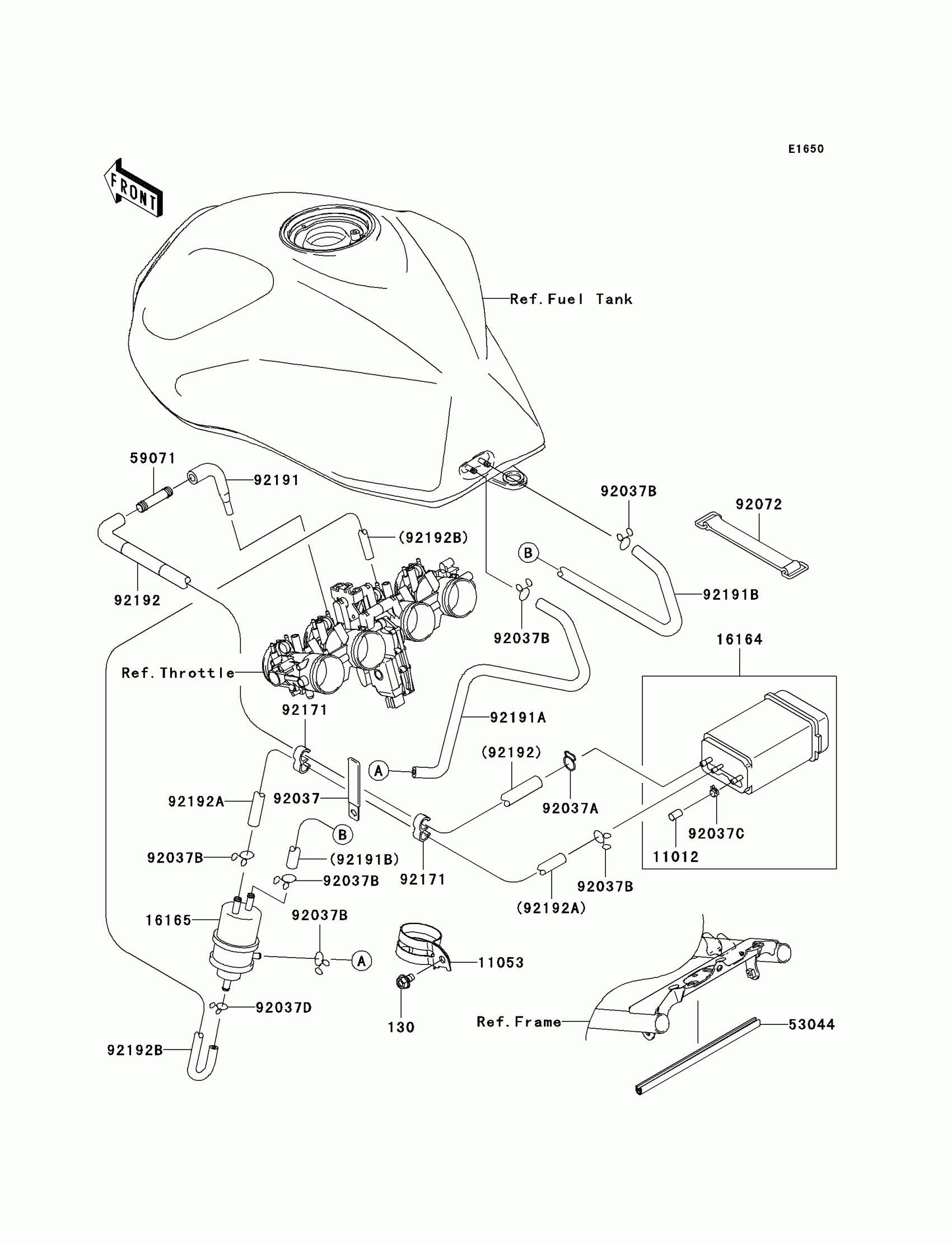

Find the part on the Fuel Evaporative System diagram for your 2005 Kawasaki Z1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Z1000 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130G0610

1
Out of stock

11012

CAP,CANISTER

11012-1388

1

$8.31

In stock

11053

BRACKET,SEPARATOR

11053-1191

1

$11.92

In stock

16164

CANISTER

16164-1054

1

$132.79

In stock

16165

SEPARATOR

16165-1001

1

$81.73

In stock

53044

TRIM,L=157

53044-1276

1

$8.63

In stock

59071

JOINT

59071-3764

1

$7.51

In stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP-HOSE

92037-1104

1

$1.27

In stock

92037B

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037C

CLAMP,CANISTER

92037-1512

1

$5.71

In stock

92037D

CLAMP

92037-1712

1

$3.97

In stock

92072

BAND

92072-1384

1

$10.88

In stock

92171

CLAMP

92171-1184

1

$2.03

In stock

92191

1

$9.03

In stock

92191A

TUBE,TANK-SEPARATOR,RED

92191-1804

1
Out of stock

92191B

TUBE,TANK-SEPARATOR,BLUE

92191-1805

1
Out of stock

92192

TUBE,CANISTER-FITTING,GREEN

92192-0005

1
Out of stock

92192A

TUBE,CANISTER-SEPARTOR,BLUE

92192-0006

1
Out of stock

92192B

TUBE,THROTTLE-SEPARATOR,WHITE

92192-0008

1
Out of stock
