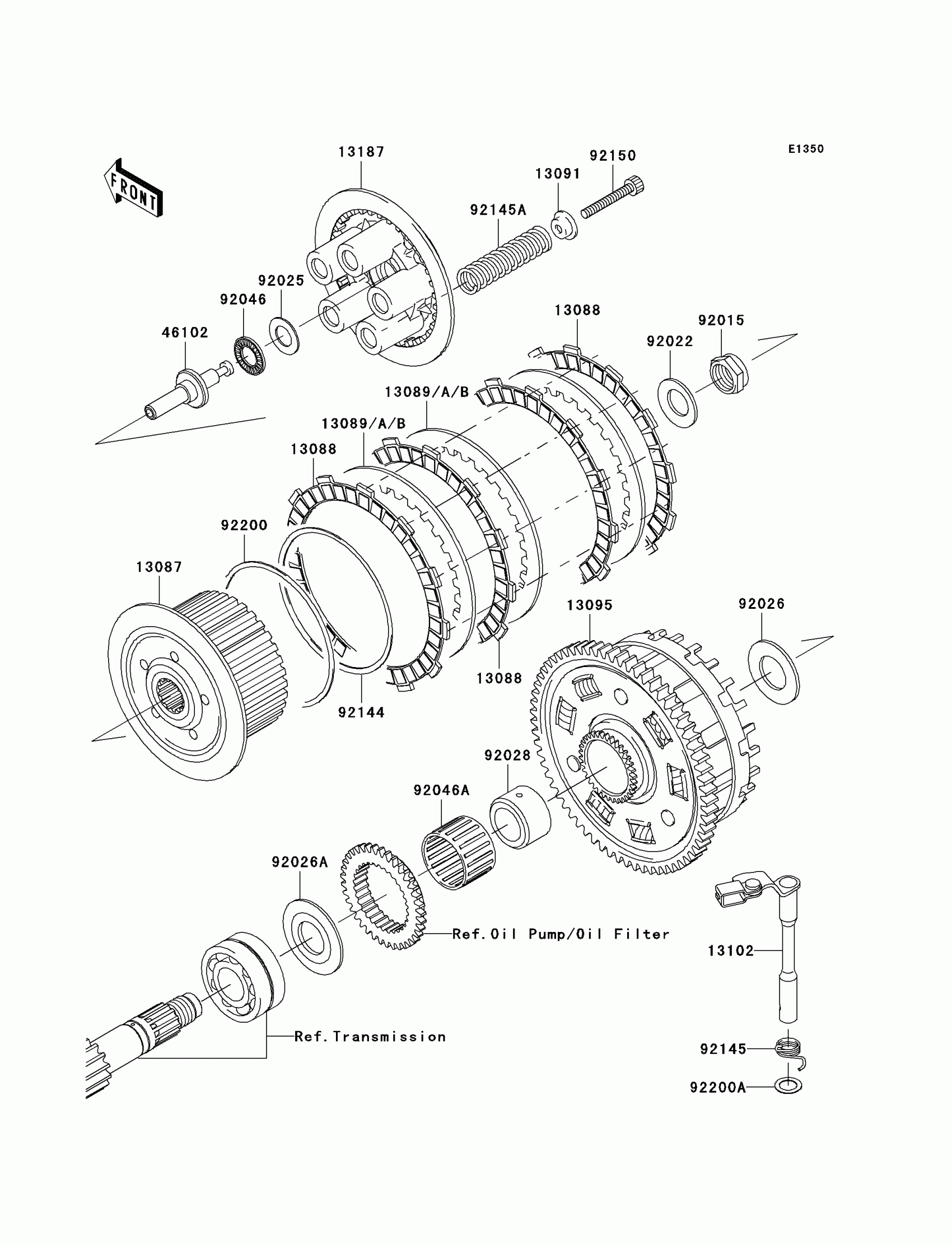

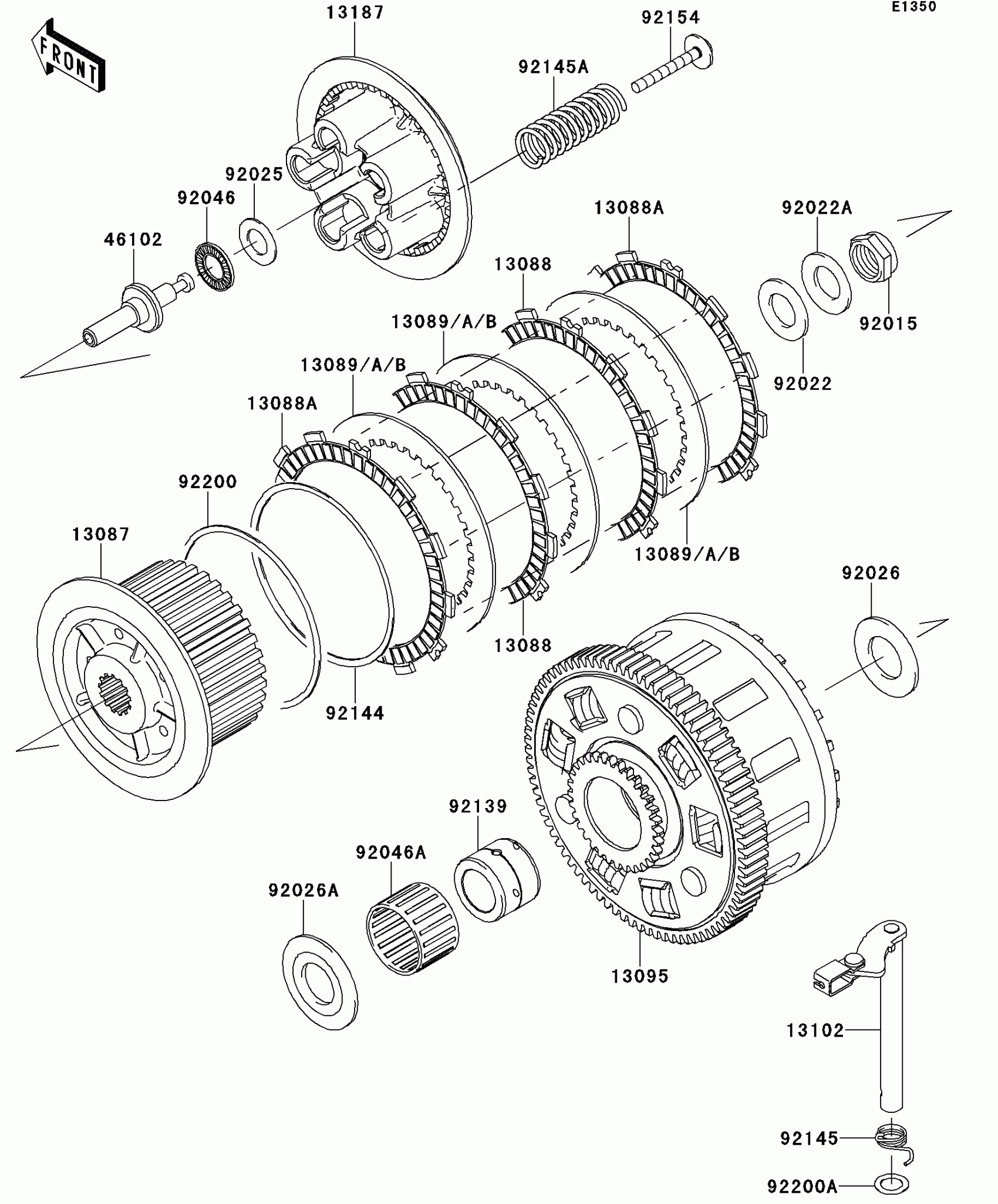

Kawasaki Z1000 Clutch Diagram

#

Description
Price

13087

HUB-CLUTCH

13087-1173

Unavailable

13088

PLATE-FRICTION

13088-1124

$13.84

13089

PLATE-CLUTCH,T=2.0

13089-1073

Unavailable

13089A

PLATE-CLUTCH,T=2.3

13089-1084

$9.73

13089B

PLATE-CLUTCH,T=2.6

13089-1115

Unavailable

13091

HOLDER,CLUTCH SPRING

13091-1041

$9.30

13095

HOUSING-COMP-CLUTCH

13095-1417

$597.51

13102

RELEASE-COMP-CLUTCH

13102-1162

$69.70

13187

PLATE-CLUTCH OPERATING

13187-1083

$50.32

46102

ROD

46102-1425

Unavailable

92015

NUT,20MM

92015-1555

$9.95

92022

WASHER,20.3X36X3.7

92022-1868

$7.25

92025

SHIM,15.3X27.5X1.20

92025-1137

$6.55

92026

SPACER,25.5X47X2.5

92026-022

$9.58

92026A

SPACER

92026-1497

$10.83

92028

BUSHING

92028-1741

$33.07

92046

BEARING-NEEDLE,AXK1102

92046-1052

$10.99

92046A

BEARING-NEEDLE,K38X43X28.8X

92046-1263

$25.38

92144

SPRING,FRICTION PLATE

92144-1854

$6.78

92145

SPRING,CLUTCH RELEASE

92145-0066

$5.78

92145A

SPRING,CLUTCH

92145-1364

$7.54

92150

BOLT,CLUTCH OPERATING

92150-1855

$3.98

92200

WASHER,FRICTION PLATE

92200-1260

$7.83

92200A

WASHER,12X18.5X0.5

92200-1487

$1.95
