2005 Kawasaki Z1000 Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 2005 Kawasaki Z1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

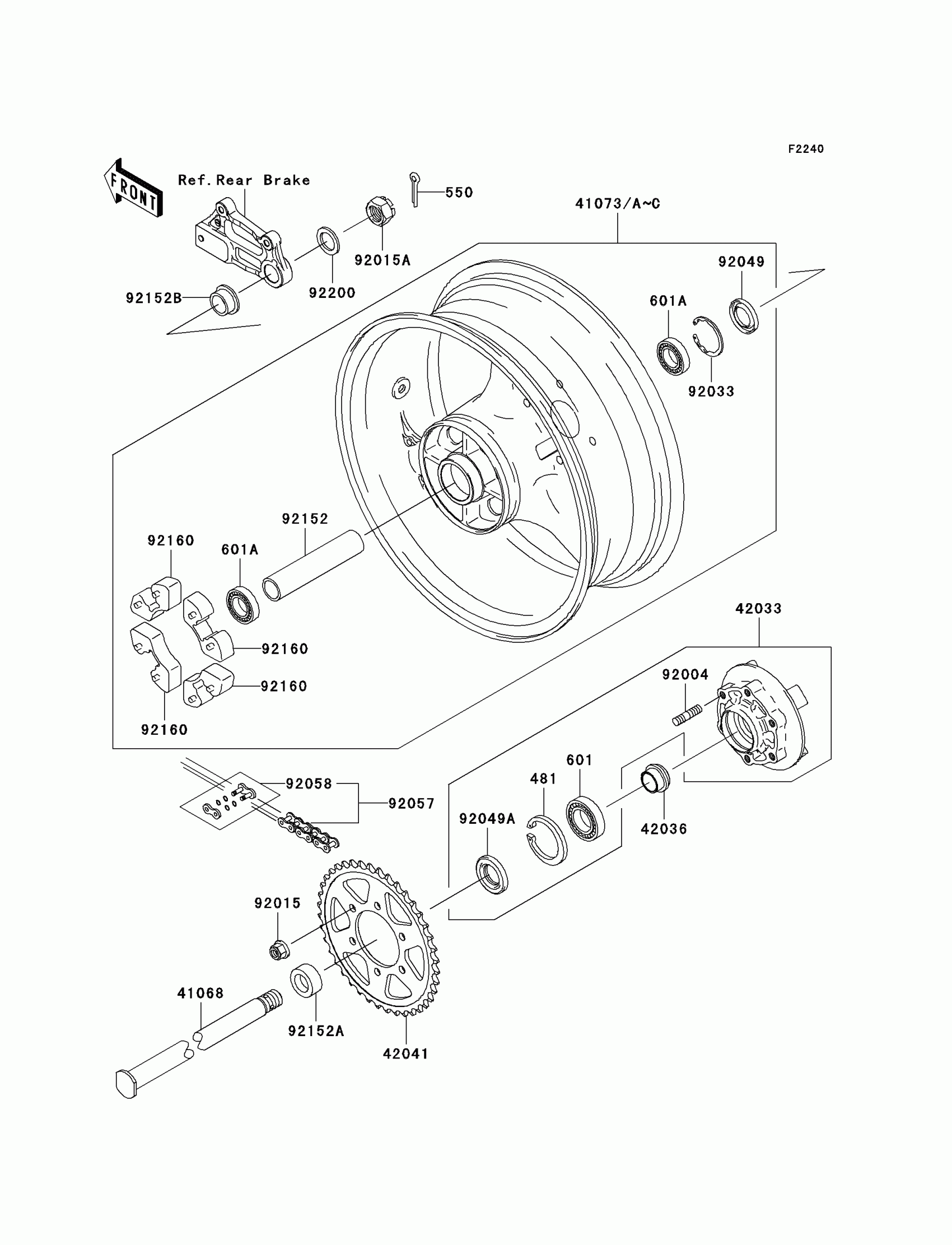

2005 Kawasaki Z1000 Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

481

CIRCLIP

481J5500

1
Out of stock

550

1

$1.10

In stock

601

1

$26.55

In stock

601A

BEARING-BALL

601B6205UU

1

$26.83

In stock

41068

AXLE,RR

41068-0005

1

$113.19

In stock

41073A

WHEEL-ASSY,RR,BLACK

41073-1653-18

1

$1,177.06

In stock

42033

1

$253.53

In stock

42036

SLEEVE,RR HUB,L=22

42036-1279

1

$26.53

In stock

42041

SPROCKET-HUB,42T

42041-0003

1

$84.89

In stock

92004

STUD,10X19

92004-1275

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1335

1
Out of stock

92015A

NUT,CASTLE,24MM

92015-1844

1

$10.77

In stock

92033

RING-SNAP,52MM

92033-1043

1

$6.41

In stock

92049

SEAL-OIL,RR HUB

92049-1375

1
Out of stock

92049A

SEAL-OIL,PJN 40 55 8

92049-1376

1
Out of stock

92057

1

$356.03

In stock

92058

JOINT-CHAIN,DRIVE

92058-1089

1

$14.29

In stock

92152

COLLAR,RR HUB,L=159

92152-1208

1

$38.74

In stock

92152A

1

$30.94

In stock

92152B

1

$23.63

In stock

92160

DAMPER,SHOCK,RR HUB

92160-1485

1

$23.34

In stock

92200

WASHER,25.5X38X3.2

92200-1479

1
Out of stock
