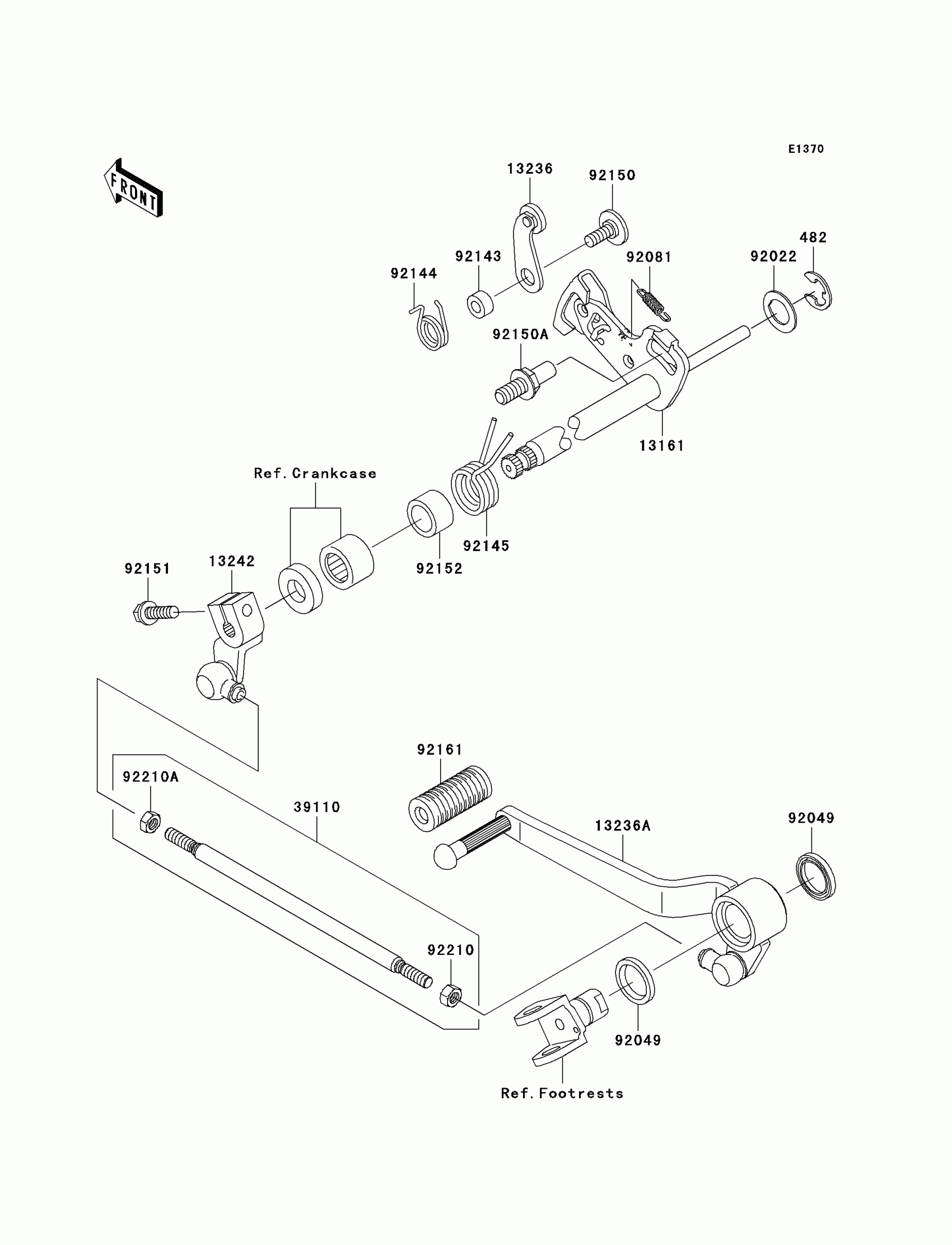

Kawasaki Z1000 Gear Change Mechanism Diagram

Description

Price

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.53

13161

LEVER-COMP-CHANGE SHAFT

13161-1292

$92.17

13236

LEVER-COMP

13236-1243

$15.84

13236A

LEVER-COMP,PEDAL

13236-1365

$73.53

13242

LEVER-ASSY-CHANGE

13242-1395

$55.81

39110

ROD-ASSY-TIE

39110-1131

$22.95

92022

WASHER,CHANGE SHAFT

92022-1628

$5.71

92049

SEAL-OIL

92049-1492

$7.07

92081

SPRING,PAWL RETURN

92081-1708

$5.66

92143

COLLAR

92143-1595

$9.22

92144

SPRING,GEAR POSITION

92144-1857

$8.56

92145

SPRING

92145-1122

$9.37

92150

BOLT,SOCKET,6X16

92150-1737

$8.19

92150A

BOLT,RETURN SPRING

92150-1869

$8.37

92151

BOLT,FLANGED,6X20

92151-1226

$1.76

92152

COLLAR,14.2X19.9X12.0

92152-1383

$3.19

92161

DAMPER,CHANGE PEDAL

92161-1300

$4.65

92210

NUT,6MM

92210-1100

$1.68

92210A

NUT,LEFT HANDED,6MM

92210-1101

$1.20
