Description

Price

600

BALL-STEEL,5/32

600A0500

$0.68

13127

SHAFT-TRANSMISSION INPUT

13127-0007

$334.08

13128

SHAFT-TRANSMISSION OUTPUT

13128-1260

$272.36

13144

SPROCKET-OUTPUT,16T

13144-1320

$45.81

13260

GEAR,INPUT 2ND,17T

13260-1681

$143.04

13260A

GEAR,OUTPUT 2ND,33T

13260-1686

$190.39

13260B

GEAR,OUTPUT 3RD,28T

13260-1880

$183.03

13262

GEAR,OUTPUT LOW,36T

13262-0029

Unavailable

13262A

GEAR,OUTPUT 5TH,24T

13262-0030

$192.55

13262B

GEAR,INPUT 3RD&4TH,18T&21T

13262-0031

Unavailable

13262C

GEAR,INPUT 5TH,20T

13262-0062

$175.27

13262F

GEAR,OUTPUT 4TH,28T

13262-0077

$192.55

13262G

GEAR,INPUT TOP,21T

13262-0228

$191.68

13262H

GEAR,OUTPUT TOP,23T

13262-0229

$217.62

92022

WASHER,25.3X33X1

92022-1109

$4.50

92022A

WASHER,20.5X30X1,STEEL

92022-112

$6.75

92028

BUSHING,INPUT 5TH GEAR

92028-1735

$24.03

92028A

BUSHING,OUTPUT,2ND

92028-1739

$24.03

92028B

BUSHING,INPUT TOP GEAR

92028-1915

$24.25

92028C

BUSHING,OUTPUT,3RD&4TH

92028-1968

$36.98

92033

RING-SNAP,20MM

92033-015

$3.25

92033A

RING-SNAP,24MM

92033-026

$6.70

92033B

RING-SNAP,T=1.5

92033-1249

$3.78

92045

BEARING-BALL,DAC2557NSSH

92045-0003

$107.07

92046

BEARING-NEEDLE,K20X24X13

92046-1219

$12.73

92046A

BEARING-NEEDLE,PK20X27X17X3

92046-1303

$19.71

92139

BUSHING,27X34X18.6

92139-1090

$32.39

92152

COLLAR,SPROCKET

92152-1466

$24.44

92200

WASHER

92200-1065

$4.97

92200A

WASHER,25.2X31.0X1.5

92200-1239

$7.71

92200B

WASHER,20.5X31X1.5

92200-1375

$4.17

92200C

WASHER,T=2.0

92200-1457

$4.19

92200D

WASHER,25.8X40.5X1.5

92200-1522

$4.29

92200E

WASHER,25.2X37.0X1.0

92200-1523

$4.78

92200F

WASHER,INPUT

92200-1524

$3.69

92210

NUT,SPROCKET

92210-1098

$30.56

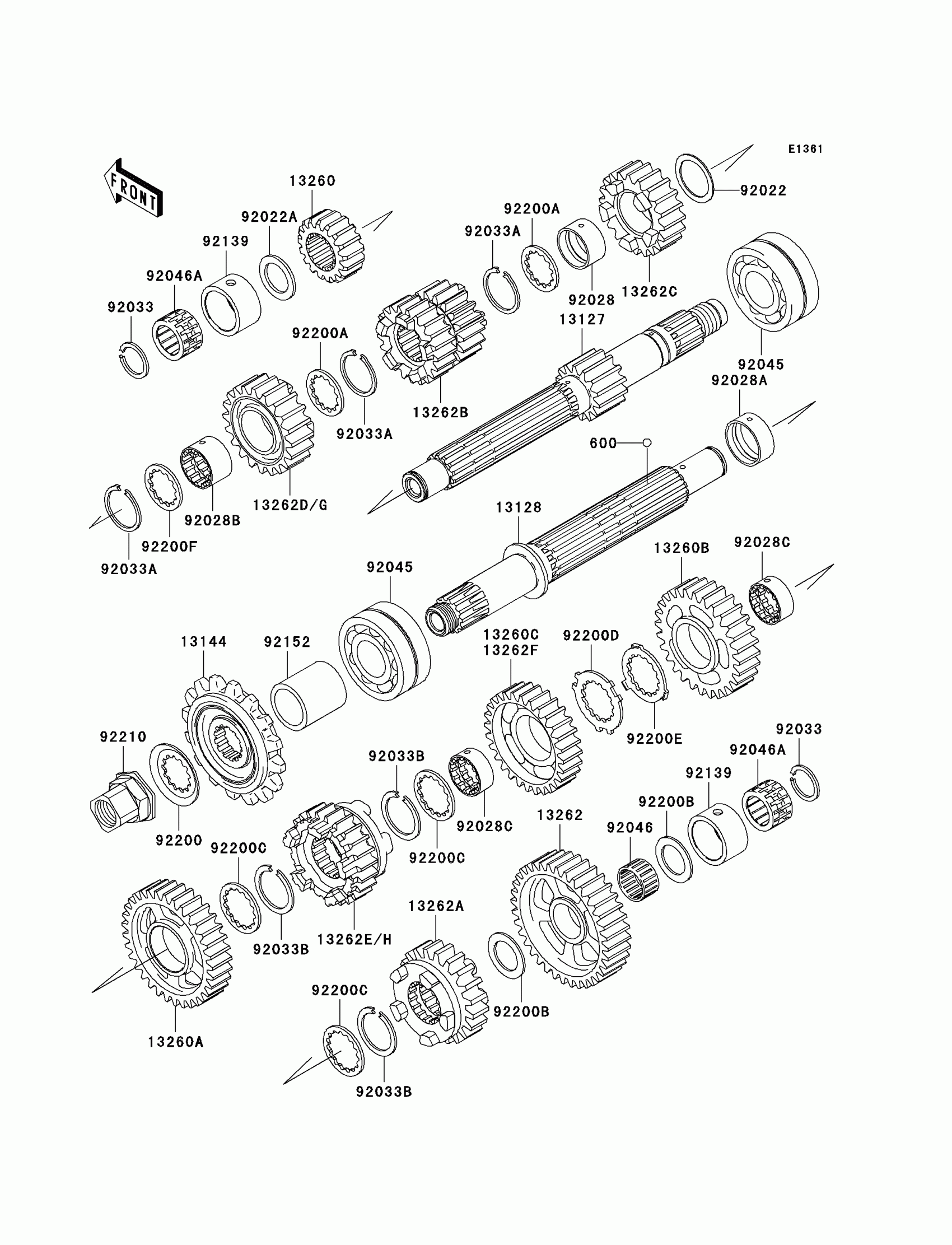

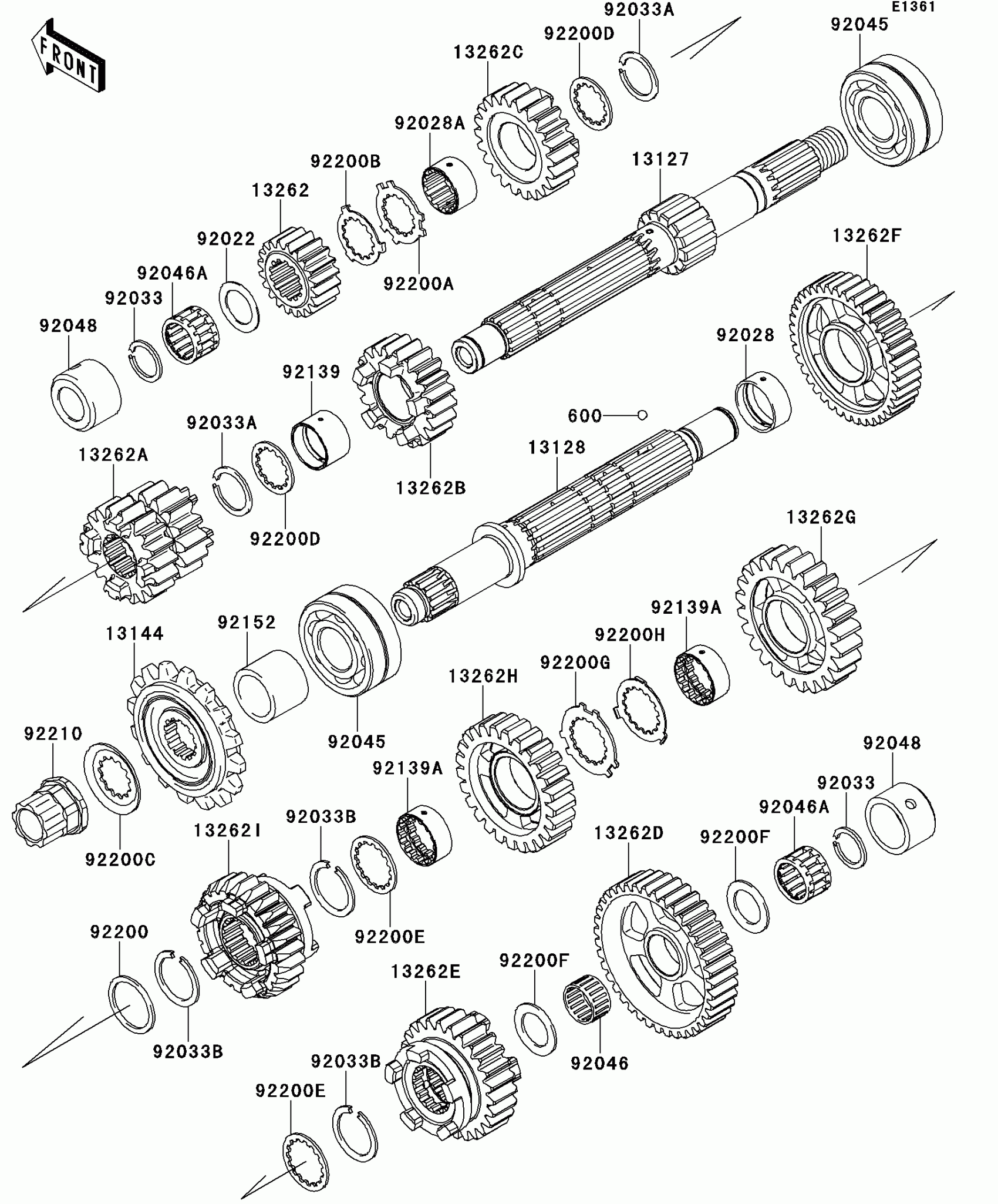

Kawasaki Z1000 Transmission Diagram
