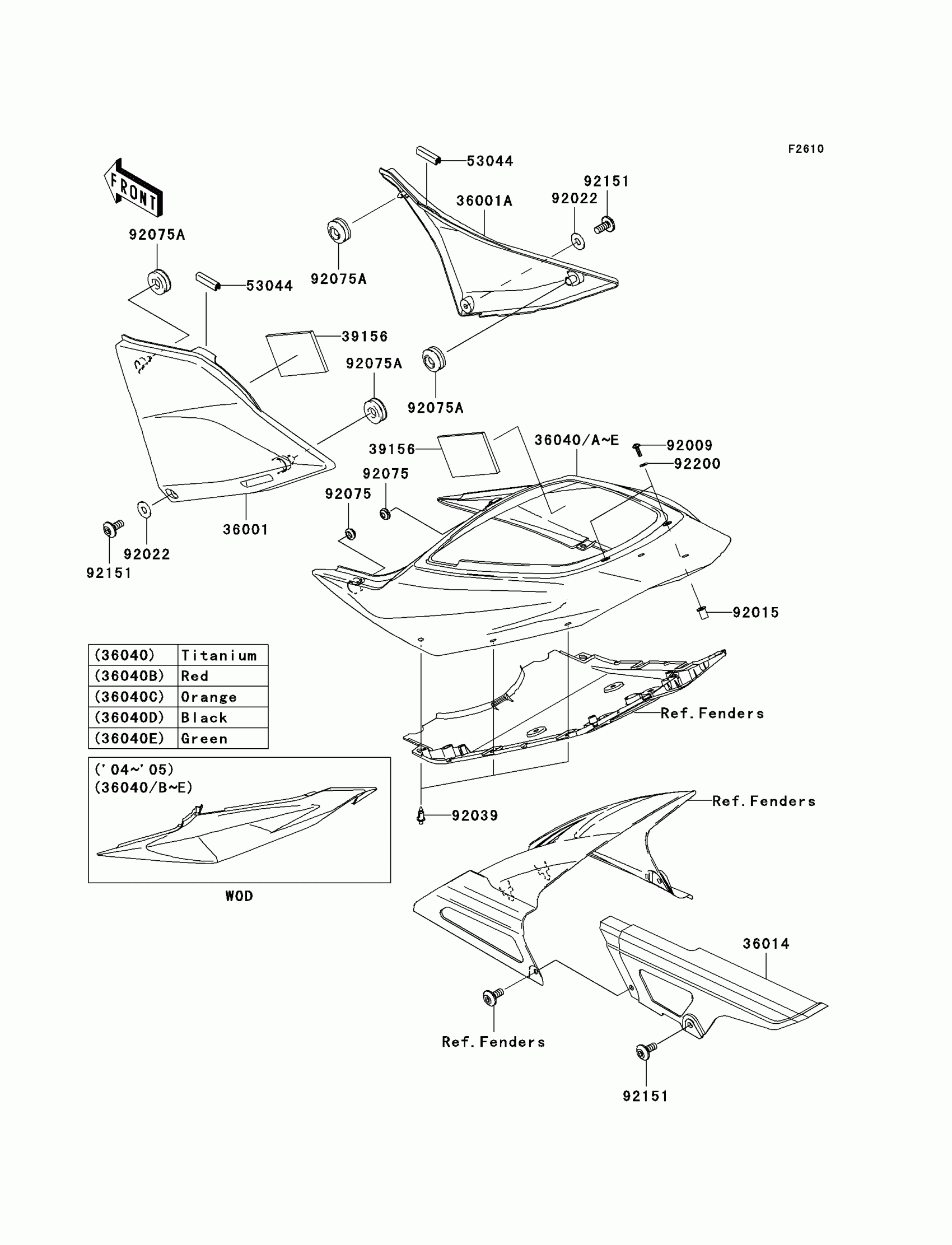

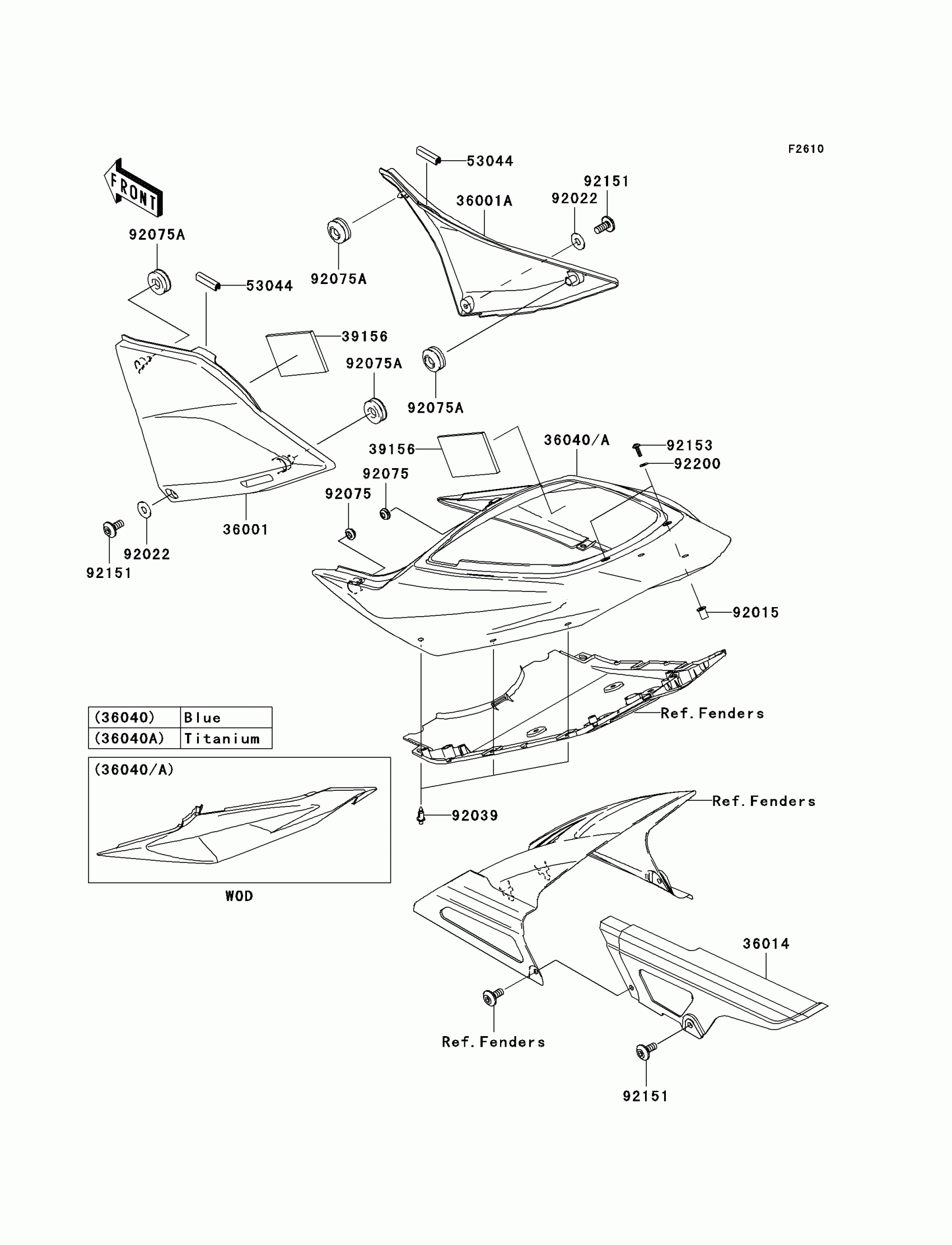

Kawasaki Z1000 Side Covers/Chain Cover Diagram

Description

Price

36001

COVER-SIDE,LH,M.F.GRAYSTONE

36001-0040-4P

$164.60

36001A

COVER-SIDE,RH,M.F.GRAYSTONE

36001-0041-4P

$181.36

36014

CASE-CHAIN

36014-1263

$109.25

36040

COVER-TAIL,TITANIUM

36040-0012-725

$525.16

39156

PAD

39156-0024

$10.07

53044

TRIM,L=30

53044-0001

$2.29

92009

SCREW,5X16

92009-1909

$1.47

92015

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,6.5X16X1

92022-1143

$2.99

92039

RIVET

92039-0015

$2.14

92075

DAMPER,6X16X7

92075-1011

$5.61

92075A

DAMPER

92075-1067

$3.57

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.20

36040D

COVER-TAIL,M.S.BLACK

36040-1065-660

Unavailable
