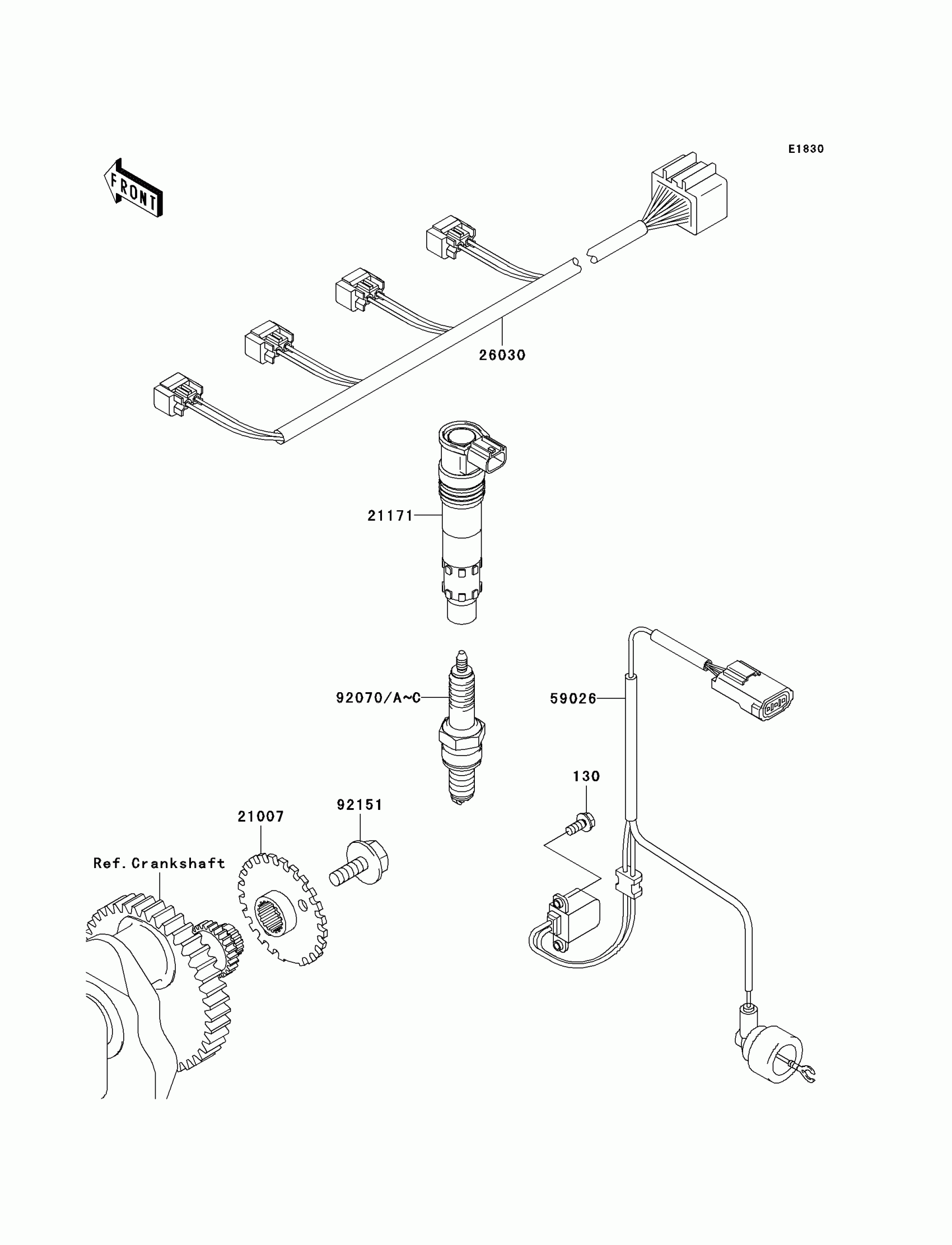

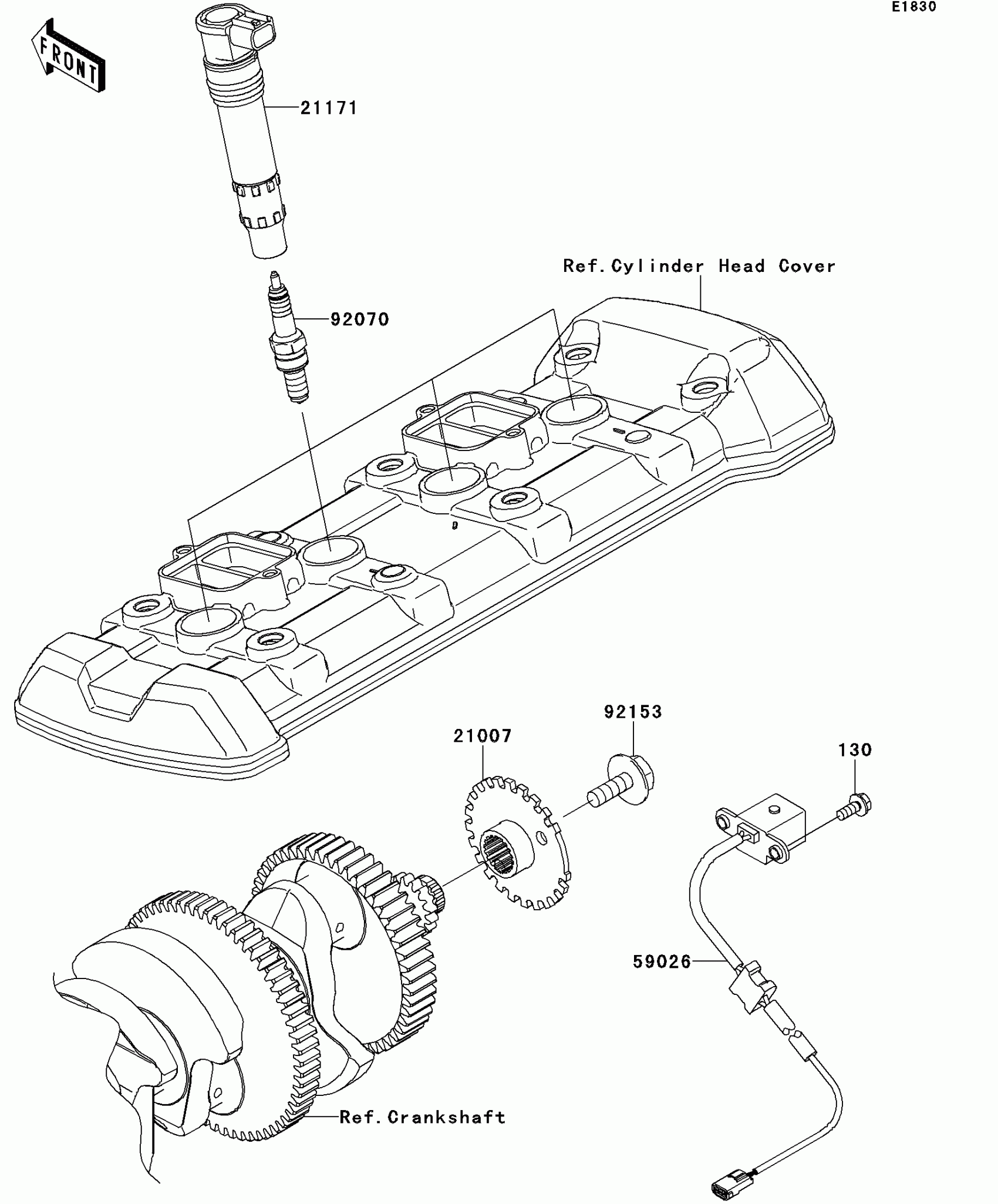

Find the part on the Ignition System diagram for your 2005 Kawasaki Z1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Z1000 Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X12

130G0512

1
Out of stock

21007

ROTOR

21007-1419

1
Out of stock

21171

COIL-ASSY-IGNITION

21171-1286

1

$180.97

In stock

26030

1

$131.39

In stock

59026

COIL-PULSING

59026-0004

1

$117.37

In stock

92070

Not Available As Spare Part - Friction Washer

1
Out of stock

92070A

Not Available As Spare Part - Friction Washer

1
Out of stock

92070B

1

$9.66

In stock

92070C

1

$9.67

In stock

92151

BOLT,8X23

92151-1308

1
Out of stock
