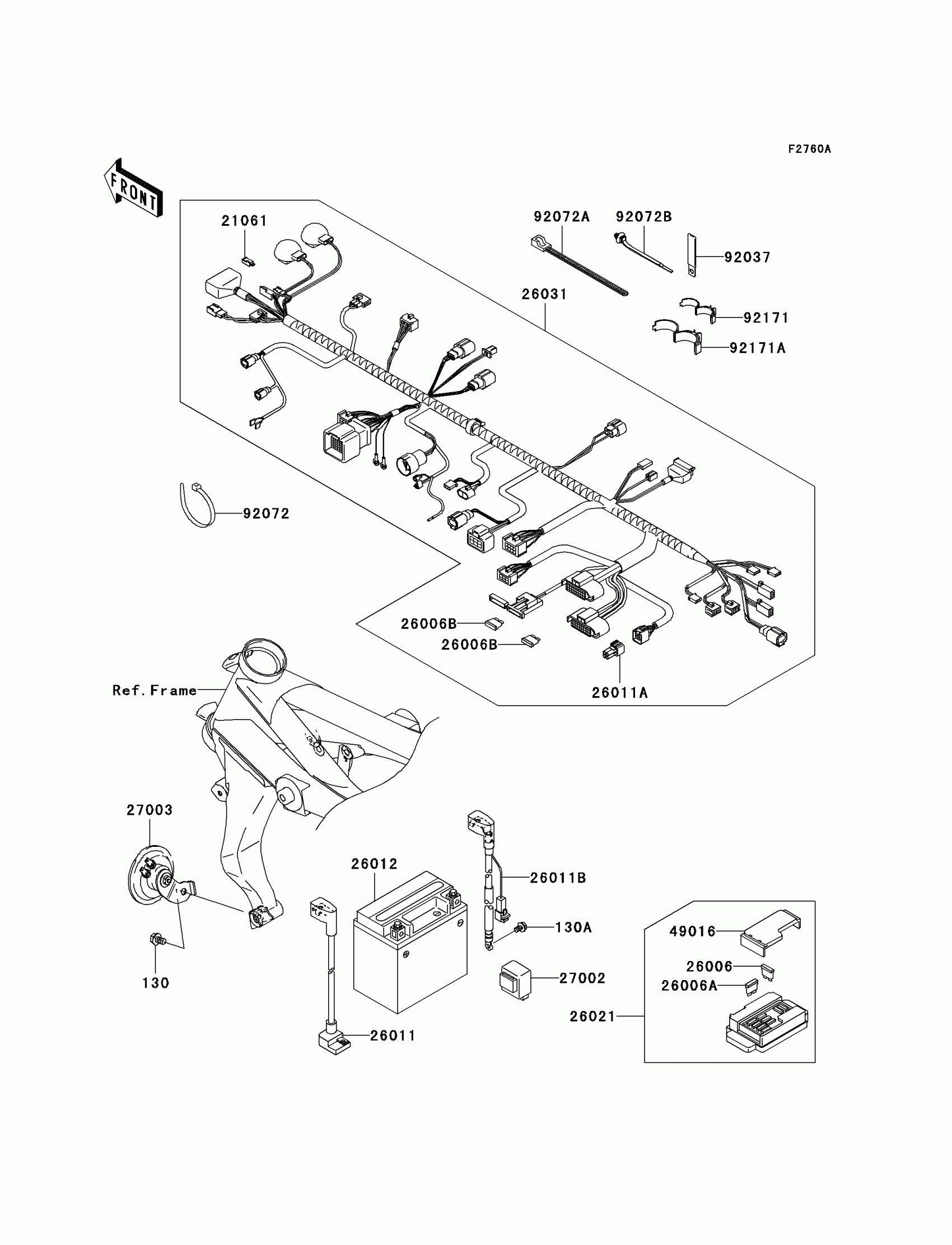

Kawasaki Z1000 Chassis Electrical Equipment(A3) Diagram

Description

Price

130

BOLT-FLANGED,8X12

130L0812

Unavailable

130A

BOLT-FLANGED,6X10

130V0610

Unavailable

21061

RECTIFIER

21061-0001

$29.81

26006

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006A

FUSE,10A-R

26006-1068

Unavailable

26006B

FUSE,15A

26006-1075

$4.86

26011

WIRE-LEAD,BATTERY(+)

26011-0006

$47.97

26011A

WIRE-LEAD

26011-0037

$12.41

26011B

WIRE-LEAD,BATTERY(-)

26011-0041

$47.95

26012

BATTERY,YTX9-BS,12V 8AH

26012-1326

$145.53

26021

JUNCTION BOX

26021-0001

Unavailable

26031

HARNESS,MAIN

26031-0257

$482.78

27002

RELAY-ASSY,TURN SIGNAL

27002-1101

$73.74

27003

HORN

27003-0015

Unavailable

49016

COVER-SEAL,FUSE

49016-1177

Unavailable

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92072

BAND,L=202

92072-1195

$1.34

92072A

BAND,L=250

92072-1237

$1.80

92072B

BAND,OS170-FT7(BLACK)

92072-1414

$2.97

92171

CLAMP,DIA=15

92171-1424

$3.33

92171A

CLAMP,25MM DIA.

92171-1559

$5.39
