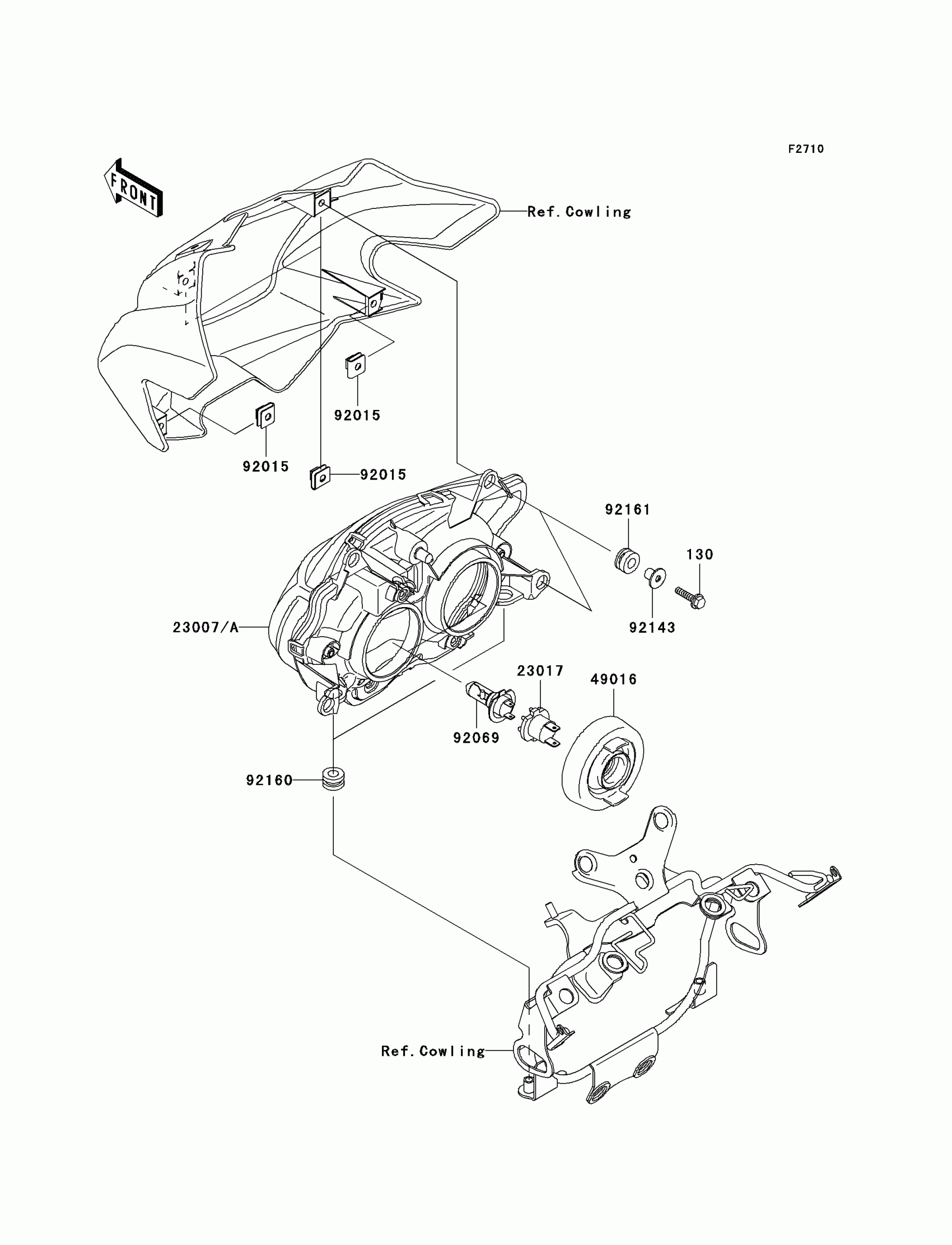

Find the part on the Headlight diagram for your 2005 Kawasaki Z1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

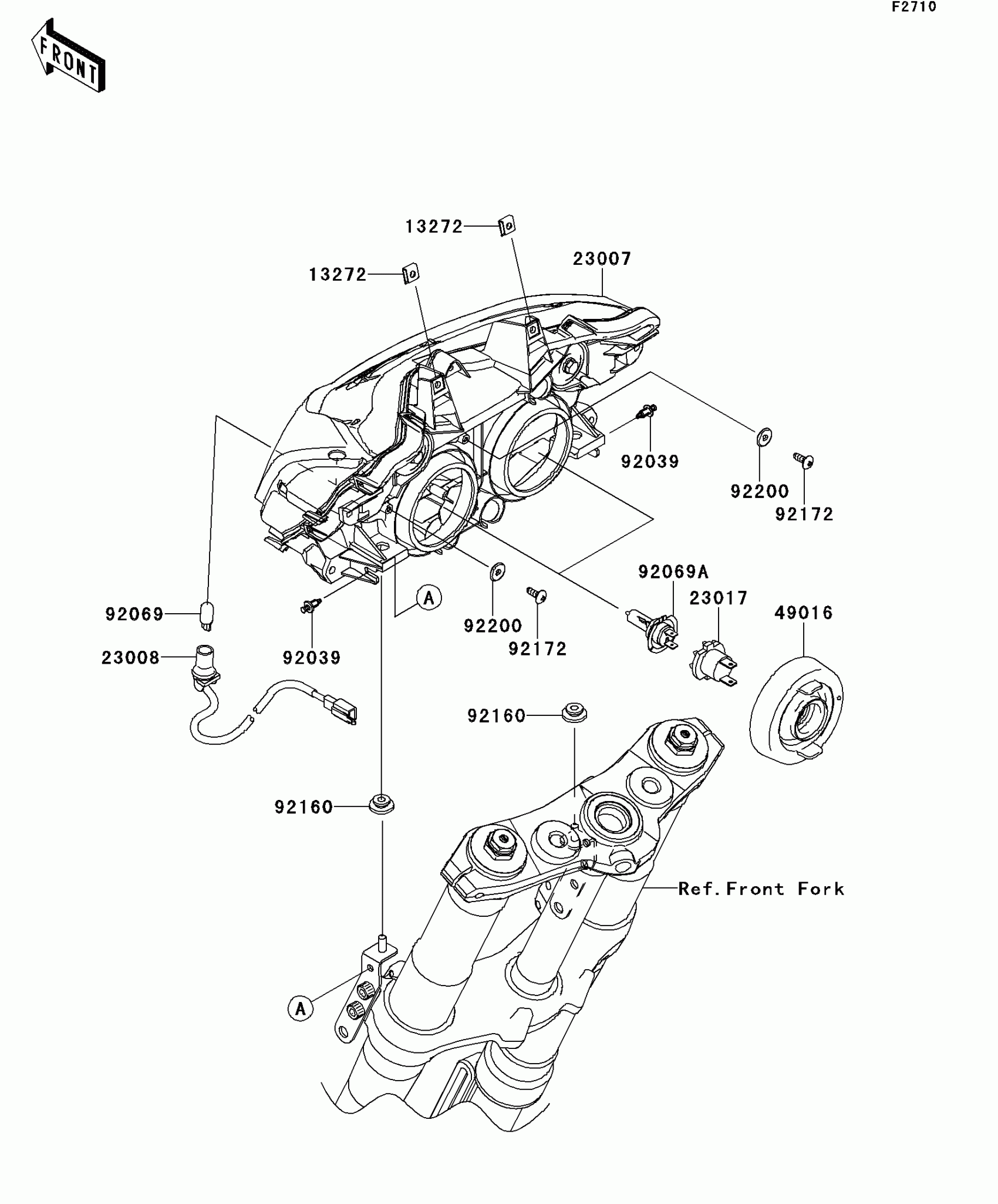

2005 Kawasaki Z1000 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130J0625

1
Out of stock

23007

LENS-COMP,HEAD LAMP

23007-0015

1

$575.00

In stock

23017

SOCKET,HEAD LAMP

23017-1067

1

$92.23

In stock

49016

1

$15.86

In stock

92015

NUT,6MM

92015-1094

1
Out of stock

92069

BULB,12V 55W,H7

92069-1126

1
Out of stock

92143

COLLAR

92143-1353

1

$6.81

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92161

DAMPER

92161-0036

1

$2.29

In stock
