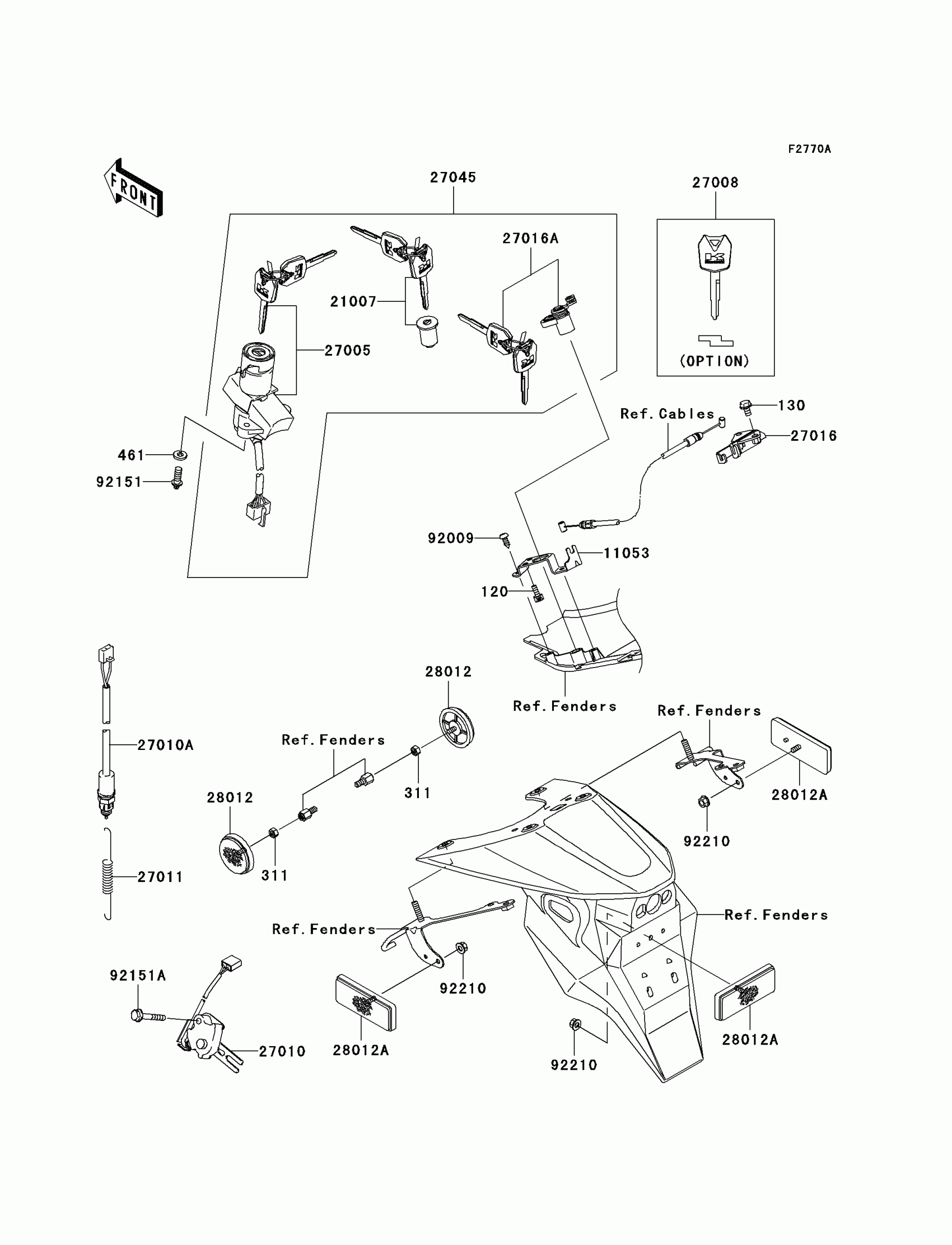

Kawasaki Z1000 Ignition Switch/Locks/Reflectors(A3) Diagram

Description

Price

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130

BOLT-FLANGED,6X12

130J0612

Unavailable

311

NUT-HEX

311L0500

Unavailable

461

WASHER-SPRING

461L0600

$0.59

11053

BRACKET,SEAT LOCK

11053-1146

$13.23

21007

ROTOR,LOCK,TANK CAP

21007-5057

$84.71

27005

SWITCH-ASSY-IGNITION

27005-5130

$186.48

27008

KEY-LOCK,BLANK

27008-0030

$14.40

27010

SWITCH,SIDE STAND

27010-1470

$70.27

27010A

SWITCH,REAR BRAKE

27010-1479

$30.06

27011

SPRING,BRAKE LAMP SWITCH

27011-021

$24.57

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

$28.59

27016A

LOCK-ASSY,SEAT

27016-5322

$74.05

27045

SWITCH-ASSY

27045-5288

$391.27

28012

REFLECTOR-REFLEX,FR

28012-016

$23.25

28012A

REFLECTOR-REFLEX

28012-1077

$23.25

92009

SCREW,TAPPING,5X12,BL

92009-1138

$3.96

92151

BOLT,TORX,6X16

92151-1911

$1.80

92151A

BOLT,6X35

92151-1982

$2.55

92210

NUT,FLANGED,5MM

92210-0007

$2.70
