2021 Kawasaki Z H2 Se Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2021 Kawasaki Z H2 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

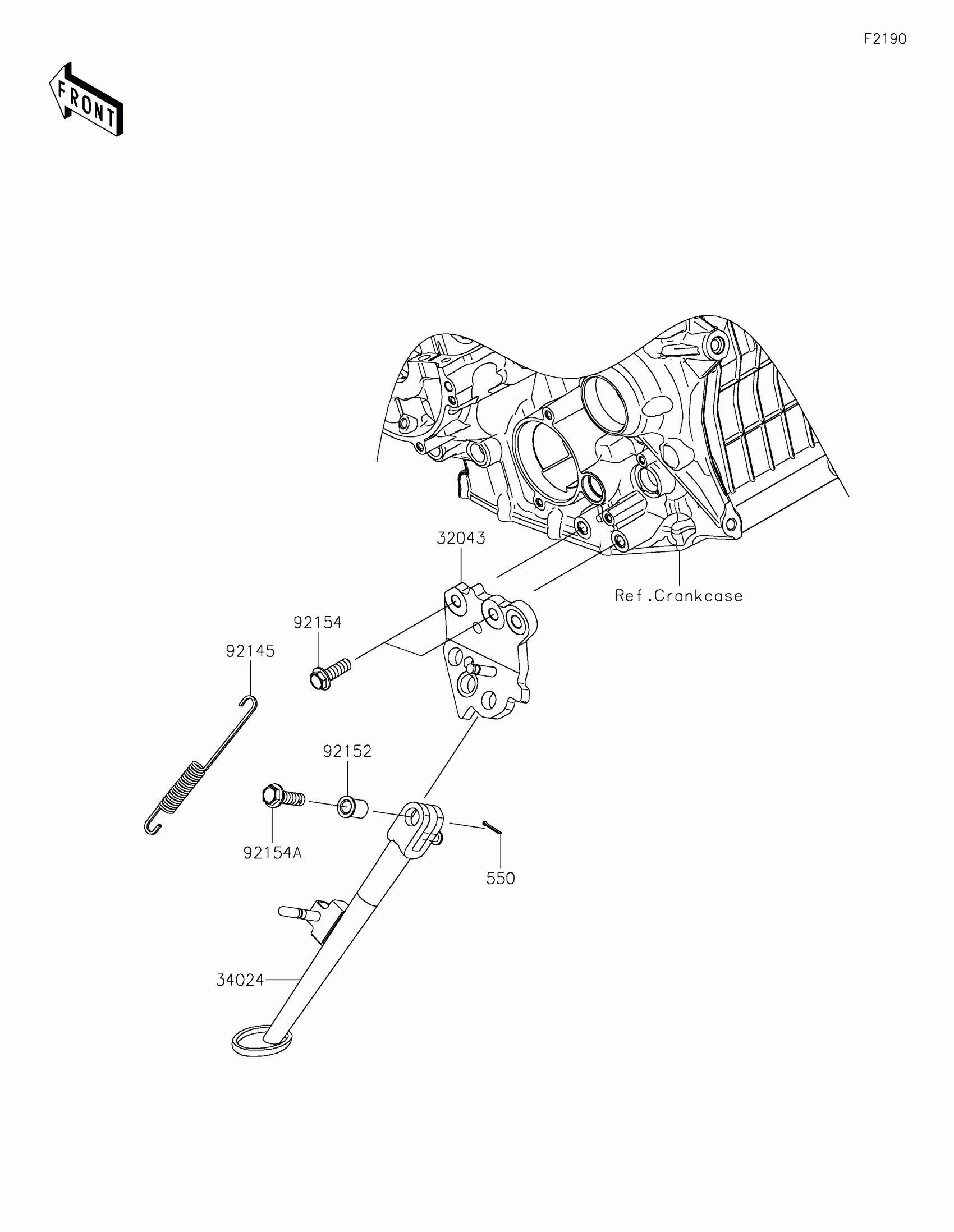

2021 Kawasaki Z H2 Se Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32043

BRACKET-STAND

32043-0658

1
Out of stock

34024

STAND-SIDE

34024-0164

1
Out of stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock

92145

SPRING,14X144

92145-1792

1
Out of stock

92152

COLLAR,10.2X15X20.1

92152-1828

1
Out of stock

92154

BOLT,FLANGED,10X30

92154-1645

1
Out of stock

92154A

BOLT,FLANGED,10X35,MEC

92154-2905

1
Out of stock
