2021 Kawasaki Z H2 Se Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2021 Kawasaki Z H2 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

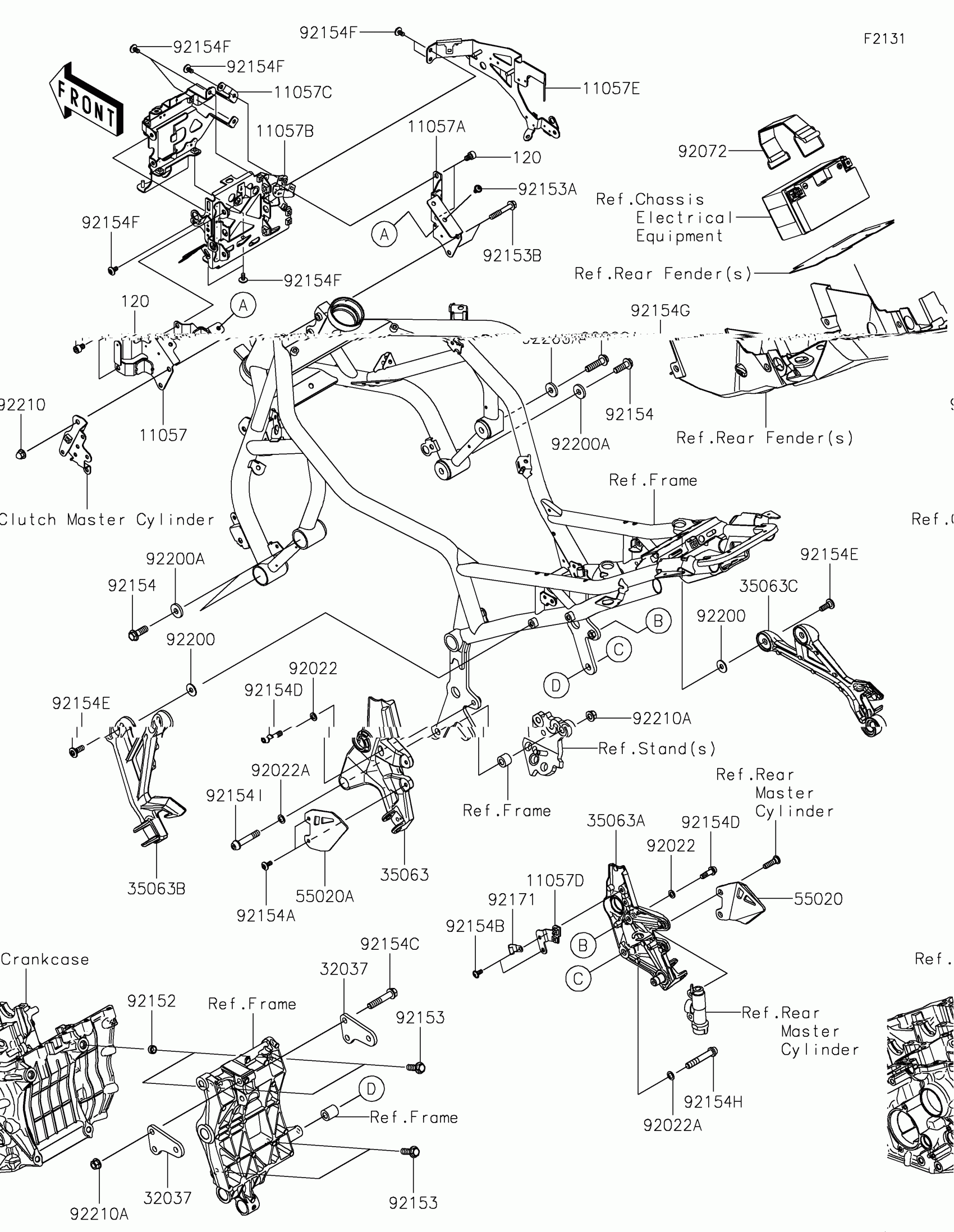

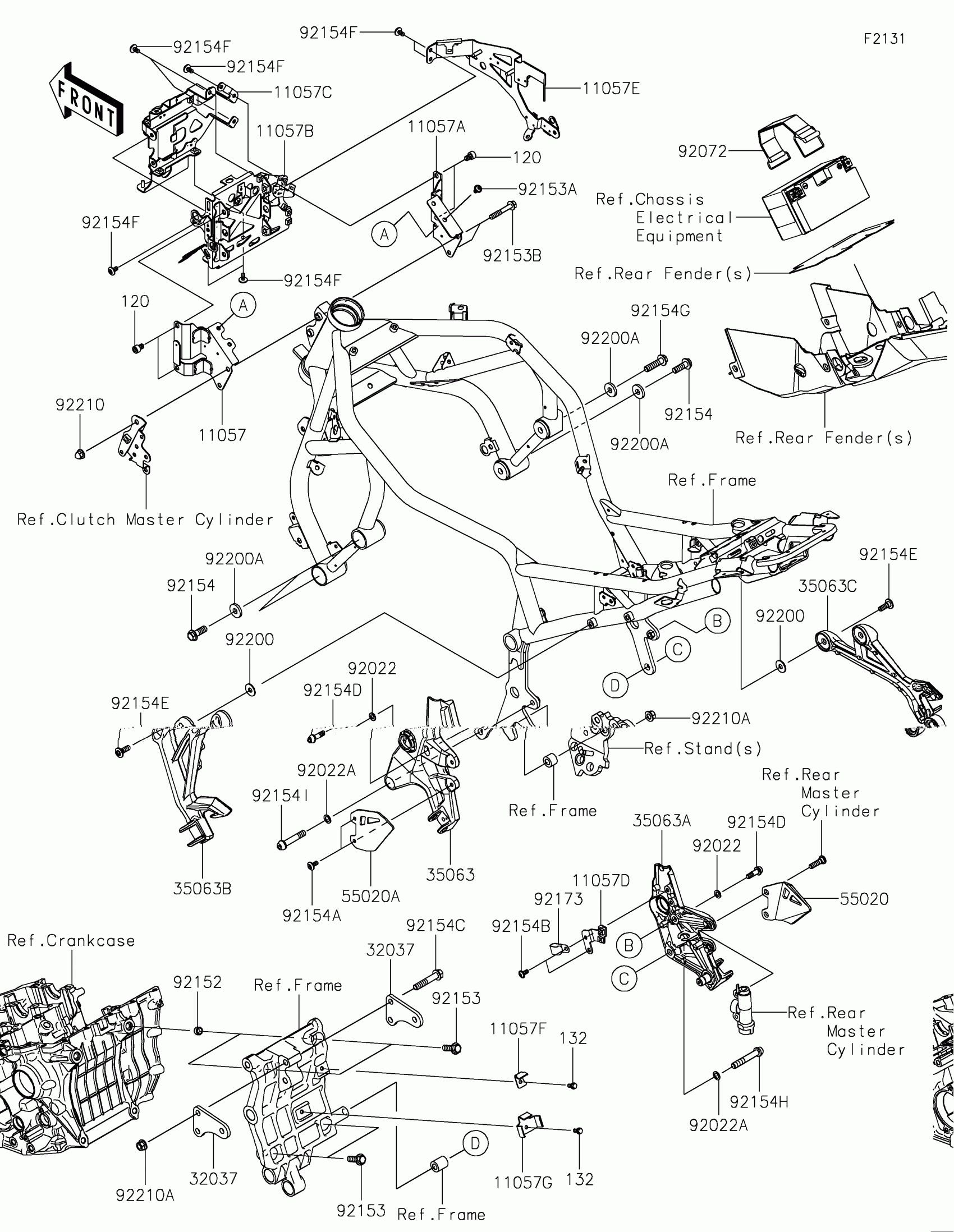

2021 Kawasaki Z H2 Se Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,HEAD LAMP,RR,LH

11057-2920

1
Out of stock

11057A

BRACKET,HEAD LAMP,RR,RH

11057-2921

1
Out of stock

11057B

BRACKET,HEAD LAMP,MID

11057-2922

1
Out of stock

11057C

BRACKET,HEAD LAMP,FR

11057-2923

1
Out of stock

11057D

BRACKET,RR RESERVOIR TANK

11057-2925

1
Out of stock

11057E

BRACKET,SHROUD,LH

11057-7039

1
Out of stock

120

BOLT-SOCKET,8X12

120CA0812

1
Out of stock

32037

BRACKET-SHOCKABSORBER

32037-0429

1
Out of stock

35063

STAY,STEP,FR,LH,F.S.BLACK

35063-1495-18R

1
Out of stock

35063A

STAY,STEP,FR,RH,F.S.BLACK

35063-1496-18R

1
Out of stock

35063B

STAY,STEP,RR,LH,F.S.BLACK

35063-1497-18R

1
Out of stock

35063C

STAY,STEP,RR,RH,F.S.BLACK

35063-1498-18R

1
Out of stock

55020

GUARD,FR STEP,RH

55020-1944

1
Out of stock

55020A

GUARD,FR STEP,LH

55020-2284

1
Out of stock

92022

WASHER,8.5X14.5X1.6

92022-1470

1
Out of stock

92022A

WASHER,10.2X16X1

92022-1829

1
Out of stock

92072

BAND,BATTERY

92072-0878

1
Out of stock

92152

COLLAR,DOWEL PIN

92152-0679

1
Out of stock

92153

BOLT,FLANGED,10X30

92153-0801

1
Out of stock

92153A

BOLT,SOCKET,6X12

92153-1617

1
Out of stock

92153B

BOLT,8X50

92153-7073

1
Out of stock

92154

BOLT,FLANGED,10X30

92154-0543

1
Out of stock

92154A

BOLT,SOCKET,6X14

92154-0745

1
Out of stock

92154B

BOLT,SOCKET,6X14

92154-0856

1
Out of stock

92154C

BOLT,FLANGED,10X54

92154-0903

1
Out of stock

92154D

BOLT,SOCKET,8X25

92154-1557

1
Out of stock

92154E

BOLT,SOCKET,8X23

92154-1901

1
Out of stock

92154F

BOLT,SOCKET,6X12

92154-2706

1
Out of stock

92154G

BOLT,FLANGED,10X40

92154-2924

1
Out of stock

92154H

BOLT,SOCKET,10X60

92154-4044

1
Out of stock

92154I

BOLT,SOCKET,10X52

92154-4045

1
Out of stock

92171

CLAMP

92171-0813

1
Out of stock

92200

WASHER,8.5X23X1.6

92200-1936

1
Out of stock

92200A

WASHER,10.5X26X4

92200-3798

1
Out of stock

92210

NUT,CAP,8MM

92210-1132

1
Out of stock

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock
