2021 Kawasaki Z H2 Se Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2021 Kawasaki Z H2 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

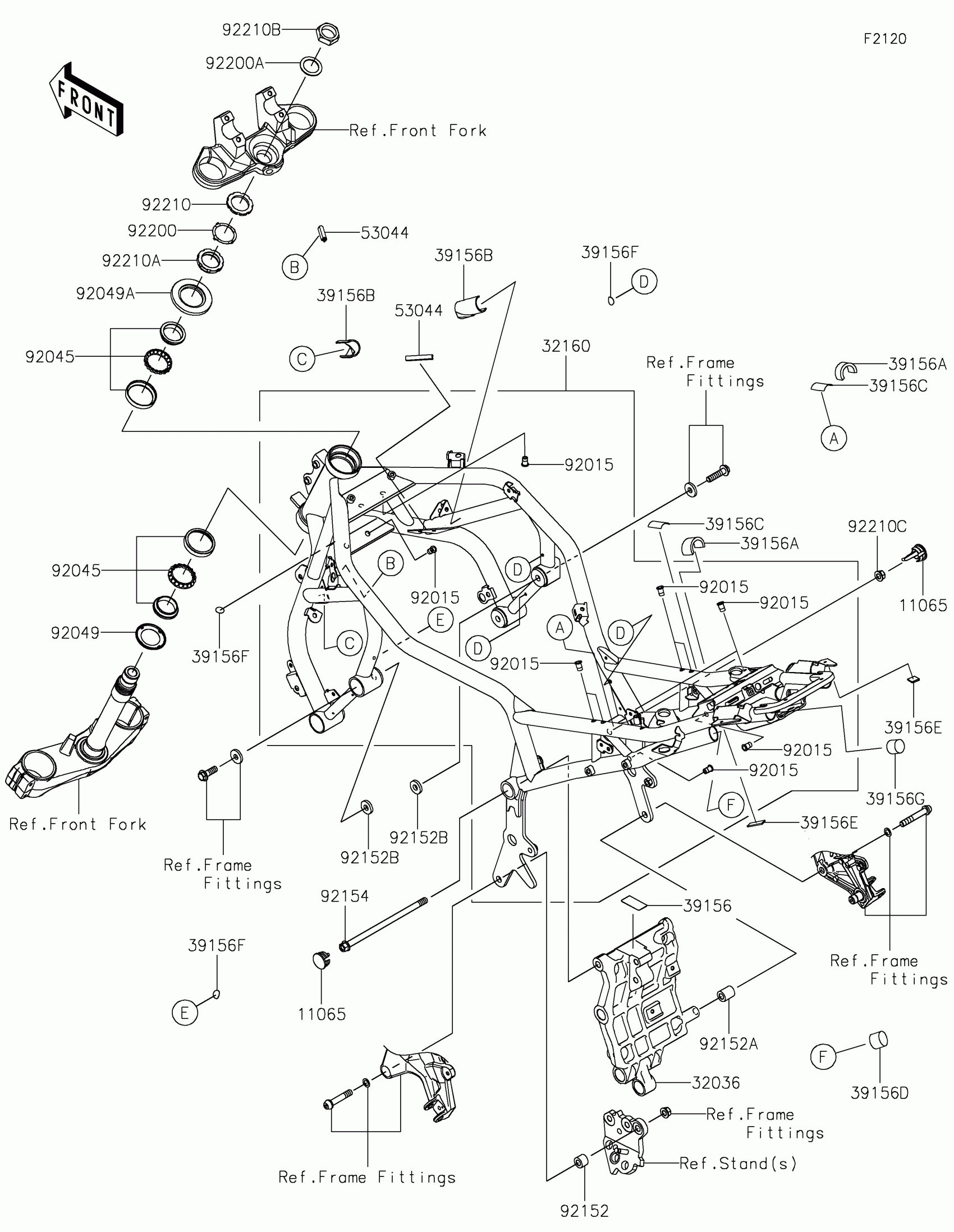

2021 Kawasaki Z H2 Se Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,27.4MM

11065-0987

1
Out of stock

32036

1

$559.94

In stock

32160

FRAME-COMP,G.B.GREEN

32160-1914-46Y

1

$4,238.61

In stock

39156

PAD,22X45

39156-1896

1

$7.24

In stock

39156A

PAD,20X50X5

39156-2191

1

$1.17

In stock

39156B

PAD,50X50X2

39156-2235

1
Out of stock

39156C

PAD,35X25X0.2

39156-2449

1

$1.34

In stock

39156D

PAD,27X20

39156-2500

1

$4.17

In stock

39156E

PAD,30X14X2

39156-2568

1

$1.12

In stock

39156F

PAD

39156-2747

1

$3.53

In stock

39156G

PAD,24.2X20

39156-2777

1

$2.46

In stock

53044

TRIM,L=48

53044-1324

1

$3.25

In stock

92015

NUT,POP,6MM,L=15

92015-1791

1

$3.72

In stock

92045

1

$41.48

In stock

92049

SEAL-OIL,DS35X55X4

92049-0022

1
Out of stock

92049A

SEAL-OIL,XMH 43 75 6.4J

92049-1382

1
Out of stock

92152

COLLAR,10.2X20X14.7

92152-2642

1

$10.29

In stock

92152A

COLLAR,10.2X20X23.7

92152-2643

1

$11.61

In stock

92152B

COLLAR,10.5X25X4.5

92152-2644

1

$8.97

In stock

92154

BOLT,FLANGED,10X200

92154-1660

1

$32.58

In stock

92200

WASHER

92200-0036

1
Out of stock

92200A

WASHER,28.5X40X1.6

92200-0595

1
Out of stock

92210

NUT,35MM

92210-0095

1
Out of stock

92210A

NUT,35MM

92210-0096

1
Out of stock

92210B

NUT,28MM

92210-0209

1
Out of stock

92210C

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock
