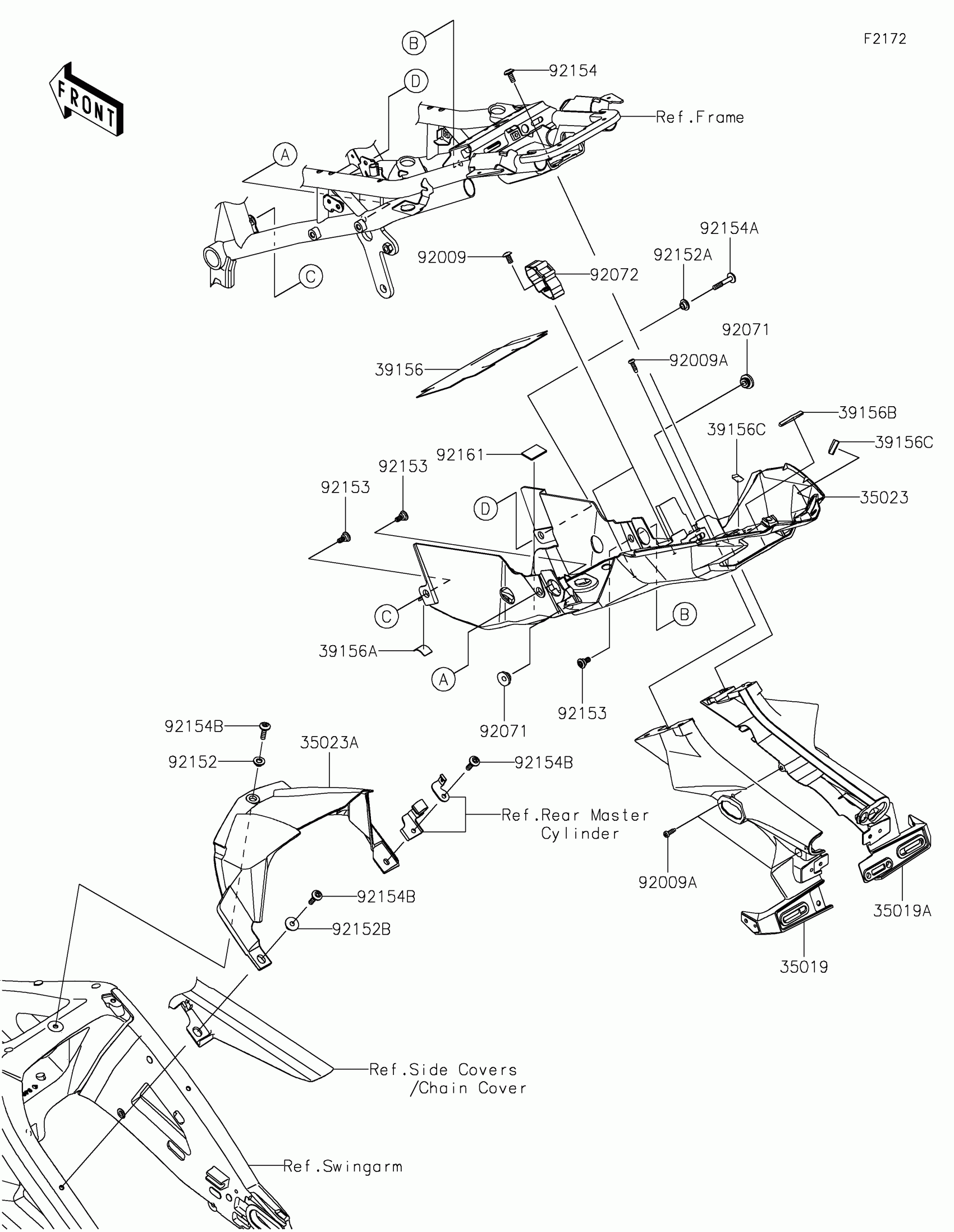

Kawasaki Z H2 SE Rear Fender(s) Diagram

Description

Price

35019

FLAP,RR,LH

35019-0677

$38.56

35019A

FLAP,RR,RH

35019-0678

$41.71

35023

FENDER-REAR

35023-0468

$105.05

35023A

FENDER-REAR,HUGGER

35023-0469

$50.42

39156

PAD,195X115X1

39156-1884

$24.20

39156A

PAD,15X25X1

39156-2119

$1.59

39156B

PAD,4X44X5

39156-2179

$0.69

39156C

PAD,10X15X4

39156-2180

$0.50

92009

SCREW,6X12

92009-1480

$2.23

92009A

SCREW,TAPPING,5X16

92009-1984

$1.82

92071

GROMMET,20X24X7.5

92071-0766

$1.09

92072

BAND,TOOL CASE

92072-1219

$20.61

92152

COLLAR,6.5X10X6.2

92152-2152

$2.64

92152A

COLLAR,6.5X10X5.9

92152-2486

$2.38

92152B

COLLAR

92152-2620

$11.22

92153

BOLT,SOCKET,6MM

92153-1956

$2.98

92154

BOLT,SOCKET,6X14

92154-0745

$1.66

92154A

BOLT,SOCKET,6X34

92154-1627

$2.05

92154B

BOLT,SOCKET,6X22

92154-1810

$2.95

92161

DAMPER,30X20X2

92161-0833

$1.44
