Description

Price

11057

BRACKET

11057-2913

$5.47

130

BOLT-FLANGED,6X12

130CA0612

$3.02

130A

BOLT-FLANGED,6X14

130CA0614

$3.14

32046

BRACKET-SEAT

32046-0452

$37.72

53003

LEATHER,FR SEAT,BLACK+GRN

53003-0543-64R

$103.38

53003A

LEATHER,RR SEAT,BLACK+GRN+BLK

53003-0544-64S

$159.44

53066

SEAT-ASSY,RR,BLACK+GRN+BLK

53066-0707-64S

$403.53

53066A

SEAT-ASSY,FR,BLACK+GRN

53066-0824-64R

$261.22

92027

COLLAR,L=4.6

92027-1168

$3.81

92071

GROMMET

92071-0038

$3.49

92161

DAMPER,SEAT,10X25X8

92161-0095

$7.80

92161A

DAMPER,8X20X8

92161-0223

$3.74

92161B

DAMPER,SEAT

92161-2280

$5.08

92161C

DAMPER

92161-2324

$1.56

92200

WASHER,6.5X20X1.6

92200-1569

$1.20

92210

NUT

92210-0401

$2.95

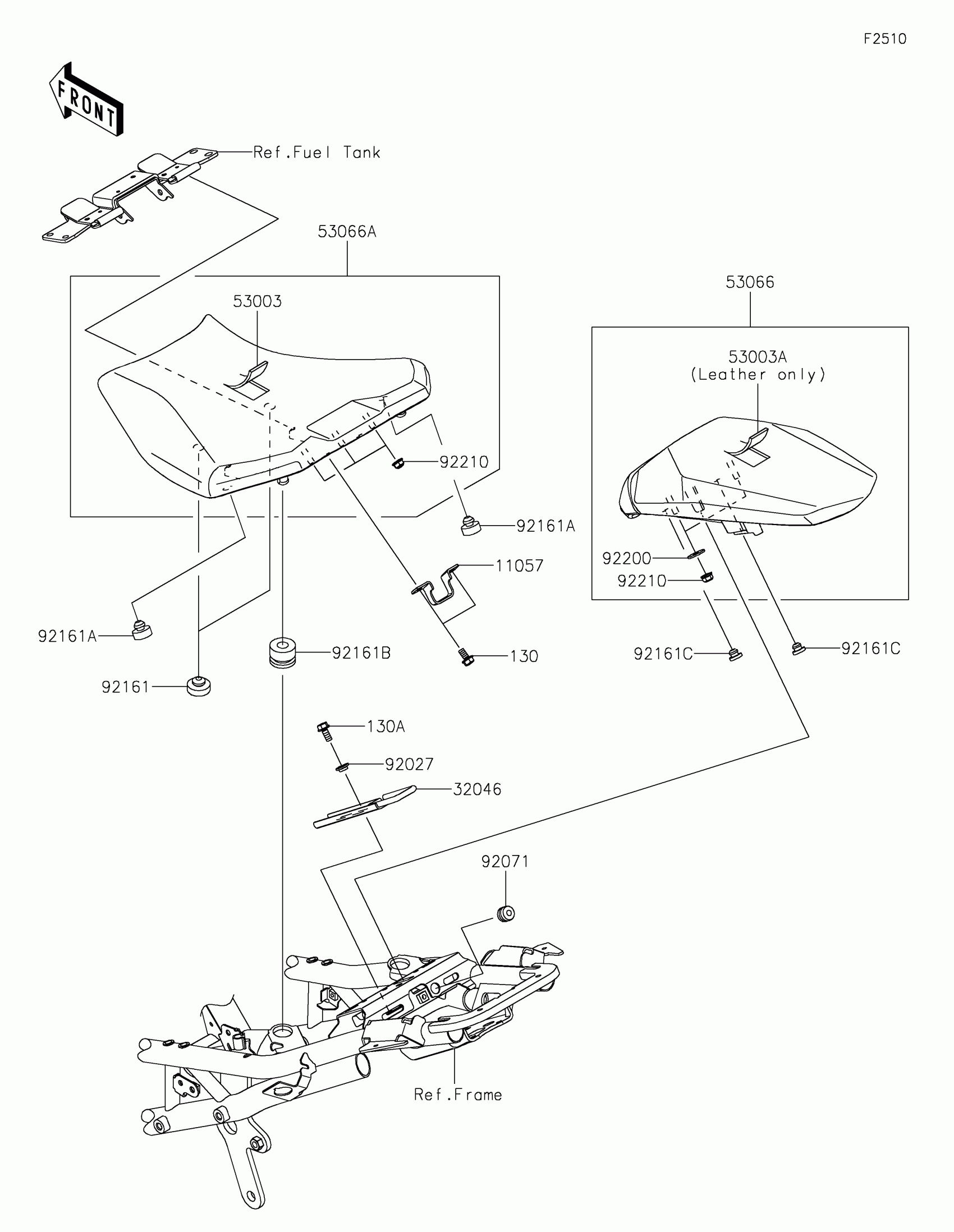

Kawasaki Z H2 SE Seat Diagram
