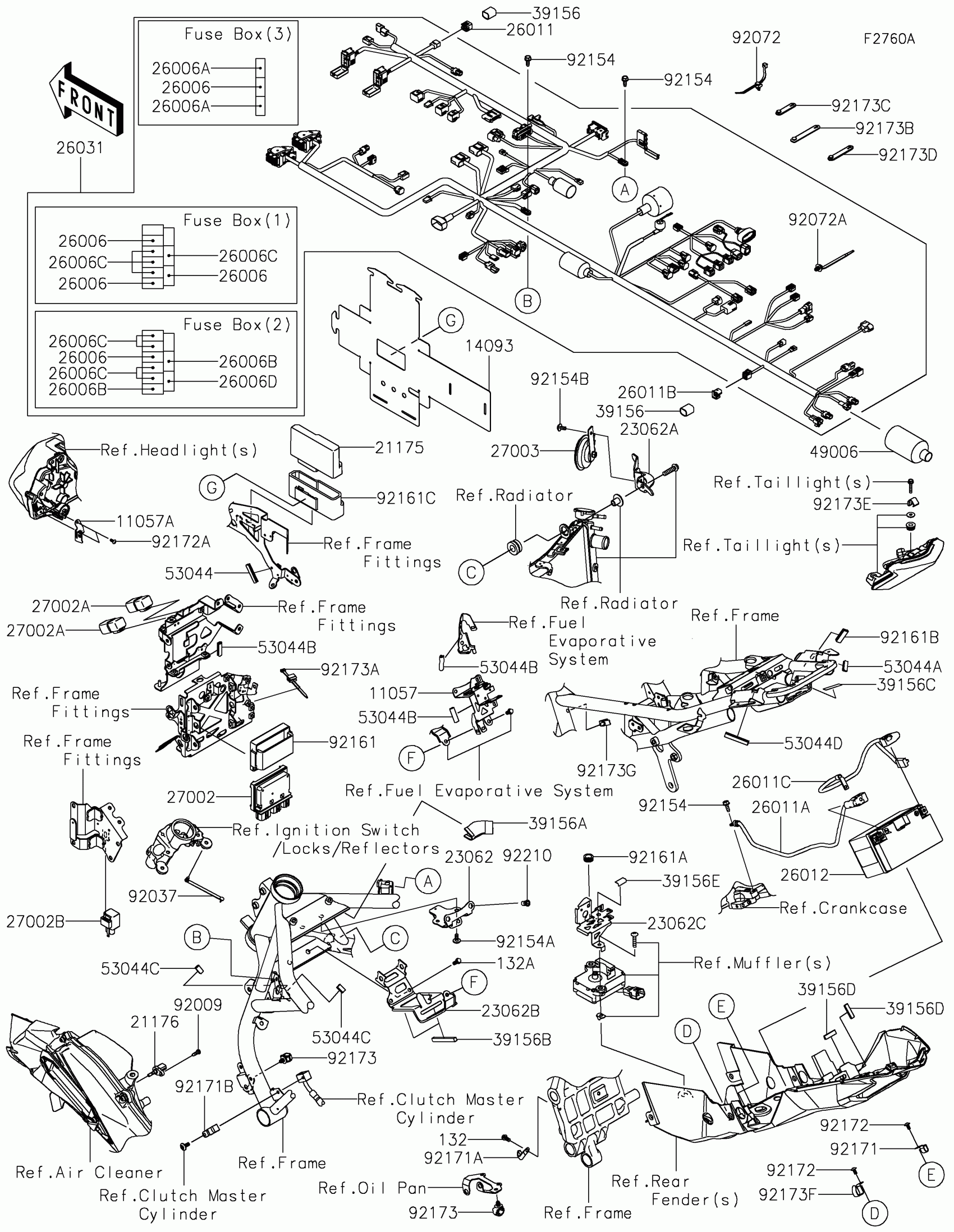

2024 Kawasaki Z H2 SE Chassis Electrical Equipment Diagram
Find the part on the Chassis Electrical Equipment diagram for your 2024 Kawasaki Z H2 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
11057
BRACKET,HARNESS CONNECTOR
11057-2939
11057A
BRACKET,FR SIGNAL CONNECTOR
11057-4159
14093
COVER,KECS ECU
14093-1216
21175
CONTROL UNIT-ELECTRONIC,KECS
21175-1670
21176
SENSOR,AIR TEMPERATURE
21176-0048
23062
BRACKET-COMP
23062-1272
23062A
BRACKET-COMP,HORN
23062-1290
23062B
BRACKET-COMP,CANISTER
23062-1293
23062C
BRACKET-COMP
23062-1352
26006
FUSE,MINI BLADE,15A,BLUE
26006-0001
26006A
FUSE,MINI BLADE,25A,NATURAL
26006-0020
26006B
FUSE,MINI BLADE,2A,GRAY
26006-0052
26006C
FUSE,MINI BLADE,10A,RED
26006-1078
26006D
FUSE,MINI BLADE,30A,GREEN
26006-1080
26011
WIRE-LEAD,CONNECTOR COVER
26011-0275
26011A
WIRE-LEAD,BATTERY(-)
26011-0908
26011B
WIRE-LEAD,DIAG CONNECTOR
26011-1901
26011C
WIRE-LEAD,BATTERY(+)
26011-1906
26012
BATTERY,YTZ10S,12V 8.6AH
26012-0564
26031
HARNESS,MAIN
26031-3781
27002
RELAY-ASSY
27002-0050
27002A
RELAY-ASSY
27002-1086
27002B
RELAY-ASSY,SIGNAL LAMP
27002-1097
27003
HORN
27003-0156
39156A
PAD,50X50X2
39156-2235
39156B
PAD,7X70X7
39156-2269
39156C
PAD,35X25X0.2
39156-2449
39156D
PAD,30X15X1
39156-2495
39156E
PAD,22X13X0.2
39156-2591
49006
BOOT
49006-0573
53044B
TRIM,9X6.5X30
53044-0632
53044C
TRIM,L=16
53044-0657
53044D
TRIM,L=50
53044-0699
92009
SCREW,TAPPING,5X16
92009-1984
92037
CLAMP,SPEED,L=80.5
92037-1903
92072
BAND
92072-0066
92072A
BAND,OS170-FT7(BLACK)
92072-1414
92154
BOLT,FLANGED,6X16
92154-0551
92154A
BOLT,SOCKET,6X14
92154-0907
92154B
BOLT,SOCKET,6X12
92154-4100
92161
DAMPER,RELAY BOX
92161-0203
92161A
DAMPER
92161-0570
92161B
DAMPER,30X20X2
92161-0833
92161C
DAMPER,ECU
92161-2137
92171
CLAMP
92171-0766
92171A
CLAMP
92171-0813
92171B
CLAMP
92171-0926
92172
SCREW,TAPPING,5X10
92172-0262
92172A
SCREW,CROS,4X10
92172-1248
92173
CLAMP,12MM DIA.
92173-0736
92173A
CLAMP
92173-0791
92173B
CLAMP
92173-2194
92173C
CLAMP
92173-2198
92173D
CLAMP
92173-2199
92173E
CLAMP
92173-2303
92173F
CLAMP
92173-2308
92173G
CLAMP
92173-2345
92210
NUT,POP,6MM,L=15
92210-1397
